2576960000 - 0.3m Durable 24V Cable with Black Sheathing
2576960000 - 0.3m Durable 24V Cable with Black Sheathing
SKU: SKU: 2576960000 Download PDF
- 2576960000 - 0.3m Durable 24V Cable with Black Sheathing
- 2576960000 - 0.3m Durable 24V Cable with Black Sheathing
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

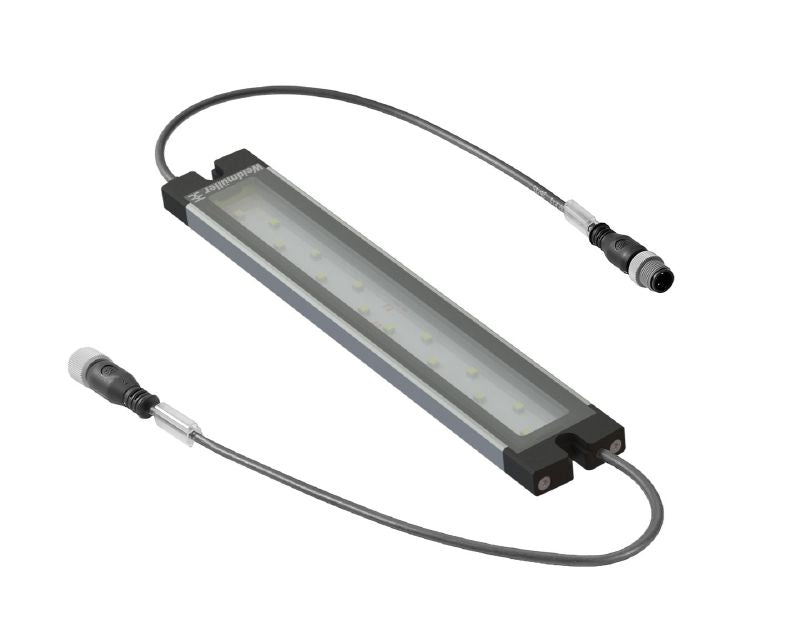

Introducing the WIL-LWXXXX-6500D024-240SXX03BM12GM12G, a highly efficient and pre-assembled cable designed for diverse applications Measuring 03 meters in length, this cable comes equipped with connectors specifically meant for attaching LED modules Adhering to rigid RoHS and UL standards, it guarantees both safety and reliable performance With its durable black PU sheathing and hard anodised aluminium casing, this cable is built to last.
Operating at 24V DC and boasting a current rating of 031A, it serves as an excellent choice for powering your LED installations.
Features and Benefits:
•Dimmable functionality.
•LED module attachable.
•Rated for NEC Class 2 power supply use.
•Impact resistance IK05.
•Protection degree IP67.
•Long operating life of 60,000 hours.
Specifications:
| Cable Material | PUR |
| Cable length | 0.3 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Shape of the LED module | Rectangular |
| Number of LEDs | 14 |
| Light colour (CCT) | 6500K |
| Luminosity | 3,470 cd |
| Illumination level | 291 lux |
| Emitting angle | 40 ° |
| Tightening torque | 0.8 Nm |
| Type of mounting | Screw mounting |

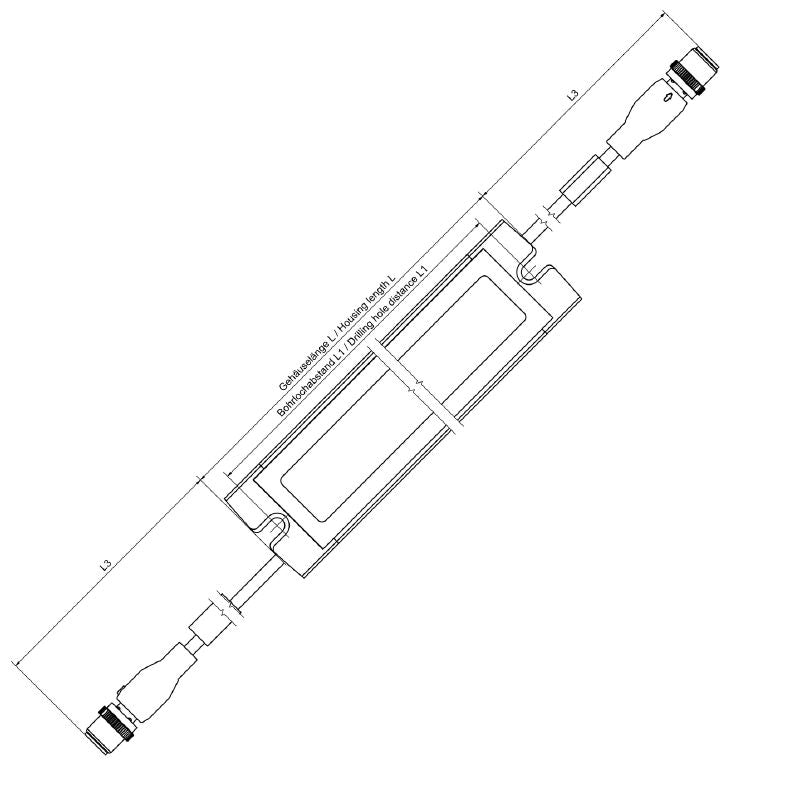

| Drill hole spacing | 225 mm |
| Environmental Product Compliance | Compliant with exemption |
| RoHS Exemption | 6c |
| REACH SVHC | Lead 7439-92-1 |
