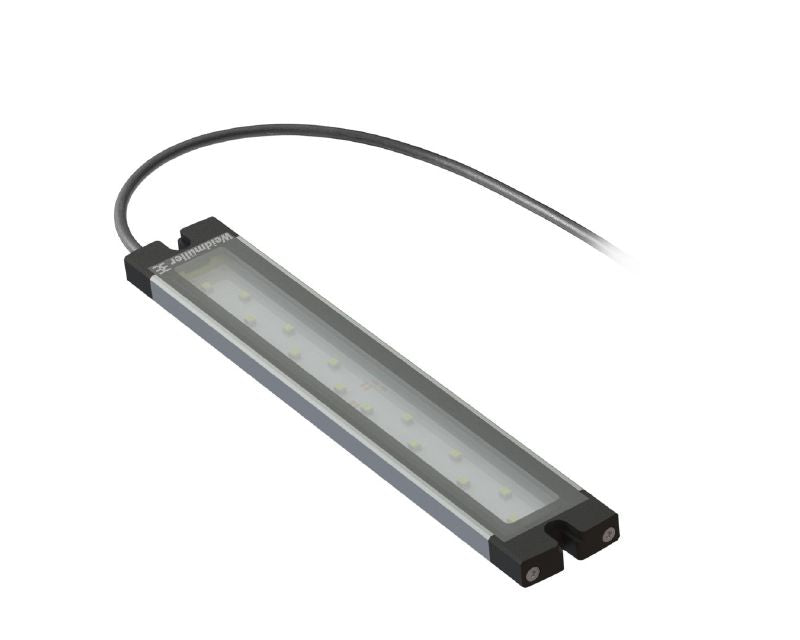

2527950000 - 10m LED Module, 24V, IP67, 6500K Light
2527950000 - 10m LED Module, 24V, IP67, 6500K Light
SKU: SKU: 2527950000 Download PDF
- 2527950000 - 10m LED Module, 24V, IP67, 6500K Light
- 2527950000 - 10m LED Module, 24V, IP67, 6500K Light
Couldn't load pickup availability
Description:
Illuminate your space with this advanced LED module, measuring 10 meters in length and operating on a 24 V DC power supply The module is equipped with a robust black PUR cable, featuring a core cross-section of 034 mm² for reliable performance It comes with a pre-wired open cable end featuring two poles, ready for easy installation without coding Experience brilliant illumination with a luminosity of 3,470 cd, producing a light current of 886 lm at a striking color temperature of 6500K, achieving an illumination of 291 lux.
Engineered for durability, this module is designed for screw mounting and boasts an IK05 impact resistance rating, along with IP67 protection for exceptional resilience in various environments.
Features and Benefits:
•Dimmable functionality.
•Operating life spans up to 60,000 hours.
•Screw mounting design.
•Efficient lighting with a luminosity of 3,470 cd.
•LED module shape is rectangular.
•Easy installation with pre-assembled cable.
Specifications:
| Cable Material | PUR |
| Sheathing colour | black |
| Housing main material | hard anodised aluminium |
| Cable length | 10 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Number of poles | 2 |
| Connection thread | without |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Number of LEDs | 14 |
| Light current | 886 lm |
| Emitting angle | 40 ° |
| Impact resistance | IK05 |
| Protection degree | IP67 |
| Material of LED cover | ESG |
| Material of end caps | PBT |
