2436340000 - 0.3m Red LED Module, UL Certified, IP67, 60,000 Hours Life
2436340000 - 0.3m Red LED Module, UL Certified, IP67, 60,000 Hours Life
SKU: SKU: 2436340000 Download PDF
- 2436340000 - 0.3m Red LED Module, UL Certified, IP67, 60,000 Hours Life
- 2436340000 - 0.3m Red LED Module, UL Certified, IP67, 60,000 Hours Life
Couldn't load pickup availability
Description:

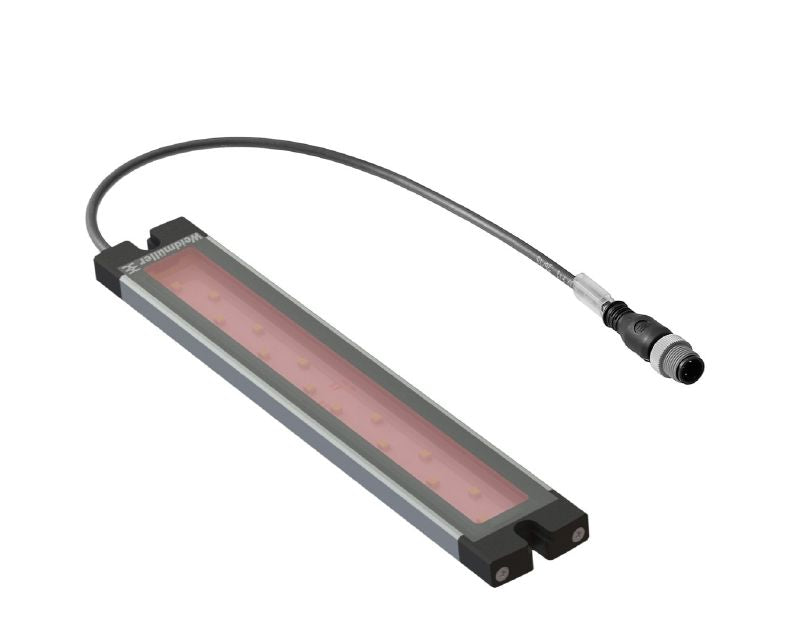

Introducing a versatile LED module that meets RoHS standards and boasts UL certification (number E354496) Designed to operate within a temperature range of -20°C to 60°C, this module features a robust black PUR cable that measures 03 meters in length, with a core cross-section of 034 mm² It is equipped with 14 vibrant red LEDs, delivering a brightness output of 208 lumens, and has an impressive longevity of up to 60,000 hours.
For easy installation, the module is made for screw mounting and offers excellent durability with an impact resistance rating of IK05 and an IP67 protection degree, ensuring reliability in various environments.
Features and Benefits:
•Dimmable functionality.
•Pre-assembled cable connection type.
•Recommended NEC Class 2 power supply usage.
•LED module shape is rectangular.
•Screw mounting type.
Specifications:
| Cable Material | PUR |
| Sheathing colour | black |
| Housing main material | hard anodised aluminium |
| Rated voltage | 24 V DC |
| Rated current | 0.382 A |
| Power | 9.2 W |
| Number of poles | 4 |
| Coding | A-coded |
| Connection thread | M12 |
| Tightening torque | 0.8 Nm |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Light colour (CCT) | Red |
| Emitting angle | 40 ° |
| Illumination level | 31 lux |
| Material of LED cover | ESG |
| Threaded ring material | PA |
| Material of end caps | PBT |
| Impact resistance | IK05 |
| Protection degree | IP67 |
| Operating life | 60,000 h |
