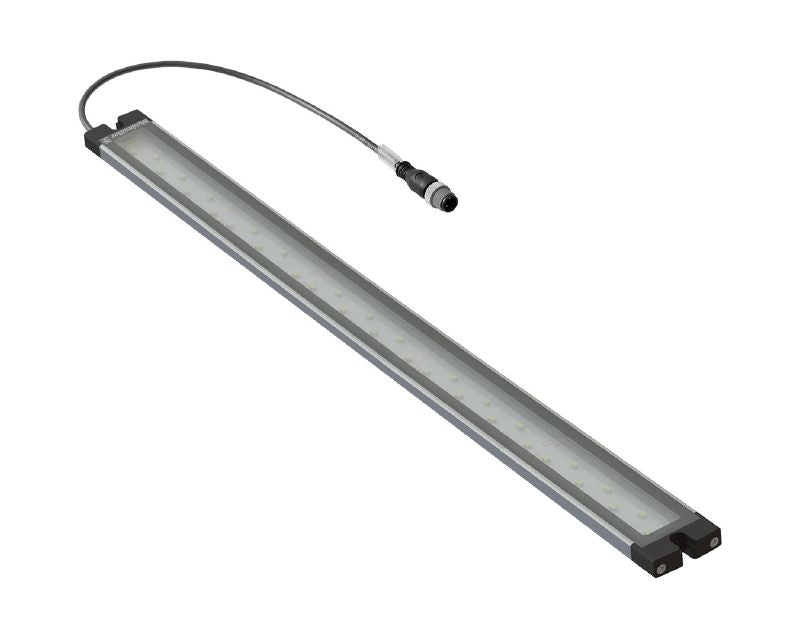

2732860000 - 0.3m Black PUR LED Light Panel, 35 LEDs, 4000K
2732860000 - 0.3m Black PUR LED Light Panel, 35 LEDs, 4000K
SKU: SKU: 2732860000 Download PDF
- 2732860000 - 0.3m Black PUR LED Light Panel, 35 LEDs, 4000K
- 2732860000 - 0.3m Black PUR LED Light Panel, 35 LEDs, 4000K
Couldn't load pickup availability
Description:
Experience reliable performance with this RoHS-compliant product that also boasts UL certification Measuring 03 meters in total length and constructed from durable PUR material, it features an elegant black sheathing The dimensions consist of a depth of 40 mm, height of 8 mm, and width of 555 mm, while its net weight is 4974 grams This product operates efficiently within a temperature range of -20 to 60°C.
Equipped with 35 neutral white LEDs that deliver illumination at 4000K, it produces an impressive brightness of 705 lux With a long operating life of 60,000 hours and an IP67 rating, this product ensures both longevity and protection from harsh conditions.
Features and Benefits:
•Dimmable functionality.
•Rated voltage of 24 V DC.
•Rated current of 0.77 A.
•Efficiency class compliant with EU Directive No. 874/2012.
•Impact resistance rated at IK05.
•Shape of the LED module is rectangular.

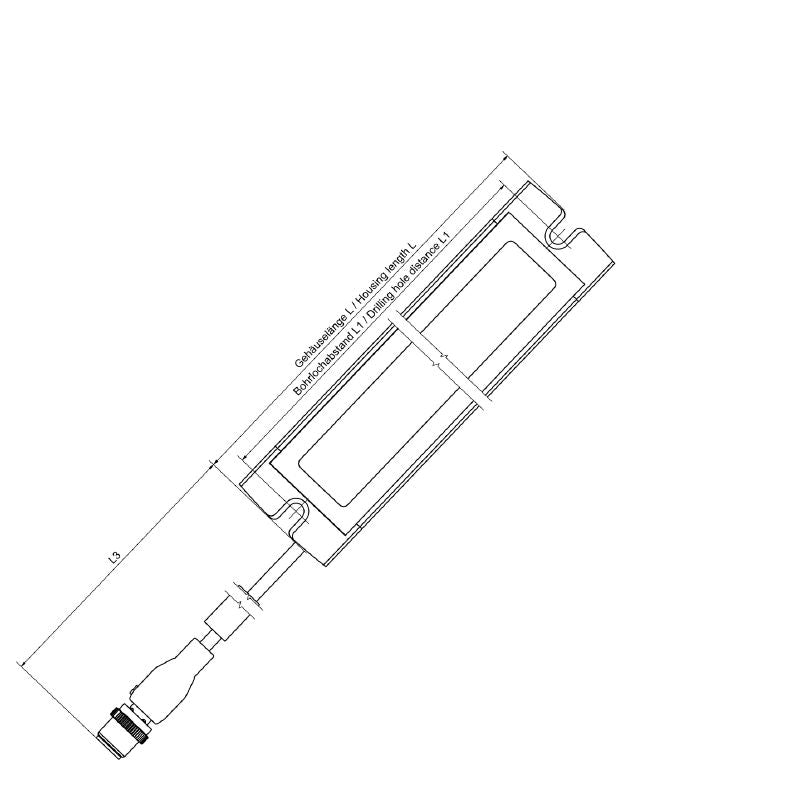

•Screw mounting type with a drill hole spacing of 540 mm.
Specifications:
| Depth: | 40 mm |
| Height: | 8 mm |
| Width: | 555 mm |
| Cable length: | 0.3 m |
| Core cross-section: | 0.34 mm² |
| Version: | pin, straight |
| Number of poles: | 2 |
| Coding: | A-coded |
| Connection thread: | M12 |
| Tightening torque: | 0.8 Nm |
| Luminosity: | 650 cd |
| Light current: | 2,265 lm |
| Emitting angle: | 40° |
| Recommended class according to UL for use of an power supply: | NEC Class 2 |
| Operating life: | 60,000 h |
| Protection degree: | IP67 |
| Material of LED cover: | ESG |
| Housing main material: | hard anodised aluminium |
