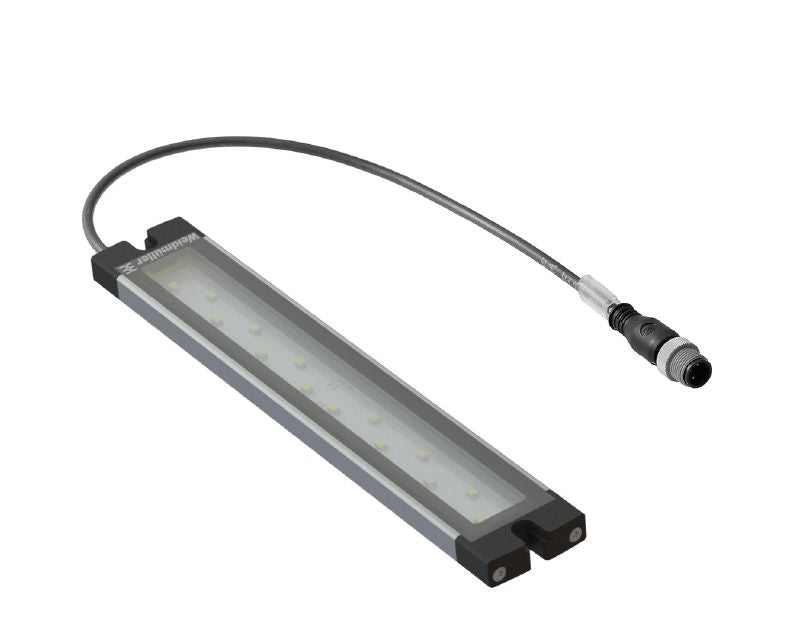

2669240000 - 1.5m LED Module, 24V, 14 LEDs, 6500K White Light
2669240000 - 1.5m LED Module, 24V, 14 LEDs, 6500K White Light
SKU: SKU: 2669240000 Download PDF
- 2669240000 - 1.5m LED Module, 24V, 14 LEDs, 6500K White Light
- 2669240000 - 1.5m LED Module, 24V, 14 LEDs, 6500K White Light
Couldn't load pickup availability
Description:
Introducing a pre-assembled LED module cable, optimized for diverse electronic applications Operating at a voltage of 24 V DC with a current of 031 A, this component consumes just 75 W of power Built to withstand environmental temperatures between -20 and 60°C, it boasts a sturdy construction made from hard anodised aluminium for long-lasting performance The black PUR sheathing offers both flexibility and exceptional resistance to wear.
This module supports 14 LEDs that emit bright white light at a color temperature of 6500K, producing a luminous intensity of 3,470 cd and an illumination level of 291 lux—perfect for a range of lighting requirements.
Features and Benefits:
•Dimmable feature for adjustable lighting.
•Compact design suitable for tight spaces.
•Rated for IP67, ensuring water and dust protection.
•Impact resistance rated at IK05.
•Long operational life of up to 60,000 hours.
Specifications:
| Cable Material | PUR |
| Sheathing color | black |
| Housing main material | hard anodised aluminium |
| Cable length | 1.5 m |
| Core cross-section | 0.34 mm² |
| Number of poles | 2 |
| Connection thread | M12 |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 14 |
| Light color (CCT) | 6500K |
| Luminosity | 3,470 cd |
| Light current | 886 lm |
| Emitting angle | 40° |
| Illumination level | 291 lux |
| Operating life | 60,000 h |
| Type of mounting | Screw mounting |

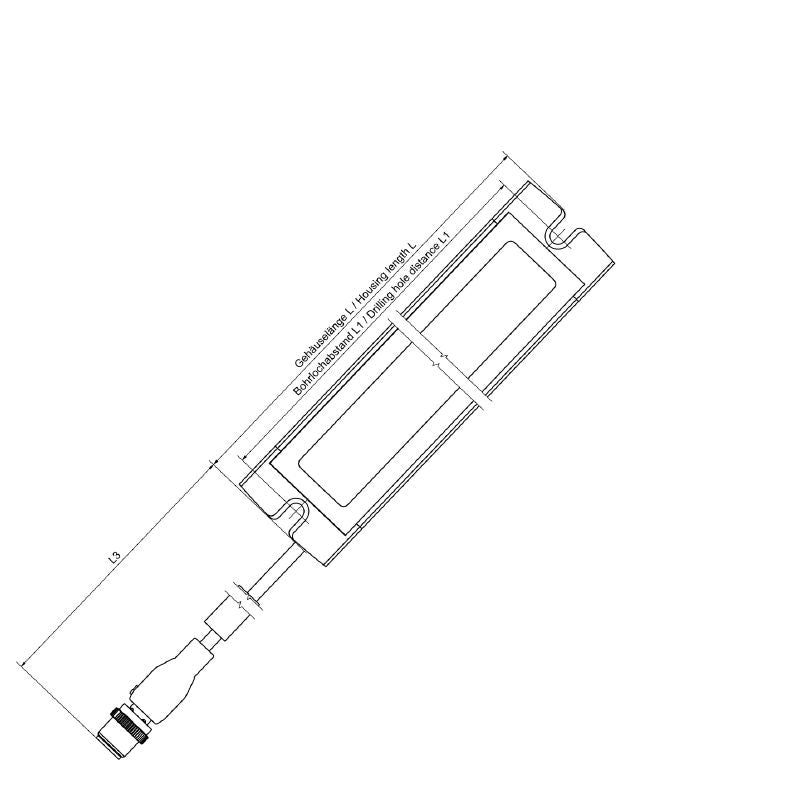

| Drill hole spacing | 225 mm |
| Protection degree | IP67 |
| Efficiency class | F |
