2899380000 - UL Certified LED Module 715mm, Dimmable, 24V DC

Description:

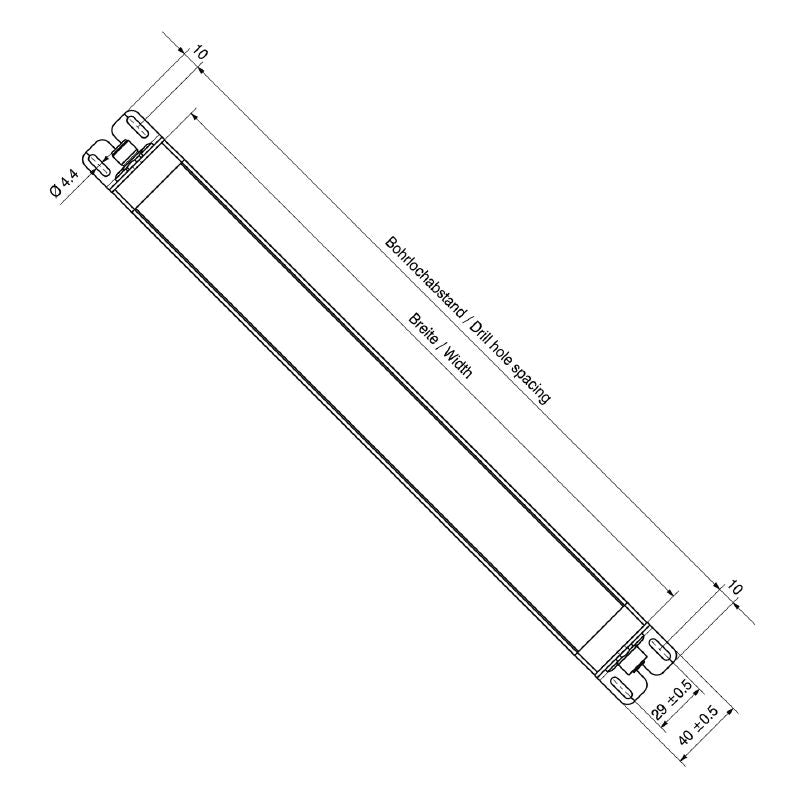

Introducing the WIL-LXXXX-RXPS-5700-X715-M12D-X0, a highly compliant item certified to RoHS standards and UL listings With a general order number of 2899380000 and a GTIN of 4064675906438, this product comes with dimensions of 715 mm in width (2815 inches), 42 mm in height (1654 inches), and 40 mm in depth (1575 inches), weighing in at 1,019 grams This versatile item operates efficiently within a temperature range of -20 to 45°C and adheres to specific RoHS exemptions, particularly regarding regulation 6c.

It’s important to note that lead is recognized as a REACH SVHC Designed for flexibility, the LED module supports connections for up to four pieces and features a straight pin/socket type with A-coding It offers a tightening torque of 08 Nm, with clear wiring specifications provided for control and ground functions Operating at a rated voltage of 24 V DC and a current of 7625 mA, it delivers a powerful output of 18.

3 W, complete with dimming capabilities for customized lighting solutions.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Attachable LED module allows customization with a maximum of 4 pieces.

•Dimmable functionality enhances user experience.

•IP67 protection degree ensures durability in various environments.

•Long operating life of up to 60,000 hours.

Specifications:
