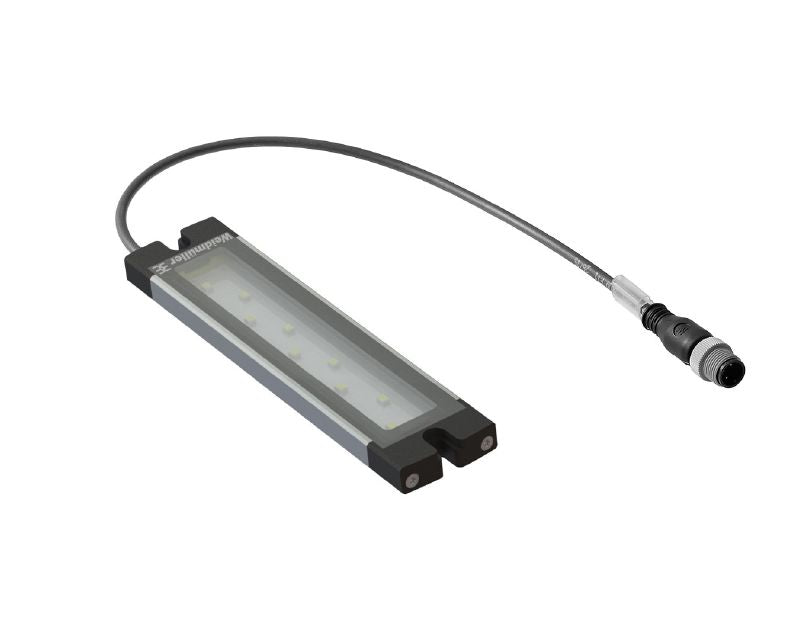

2821260000 - 0.3m LED Module with 415 Lumens, 60,000 Hour Lifespan

2821260000 - 0.3m LED Module with 415 Lumens, 60,000 Hour Lifespan

SKU: SKU: 2821260000 Download PDF

Variant:
  • 2821260000 - 0.3m LED Module with 415 Lumens, 60,000 Hour Lifespan
Regular price Now $68.20
Regular price BEFORE   $0.00 Sale price Now $68.20
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Illuminate your space with the WIL-LWXXXX-2700D024-145SXX03BM12G LED module, boasting a compact length of 03 meters Engineered to perform in temperatures ranging from -20 to 60°C, this module is constructed from hard anodised aluminium for its robust housing, while the LED cover is crafted from ESG It features seven LEDs that emit a cozy warm white light at 2700K, offering a luminous output of 415 lumens.

With a remarkable lifespan of 60,000 hours, it's a smart choice for long-term lighting solutions.

Features and Benefits:

    •Dimmable function.

    •Protection degree IP67 ensures resistant to dust and water.

    •Impact resistance rated at IK05.

    •Pre-assembled cable type connection for ease of installation.

    •Screw mounting type ensuring secure installation.

    •Suitable for NEC Class 2 power supply.

Specifications:

 Cable Material PUR
 Sheathing colour black
 Cable length 0.3 m
 Core cross-section 0.34 mm²
 Rated voltage 24 V DC
 Rated current 0.162 A
 Power 3.9 W
 Number of poles 2
 Light colour (CCT) 2700K
 Light current 415 lm
 Emitting angle 40 °
 Illumination level 138 lux
 Operating life 60,000 h

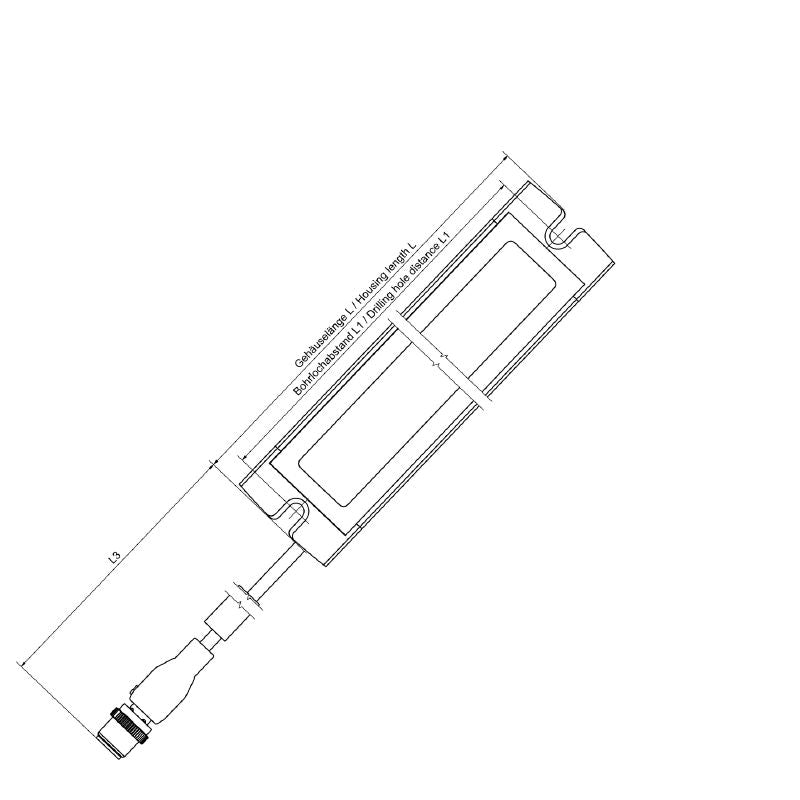

 Drill hole spacing 130 mm
 Electronic equipment on rolling stock No
 Shape of the LED module Rectangular
 Tightening torque 0.8 Nm
 Wiring Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue)
 Material of end caps PBT
 Threaded ring material PA
