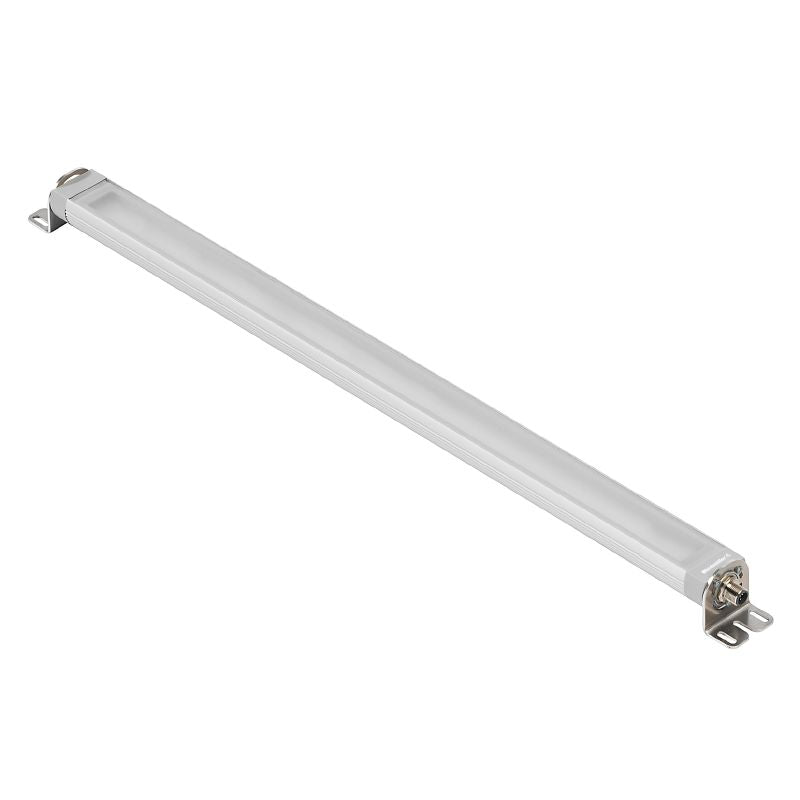

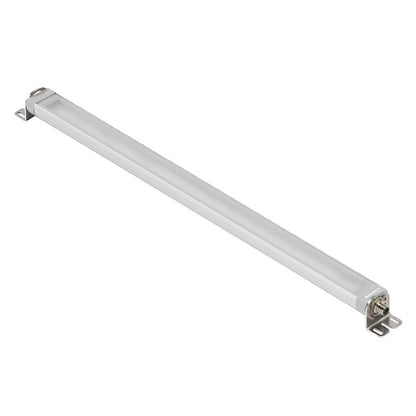

2899370000 - RoHS Compliant 715mm x 42mm Equipment with UL Approval
2899370000 - RoHS Compliant 715mm x 42mm Equipment with UL Approval
SKU: SKU: 2899370000 Download PDF
- 2899370000 - RoHS Compliant 715mm x 42mm Equipment with UL Approval
- 2899370000 - RoHS Compliant 715mm x 42mm Equipment with UL Approval
Couldn't load pickup availability
Description:
This product meets RoHS standards and possesses the relevant certifications, including a UL file number E354496 With dimensions of 715 mm in width, 42 mm in height, and 40 mm in depth, the measurements convert to approximately 2815 inches, 1654 inches, and 1575 inches respectively Weighing in at 1,006 grams, this item is designed to operate efficiently within a temperature range of -20 to 45 degrees Celsius.
Features and Benefits:
•Compliant with RoHS exemption 6c.
•Has a rated voltage of 24 V DC.
•Rated current of 762.5 mA.
•Power consumption of 18.3 W.
•Dimmable feature available.
•Operating life up to 60,000 hours.
•Protection degree of IP67.
•Suitable for electronic equipment on rolling stock.
•Uses M12 pin connector.
Specifications:

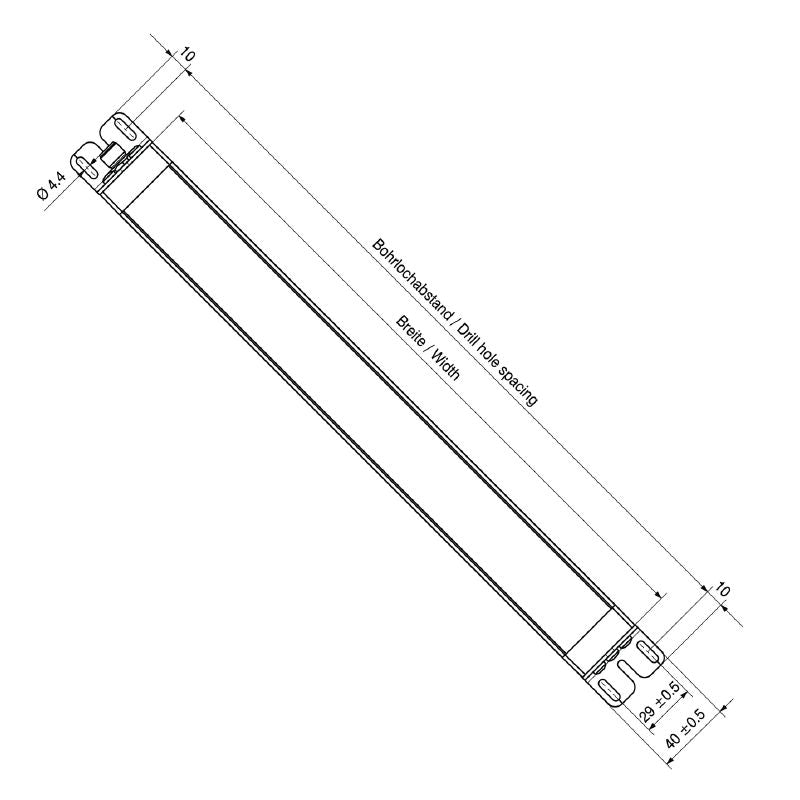

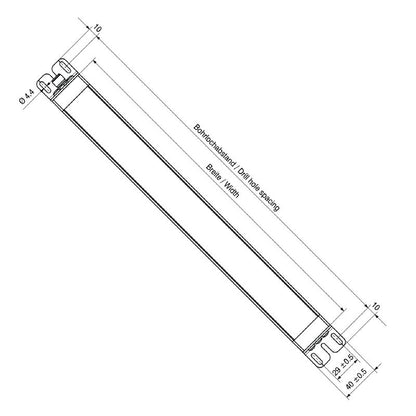

| Dimensions: | {'Depth': '40 mm', 'Height': '42 mm', 'Width': '715 mm'} |
| Connection data | {'LED Modul is attachable': 'no', 'Version': 'pin, straight', 'Number of poles': '5', 'Coding': 'A-coded', 'Connection thread': 'M12'} |
| Wiring | {'Pin 1': 'control white LED 24V DC', 'Pin 2': 'NC', 'Pin 3': 'GND(-)', 'Pin 4': 'NC', 'Pin 5': 'NC'} |
| Light colour (CCT) | 5700K White |
| Type of mounting | Screw mounting |
| Drill hole spacing | 745 mm |
| Material of LED cover | ESG |
| Housing main material | hard anodised aluminium |
| ETIM classification | {'ETIM 6.0': 'EC000996', 'ETIM 7.0': 'EC000996', 'ETIM 8.0': 'EC000996', 'ETIM 9.0': 'EC000996', 'ETIM 10.0': 'EC000996', 'ECLASS 9.1': '27-11-06-35', 'ECLASS 10.0': '27-11-06-35', 'ECLASS 11.0': '27-11-06-35', 'ECLASS 12.0': '27-11-06-35', 'ECLASS 13.0': '27-11-06-35', 'ECLASS 14.0': '27-11-06-35', 'ECLASS 15.0': '27-11-06-35'} |
