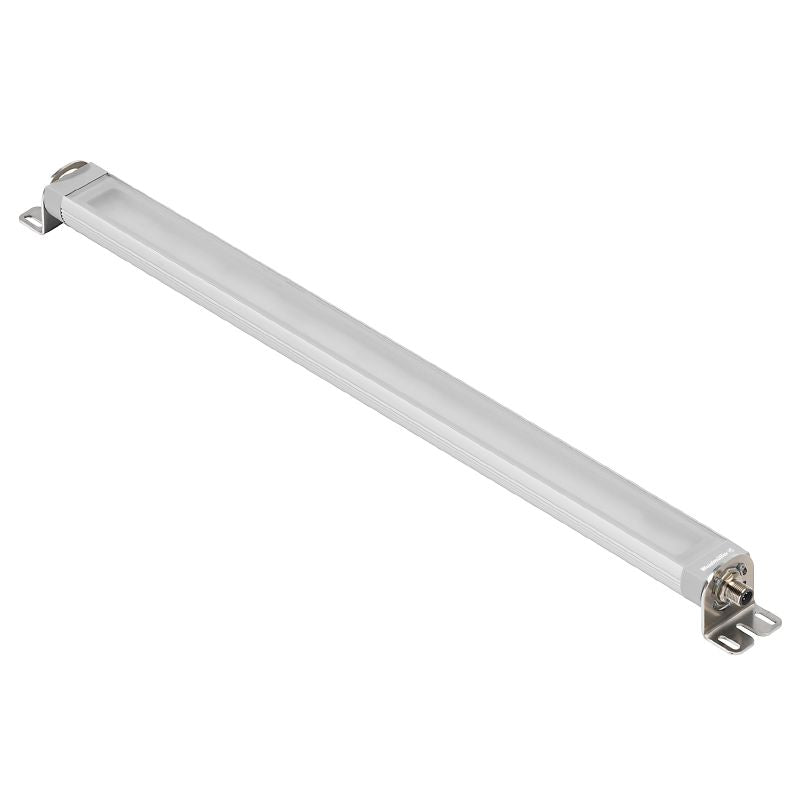

2899250000 - 540mm Dimmable LED Light with Aluminum Housing
2899250000 - 540mm Dimmable LED Light with Aluminum Housing
SKU: SKU: 2899250000 Download PDF
- 2899250000 - 540mm Dimmable LED Light with Aluminum Housing
- 2899250000 - 540mm Dimmable LED Light with Aluminum Housing
Couldn't load pickup availability

Description:
Introducing a versatile product crafted for various electrical applications, adhering to RoHS standards and certified under E354496 With dimensions of 540 mm wide, 40 mm deep, and 42 mm high (approximately 2126 x 1575 x 1654 inches), this item weighs in at 690 grams
It operates effectively in temperature ranges from -20°C to 45°C, making it suitable for diverse environments The durable housing is made from hard anodized aluminum and features an easy-to-use pin connector system with five poles.
This product operates at a rated voltage of 24 V DC, with a maximum current of 5542 mA and a power output of 133 W
Notably dimmable, it offers a brilliant light color temperature of 5700K, generating a luminous output of 1,367 lumens with a wide emission angle of 100 degrees, ensuring an illumination level of 503 lux Built for longevity, its operational lifespan reaches up to 60,000 hours, and installation is straightforward with screw mounting.
Features and Benefits:
•Certified under UL File Number E354496.
•RoHS compliant with exemption.
•Operating life of 60,000 hours.
•Dimmable.
•IP67 protection degree.
Specifications:
| Depth: | 40 mm |
| Height: | 42 mm |
| Width: | 540 mm |
| Operating temperature: | -20 - 45°C |
| Rated voltage: | 24 V DC |
| Rated current: | 554.2 mA |
| Power: | 13.3 W |
| Light colour (CCT): | 5700K |
| Light current: | 1,367 lm |
| Emitting angle: | 100° |
| Illumination level: | 503 lux |
| Type of mounting: | Screw mounting |
| Protection degree: | IP67 |
| Material of LED cover: | PMMA |
| Housing main material: | hard anodised aluminium |
