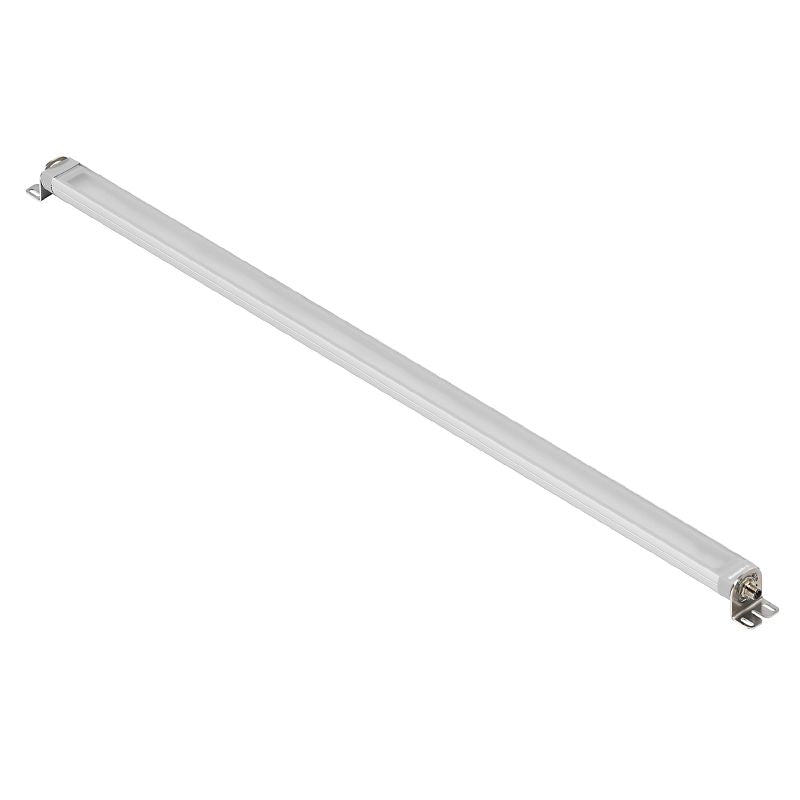

2899400000 - Dimmable Round LED Module, 1040mm, IP67, 5700K Light

Description:

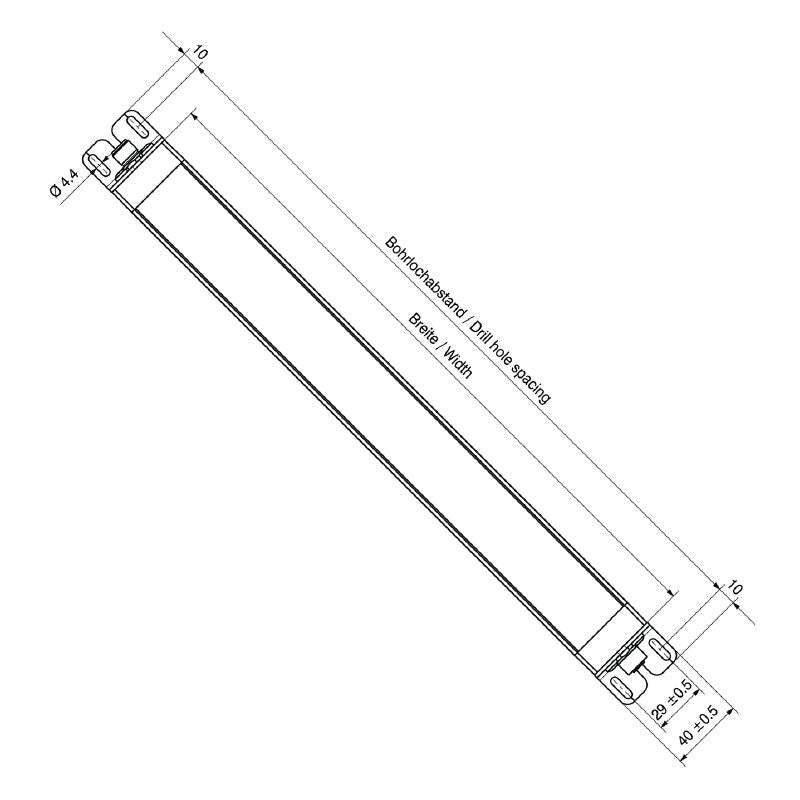

Experience the reliability and performance of this innovative product, designed with compliance to RoHS standards and certified by UL under certificate number E354496 Measuring 40 mm in depth (1575 inches), 42 mm in height (1654 inches), and a generous width of 1,040 mm (40945 inches), it boasts a net weight of 1,445 grams This product functions efficiently across an operating temperature range of -20 to 45 degrees Celsius.

It features a versatile LED module that supports up to four attachable modules, with a straight pin configuration offering a maximum of five poles Operating at a rated voltage of 24 V DC and drawing a current of 11083 mA, it delivers an impressive power output of 266 W Notably, this dimmable round LED module emits a bright light with a correlated color temperature of 5700K, producing 2,719 lumens and achieving an illumination level of 1,076 lux, with a wide emitting angle of 100 degrees.

With a remarkable operational lifespan of up to 60,000 hours, it is securely installed using screw mounting Designed for durability, it features a protection rating of IP67, ensuring excellent resistance to dust and water The robust housing is made from hard anodized aluminum, while the LED cover is crafted from ESG material, making it a reliable choice for various applications.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Number of attachable LED modules, max. 4 pieces.

•Pin connector and socket connector types.

•Dimmable feature.

•Protection degree IP67.

Specifications:
