Description:

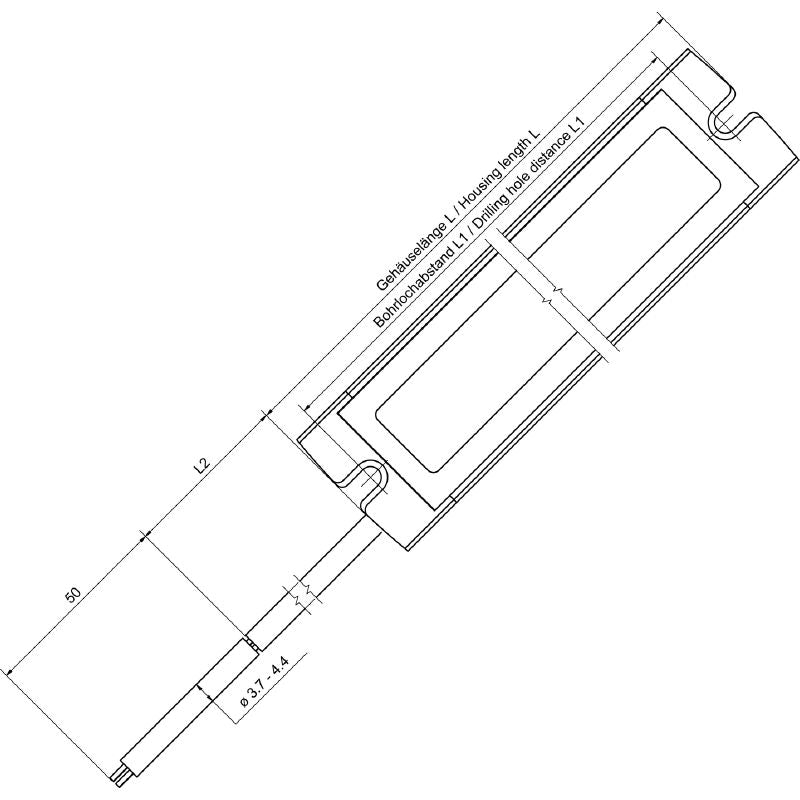

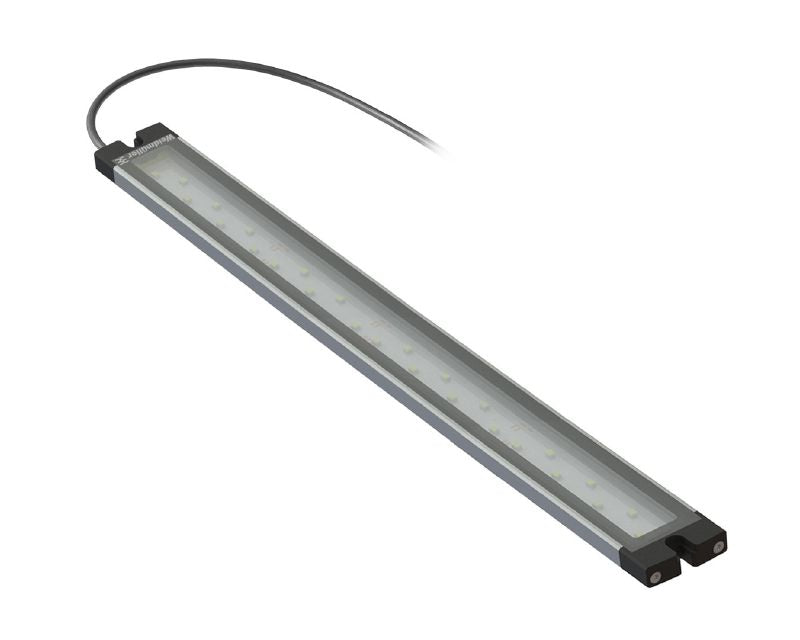

Illuminate your space with this versatile LED module, engineered for a wide temperature range from -20°C to 60°C Featuring a sleek black PUR cable sheath, this module measures 450 mm wide, 40 mm deep, and 8 mm high, weighing 226 g It boasts 28 LEDs that emit a warm white light at a color temperature of 2700K, delivering an impressive illumination output of 1,661 lumens with a 40° beam angle Operating on a rated voltage of 24 V DC, it draws a current of 0.
625 A and provides a total power output of 15 W Installation is simple with screw mounting, requiring a drill hole spacing of 435 mm Enjoy the benefit of dimmable functionality along with a long operating life of up to 60,000 hours Additionally, this module complies with RoHS standards, ensuring environmentally friendly use.
Features and Benefits:
•Dimmable functionality.
•Operating life of 60,000 hours.
•Warm white light at 2700K.
•Impact resistance rated at IK05.
•Protection degree of IP67.
Specifications:
| Cable Material | PUR |
| Cable length | 3 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.625 A |
| Power | 15.0 W |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 28 |
| Light current | 1,661 lm |
| Illumination level | 537 lux |
| Type of mounting | Screw mounting |
| Drill hole spacing | 435 mm |
| Operating temperature | -20 - 60°C |
| Material of LED cover | ESG |
| Housing main material | hard anodised aluminium |
| Material of end caps | PBT |
| Version | Cable end open |
| Coding | A-coded |
