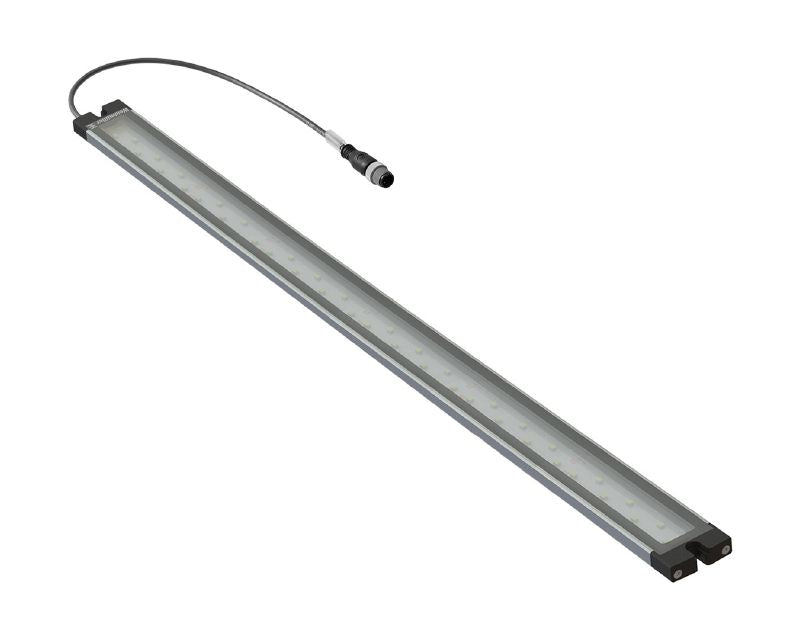

2550650000 - 0.3m IP67 Pre-assembled Cable, Warm White 2700K, 22.5W
2550650000 - 0.3m IP67 Pre-assembled Cable, Warm White 2700K, 22.5W
SKU: SKU: 2550650000 Download PDF
- 2550650000 - 0.3m IP67 Pre-assembled Cable, Warm White 2700K, 22.5W
- 2550650000 - 0.3m IP67 Pre-assembled Cable, Warm White 2700K, 22.5W
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the convenience of this pre-assembled 03 m cable, designed to operate at a voltage of 24 V DC and capable of handling a maximum current of 0937 A to deliver an impressive power output of 225 W It emits a warm white light at a cozy 2700K color temperature with a luminous intensity of 2,492 lumens and a brightness of 485 cd Featuring 42 LEDs, this fixture promises a long operational lifespan of approximately 60,000 hours.
Crafted from durable black PUR material, it boasts an IP67 rating for robust protection against the elements Its IK05 impact resistance rating ensures reliability for a variety of applications.
Features and Benefits:
•IP67 protection degree.
•Dimmable feature.
•Operating life of 60,000 hours.
•Screw mounting type.
•Impact resistance IK05.
•Pre-assembled for easy installation.
Specifications:
| Depth | 40 mm |
| Depth (inches) | 1.575 inch |
| Height | 8 mm |
| Height (inches) | 0.315 inch |
| Width | 655 mm |
| Width (inches) | 25.787 inch |
| Operating temperature | -20 - 60°C |
| Cable Material | PUR |
| Rated voltage | 24 V DC |
| Rated current | 0.937 A |
| Power | 22.5 W |
| Shape of the LED module | Rectangular |
| Number of LEDs | 42 |
| Light colour (CCT) | 2700K |
| Luminosity | 485 cd |
| Light current | 2,492 lm |
| Emitting angle | 40 ° |
| Illumination level | 780 lux |
| Connection thread | M12 |
| Tightening torque | 0.8 Nm |
| Material of LED cover | ESG |
| Housing main material | hard anodised aluminium |
| Threaded ring material | PA |
| Material of end caps | PBT |
