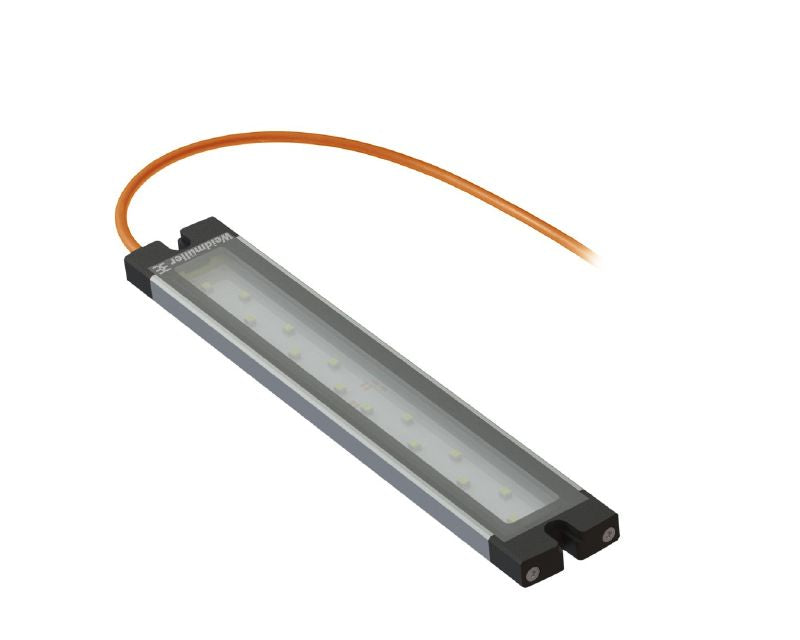

2528000000 - 1.5m LED Module, 6500K, IP67 Anodized Aluminum Housing
2528000000 - 1.5m LED Module, 6500K, IP67 Anodized Aluminum Housing
SKU: SKU: 2528000000 Download PDF
- 2528000000 - 1.5m LED Module, 6500K, IP67 Anodized Aluminum Housing
- 2528000000 - 1.5m LED Module, 6500K, IP67 Anodized Aluminum Housing
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile LED module, measuring 15 meters long, optimized for 24V DC usage Crafted from durable hard anodized aluminum, its housing provides sturdy protection, while the ESG cover enhances its environmental compliance This module operates efficiently across a temperature range of -20 to 60 degrees Celsius With a configuration of 14 LEDs, it delivers an impressive light output of 886 lumens and a luminous intensity of 3,470 cd, all at a bright color temperature of 6500K.
Designed for easy installation, it features screw mounting and boasts an IP67 rating, ensuring reliability in various conditions.
Features and Benefits:
•Operating life of 60,000 hours.
•Dimmable feature available.
•Impact-resistance rated at IK05.
•Recommended for NEC Class 2 power supply usage.
•Illumination level of 291 lux.
•Emits at an angle of 40 degrees.
Specifications:
| Cable Material | PUR |
| Cable length | 1.5 m |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Shape of the LED module | Rectangular |
| Number of LEDs | 14 |
| Light colour (CCT) | 6500K |
| Luminosity | 3,470 cd |
| Light current | 886 lm |
| Illumination level | 291 lux |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |
| Protection degree | IP67 |
| Efficiency class | F |

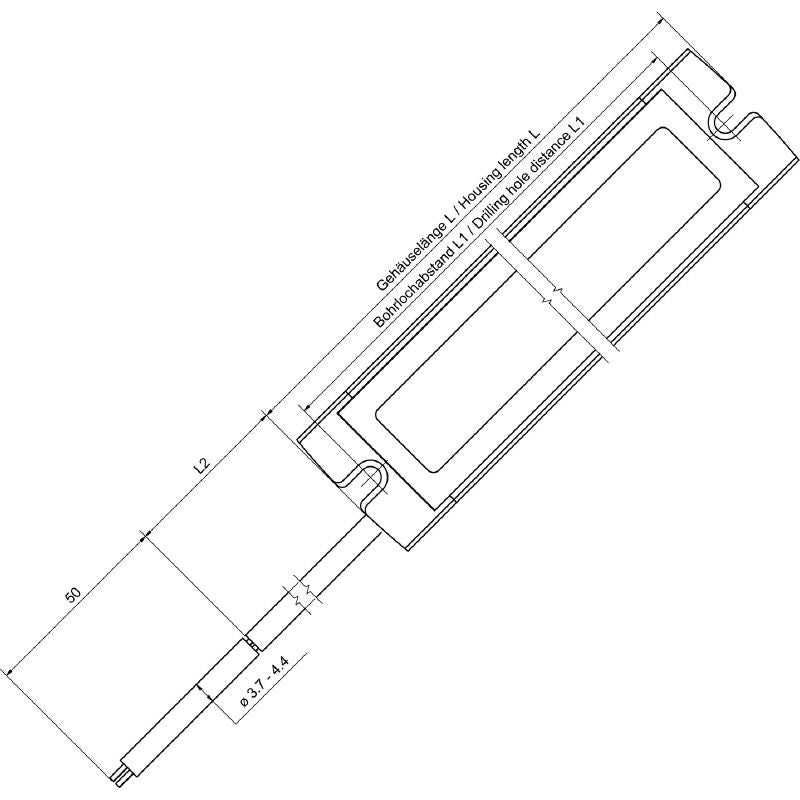

| Depth | 40 mm |
| Height | 9.5 mm |
| Width | 240 mm |
