Description:

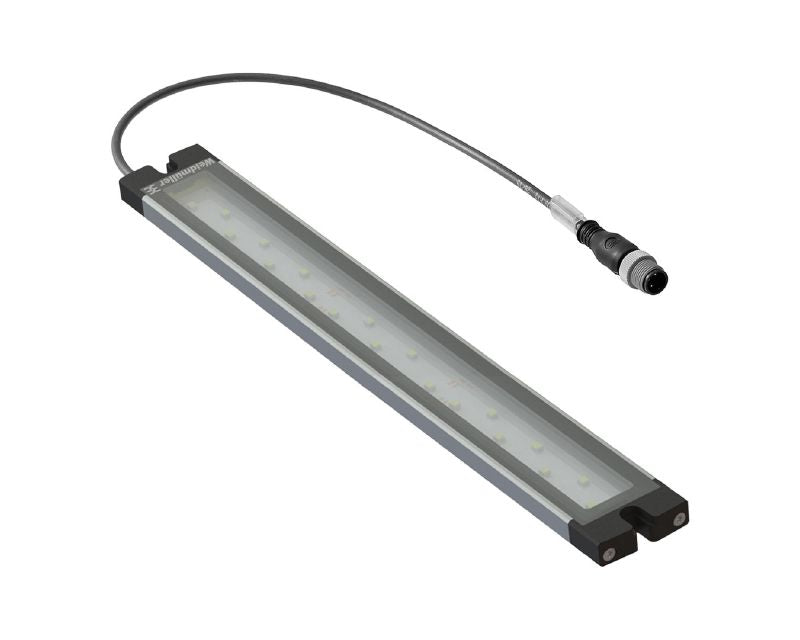

Illuminate your space with the WIL-LWXXXX-2700D024-350SXX03BM12GXXXX pre-assembled LED module, perfect for a variety of lighting needs This compact unit features a 03-meter cable and is built from robust materials, including hard anodised aluminium and black PUR sheathing With an impressive operating range of -20 to 60°C, it guarantees reliable use in diverse conditions Emitting a soothing warm white light at 2700K, this module delivers a brightness of 1,246 lumens while maintaining energy efficiency with a power rating of just 11.
3 watts.
Features and Benefits:
•Dimmable functionality.
•LED module consists of 21 LEDs.
•Light current provides 1,246 lumens.
•Operating life of 60,000 hours.
•Impact resistance rating of IK05.
•Protection degree IP67 for dust and water resistance.
Specifications:

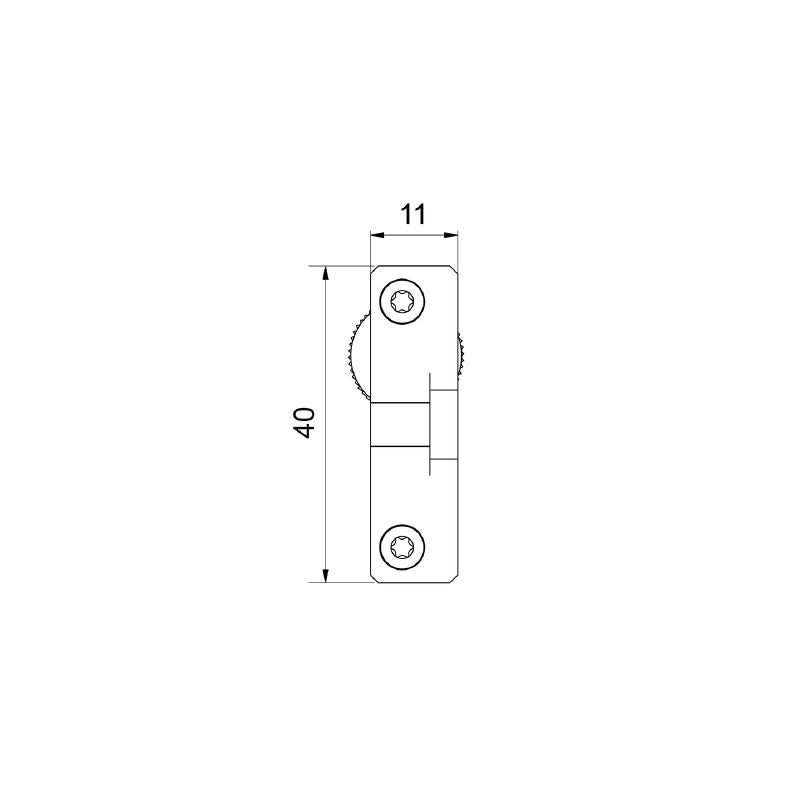

| Depth | 40 mm (1.575 inch) |
| Height | 8 mm (0.315 inch) |
| Width | 350 mm (13.78 inch) |
| Cable Material | PUR |
| Rated voltage | 24 V DC |
| Rated current | 0.471 A |
| Power | 11.3 W |
| Type of mounting | Screw mounting |
| Emitting angle | 40 ° |
| Illumination level | 407 lux |
| Tightening torque | 0.8 Nm |
| Core cross-section | 0.34 mm² |
| Electric data | Dimmable |
| Connection thread | M12 |
| Number of poles | 2 |
| Coding | A-coded |
| Wiring | Pin 4 controls white LED, Pin 3 strand: blue |
| General technical data | Recommended according to UL for use with power supply NEC Class 2 |
| Shape of the LED module | Rectangular |
| Material of LED cover | ESG |
| Material of end caps | PBT |
