2545170000 - ROHS Certified 145mm Device, 100g, -20 to 60°C Operating Range
2545170000 - ROHS Certified 145mm Device, 100g, -20 to 60°C Operating Range
SKU: SKU: 2545170000 Download PDF
- 2545170000 - ROHS Certified 145mm Device, 100g, -20 to 60°C Operating Range
- 2545170000 - ROHS Certified 145mm Device, 100g, -20 to 60°C Operating Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

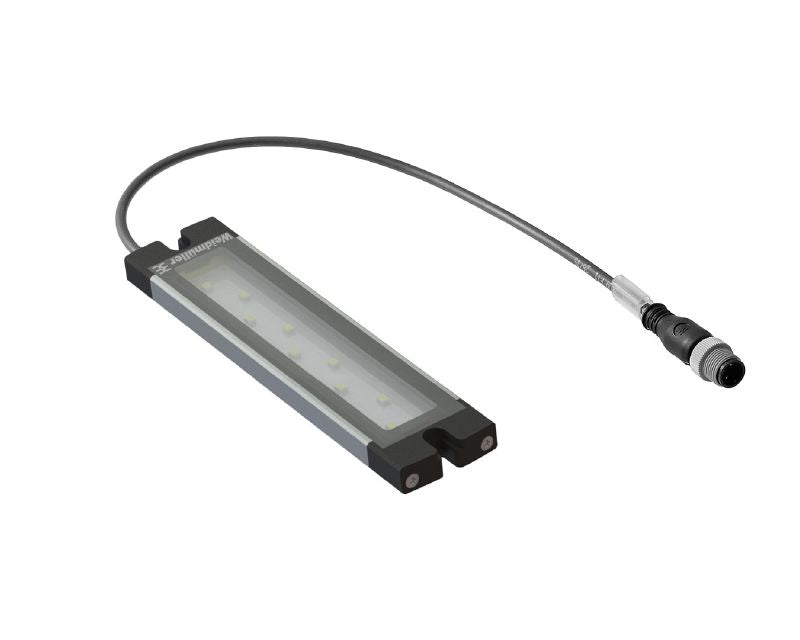

This product complies with ROHS regulations and is UL certified, identifiable by certificate number E354496 It is available for general ordering under order number 2545170000 and carries a GTIN of 4050118554922 Weighing in at 100 grams, the item features dimensions of 145 mm in width, 40 mm in depth, and 95 mm in height It operates effectively within a temperature range of -20 to 60 degrees Celsius.
Features and Benefits:
•Complies with RoHS with exemptions.
•Flexible mounting options with screws and magnets.
•Dimmable functionality.
•High luminosity at 3,470 cd and an illumination level of 145 lux.
•Long operating life rated at 60,000 hours.
•IP67 protection degree ensures resistance to dust and water.
•Impact resistance rated at IK05.
Specifications:
| Operating temperature | -20 - 60°C |
| Cable Material | PUR |
| Cable length | 0.3 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.162 A |
| Power | 3.9 W |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 7 |
| Light colour (CCT) | 6500K |
| Light current | 443 lm |
| Emitting angle | 40 ° |
| Type of mounting | Screw mounting |

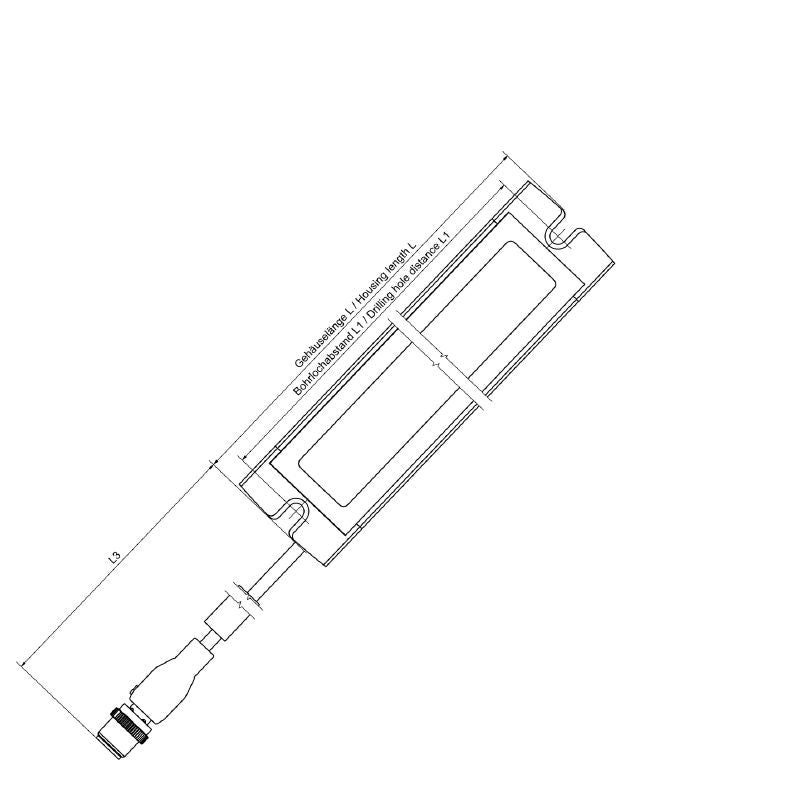

| Drill hole spacing | 130 mm |
| Material of LED cover | ESG |
| Housing main material | hard anodised aluminium |
| Protection degree | IP67 |
| Efficiency class (according to EU Directive No. 874/2012) | G |
| Number of poles | 2 |
| Coding | A-coded |
