2899540000 - UL-Approved 610mm LED Light with RoHS Compliance
2899540000 - UL-Approved 610mm LED Light with RoHS Compliance
SKU: SKU: 2899540000 Download PDF
- 2899540000 - UL-Approved 610mm LED Light with RoHS Compliance
- 2899540000 - UL-Approved 610mm LED Light with RoHS Compliance
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This product meets RoHS standards and is certified under UL File Number E354496, ensuring its quality and safety It is designated by the order number 2899540000 and has a GTIN of 4064675906599 With dimensions of 40 mm in depth, 42 mm in height, and 610 mm in width (1575 inches, 1654 inches, and 24016 inches, respectively), this item weighs 770 g It is suitable for use in temperatures between -20°C and 45°C, making it a reliable choice for various environments.
Features and Benefits:
•Compliant with RoHS compliance status.
•Operating life of 60,000 hours.
•Protection degree rated IP67.

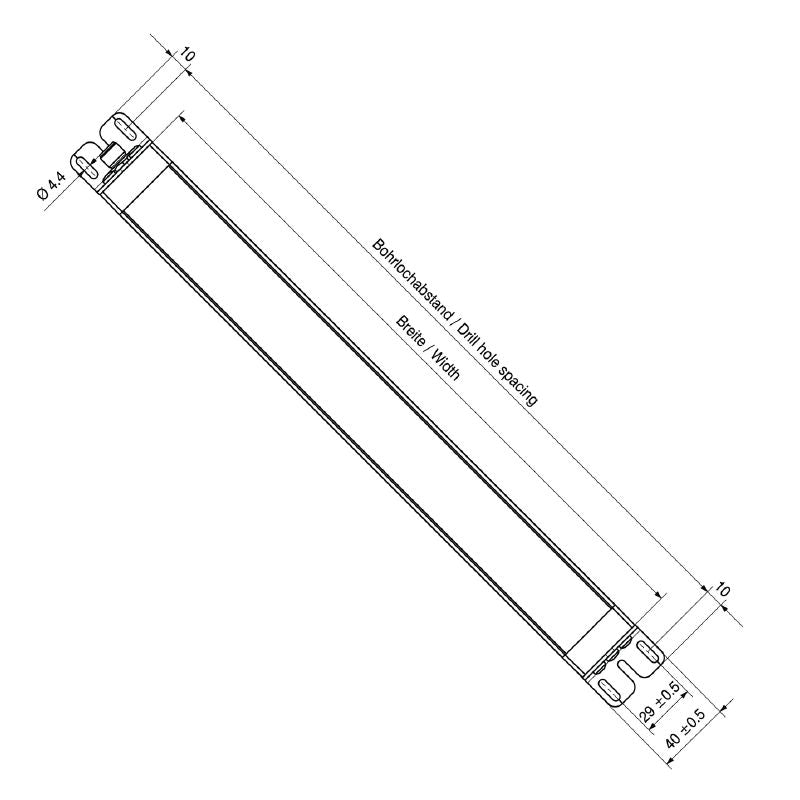

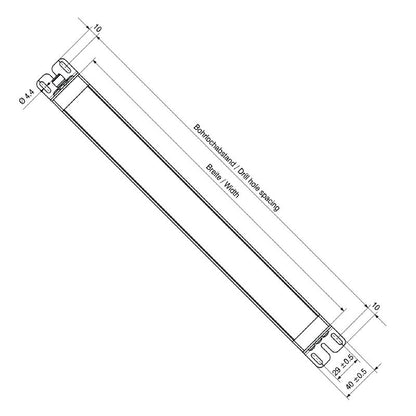

•Screw mounting type with a drill hole spacing of 640 mm.

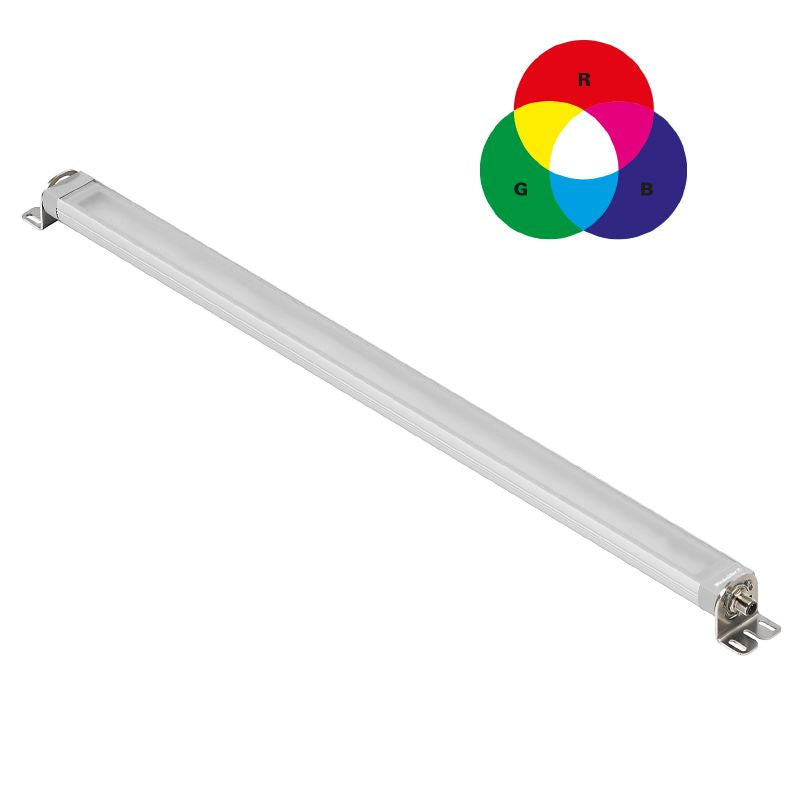

•Light colours include Red, Green, Blue, and White.
•Emitting angle of 100 degrees.
•Illumination level of 372 lux.
Specifications:
| Housing main material | hard anodised aluminium |
| Number of poles | 5 |
| Rated voltage | 24 V DC |
| Power | 38.7 W |
| Type of connection | Pin connector |
| Connection thread | M12 |
| Wiring | Pin 1 - 4: control multicolor LED, Pin 5: GND(-) |
| LED cover material | PMMA |
| Temperature operating | -20 - 45°C |
| ETIM 6.0 | EC000996 |
| ECLASS 9.1 | 27-11-06-35 |
