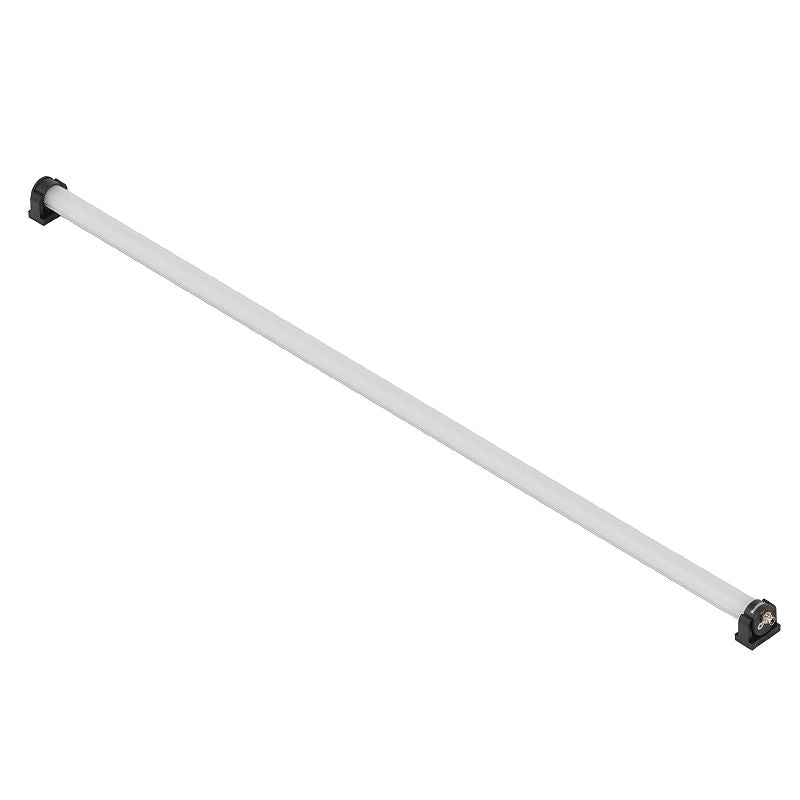

2899660000 - 980mm Hard Anodized LED Module with Dimming and IP54 Rating
2899660000 - 980mm Hard Anodized LED Module with Dimming and IP54 Rating
SKU: SKU: 2899660000 Download PDF
- 2899660000 - 980mm Hard Anodized LED Module with Dimming and IP54 Rating
- 2899660000 - 980mm Hard Anodized LED Module with Dimming and IP54 Rating
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

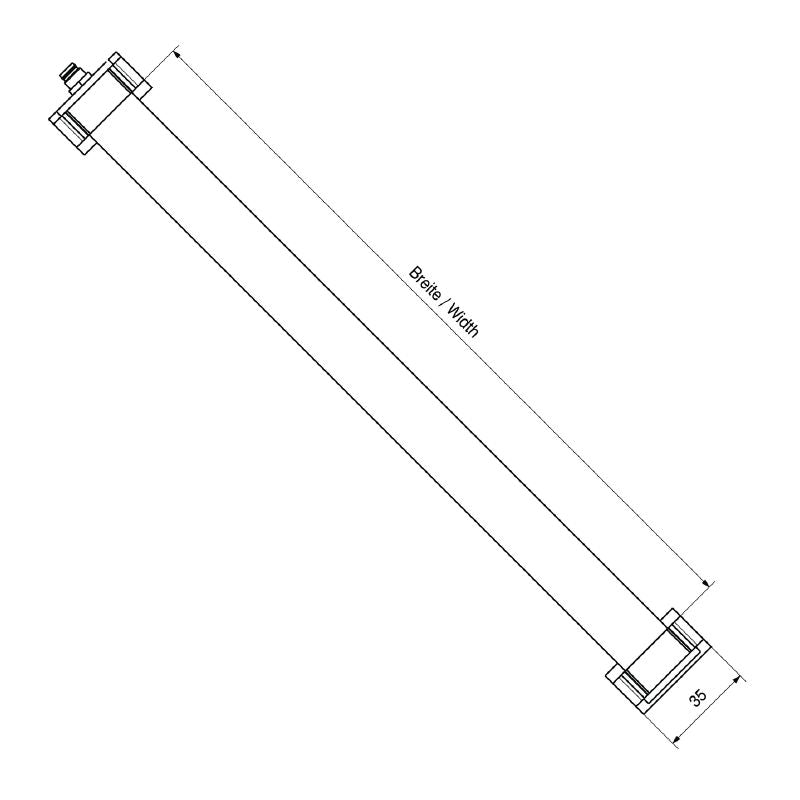

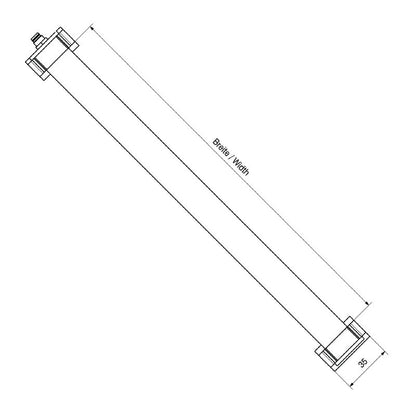

Discover a reliable and versatile product that meets RoHS standards and proudly holds a UL certification, identified by certificate number E354496 With impressive dimensions of 980 mm wide, 35 mm high, and 35 mm deep (38583 inches x 1378 inches x 1378 inches), this item weighs a manageable 569 g It operates efficiently within a temperature range of -20 to 45°C and aligns with environmental regulations.
The product showcases a robust hard anodised aluminium housing and features a pin straight connection with four poles, incorporating A-coded wiring for seamless connectivity It has an M8 connection thread anchored with a tightening torque of 06 Nm Designed for 24 V DC power supply, it operates at a current of 9875 mA, providing an output of 237 W Benefit from the flexibility of stepless dimming controls for optimal lighting adjustments.

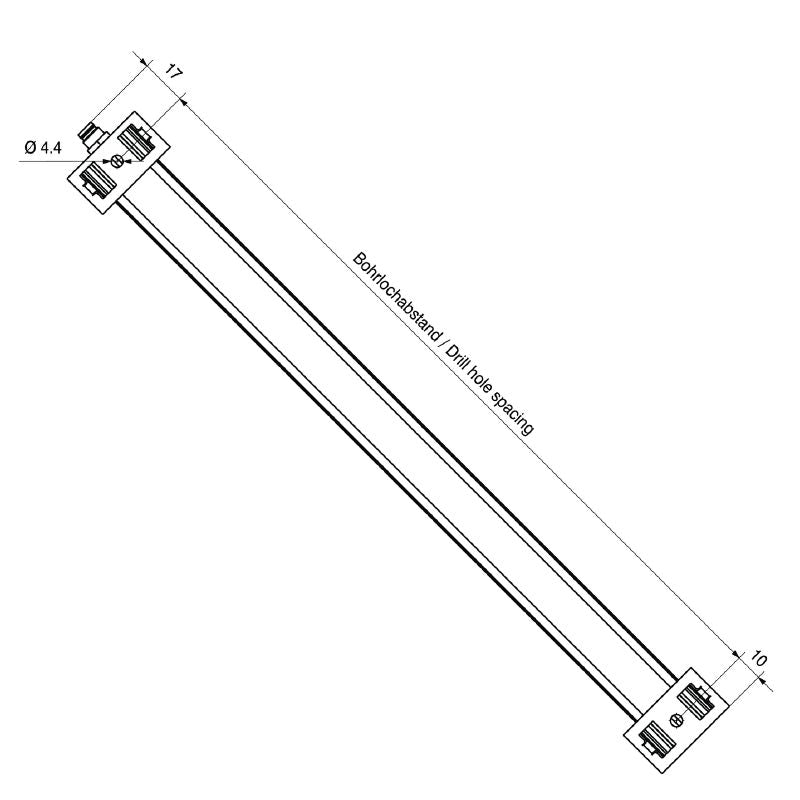

Equipped with a round LED module, it emits a crisp light color temperature of 5700K, generating a light output of 1,700 lumens The illumination intensity registers at 731 lux, with an expansive emission angle of 120 degrees Expect long-lasting performance with an estimated lifespan of around 60,000 hours Installation is a breeze with screw mounting that requires a drill hole spacing of 989 mm, while the product's protective rating of IP54 ensures resilience in various conditions.
The LED cover is constructed from durable PMMA, making it a dependable choice for various applications.
Features and Benefits:
•Hard anodised aluminium housing.
•Pin straight connection with 4 poles.
•Stepless dimming capability.
•Round LED module.
•Operating life of 60,000 hours.
•IP54 protection degree.
Specifications:
| Operating temperature | -20 - 45°C |
| Rated voltage | 24 V DC |
| Rated current | 987.5 mA |
| Power | 23.7 W |
| Light colour (CCT) | 5700K |
| Light current | 1,700 lm |
| Emitting angle | 120° |
| Illumination level | 731 lux |
| Type of mounting | Screw mounting |
| Drill hole spacing | 989 mm |
| Material of LED cover | PMMA |
| Protection degree | IP54 |
