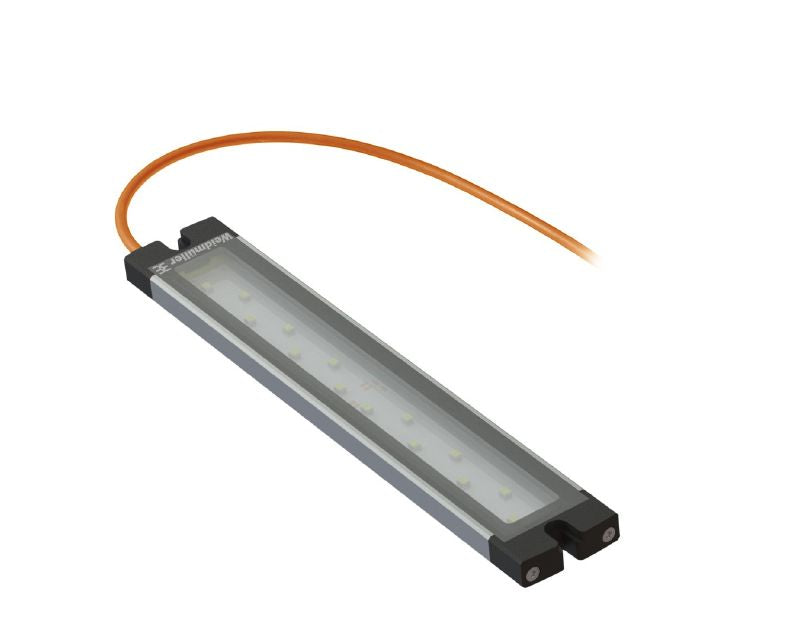

2527960000 - 1.5m Dimmable 14-LED Aluminum Module, 6500K Light
2527960000 - 1.5m Dimmable 14-LED Aluminum Module, 6500K Light
SKU: SKU: 2527960000 Download PDF
- 2527960000 - 1.5m Dimmable 14-LED Aluminum Module, 6500K Light
- 2527960000 - 1.5m Dimmable 14-LED Aluminum Module, 6500K Light
Couldn't load pickup availability
Description:
Illuminate your space with this advanced LED module, featuring a rated voltage of 24 V DC and a current draw of 031 A With a power output of 75 W, it is equipped with 14 bright LEDs delivering a crisp 6500K light temperature and an impressive luminous intensity of 3,470 cd, producing a total light output of 886 lumens This dimmable module offers an illumination level of 291 lux, making it versatile for various settings.

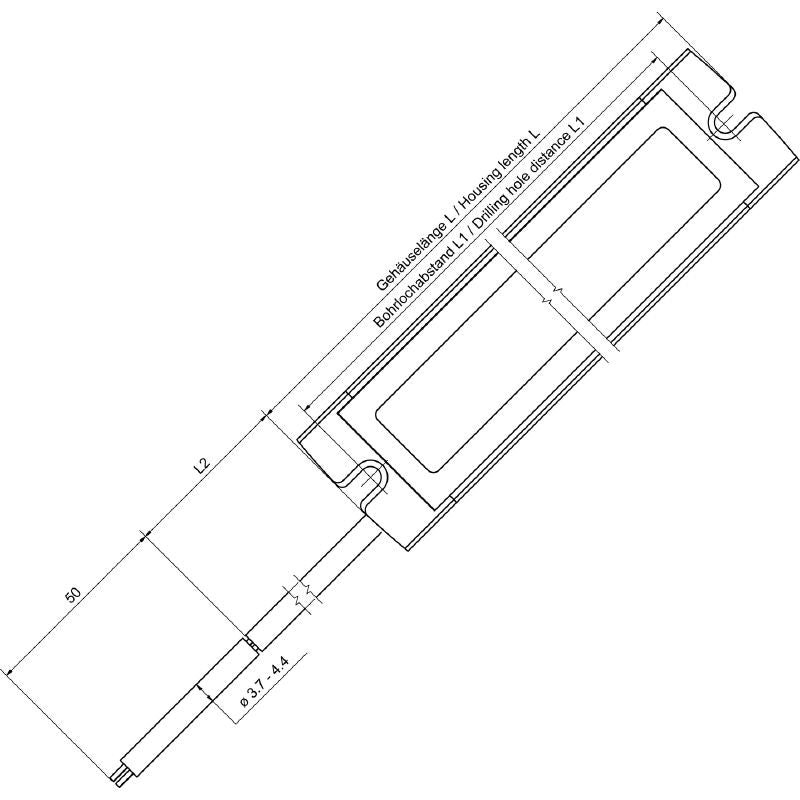

Constructed with a robust hard anodised aluminum housing and protected by a resilient ESG cover, it ensures durability and functionality For easy installation, the module is designed for screw mounting, with a drill hole spacing of 225 mm Enjoy long-lasting performance with an operating life of 60,000 hours, and a wide temperature tolerance ranging from -20 to 60 degrees Celsius.
Features and Benefits:
•Dimmable functionality.
•Suitable for outdoor applications with protection degree IP67.
•High luminosity with 3,470 cd.
•Long operating life of 60,000 hours.
•Screw mounting for easy installation.
•LED cover is made of ESG material.
Specifications:
| Cable Material | PUR |
| Cable length | 1.5 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Number of LEDs | 14 |
| Light colour (CCT) | 6500K |
| Luminosity | 3,470 cd |
| Light current | 886 lm |
| Emitting angle | 40 ° |
| Illumination level | 291 lux |
| Impact resistance | IK05 |
| Efficiency class (according to EU Directive No. 874/2012) | F |
| Protection degree | IP67 |
