2535870000 - 0.3m Dimmable LED Module, M12 Connection, 6500K Light
2535870000 - 0.3m Dimmable LED Module, M12 Connection, 6500K Light
SKU: SKU: 2535870000 Download PDF
- 2535870000 - 0.3m Dimmable LED Module, M12 Connection, 6500K Light
- 2535870000 - 0.3m Dimmable LED Module, M12 Connection, 6500K Light
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

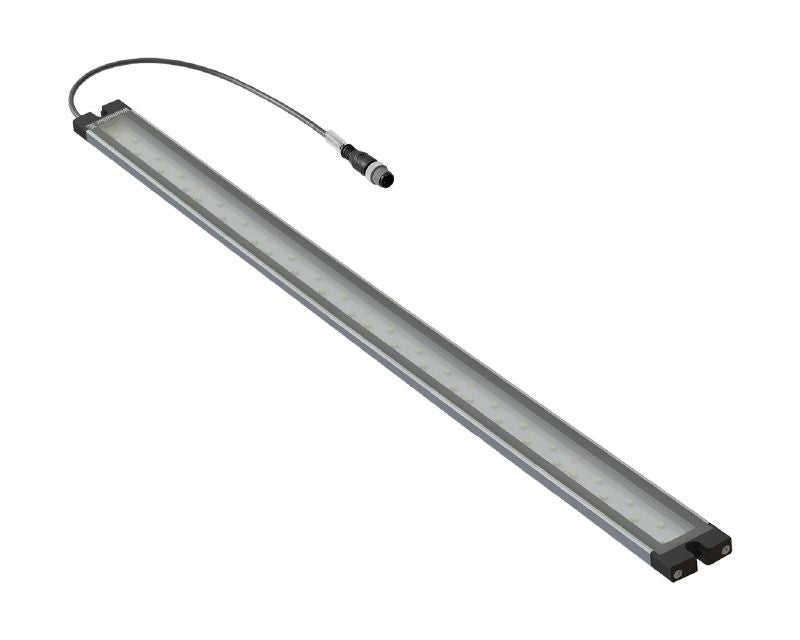

Illuminate your space with this cutting-edge LED module, measuring 03 meters in length It features a straight pin connection with an A-coded M12 threaded design, ensuring secure connectivity With an impressive luminosity of 3,470 cd and a crisp color temperature of 6500K, this module delivers bright, efficient lighting Operating at a voltage of 24 V DC and a current of 0957 A, it also offers the convenience of a dimmable function.
Built to last, it boasts a lifespan of around 60,000 hours Plus, its screw mounting design and robust IP67 rating make it highly resistant to environmental challenges, making it a reliable choice for various settings.
Features and Benefits:
•Dimmable functionality.
•Screw mounting type.
•Suitable for outdoor use with IP67 rating.
•High luminosity of 3,470 cd.
•Long operating life of 60,000 hours.
•Compliance with RoHS regulations.
Specifications:
| Cable Material | PUR |
| Connection thread | M12 |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Rated voltage | 24 V DC |
| Rated current | 0.957 A |
| Power | 23.0 W |
| Number of LEDs | 42 |
| Light current | 2,657 lm |
| Emitting angle | 40 ° |
| Illumination level | 814 lux |
| Impact resistance | IK05 |
| Efficiency class | G |
| Operating temperature | -20 - 60°C |
| Cable length | 0.3 m |
| Depth | 40 mm |
| Height | 8 mm |
| Width | 655 mm |
