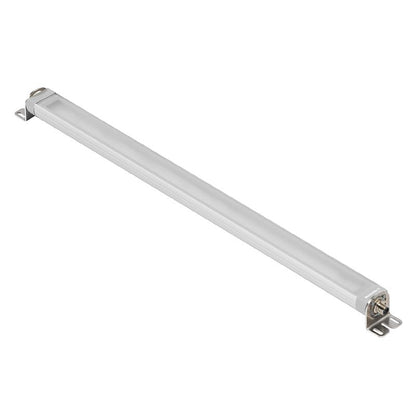

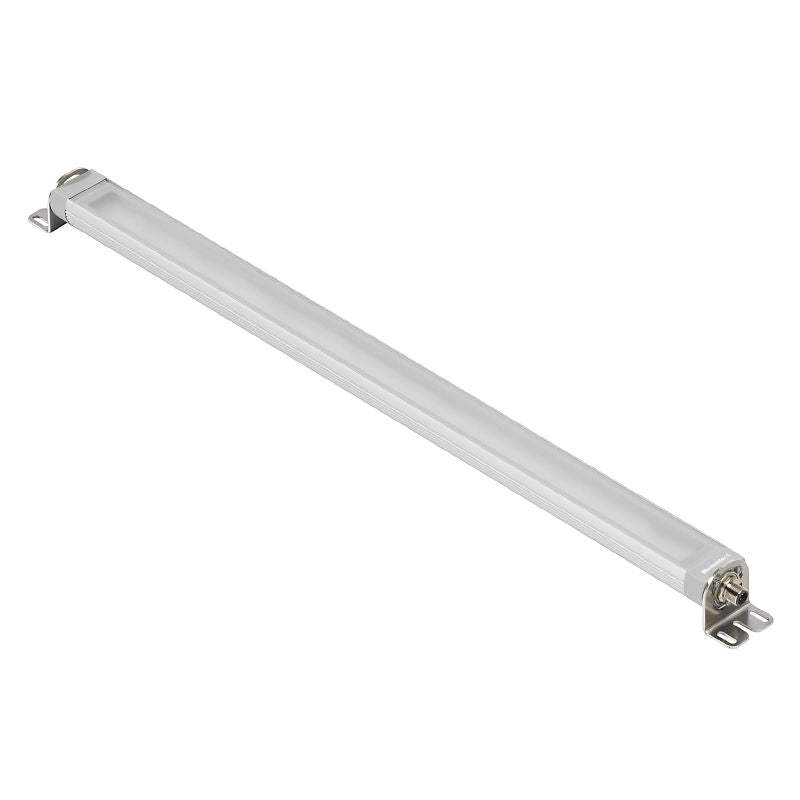

2899280000 - 715mm Anodized Aluminum LED Module Connection System
2899280000 - 715mm Anodized Aluminum LED Module Connection System
SKU: SKU: 2899280000 Download PDF
- 2899280000 - 715mm Anodized Aluminum LED Module Connection System
- 2899280000 - 715mm Anodized Aluminum LED Module Connection System
Couldn't load pickup availability
Description:
Introducing a versatile product, order number 2899280000, built to adhere to essential compliance standards including RoHS regulations With an official certification number E354496, this item measures 715 mm in width, 42 mm in height, and 40 mm in depth, weighing a total of 904 grams It operates efficiently within a temperature range of -20 to 45 degrees Celsius and is compliant with RoHS under exemption 6c, containing Lead (7439-92-1) in its composition.
Crafted from robust hard anodized aluminum, this product features a connection system allowing for up to four attachable LED modules It employs a pin and socket connection mechanism with five poles for secure attachment The rated voltage is 24 V DC, utilizing a current of 7625 mA, with a total power consumption of 183 W, which includes dimmable functionality for added convenience.
Features and Benefits:
•Compliant with RoHS and has a valid UL certificate.
•Allows for attaching up to 4 LED modules.
•Includes a dimmable option.
•Maintains a maximum rated life of 60,000 hours.
•IP67 protection degree.
Specifications:

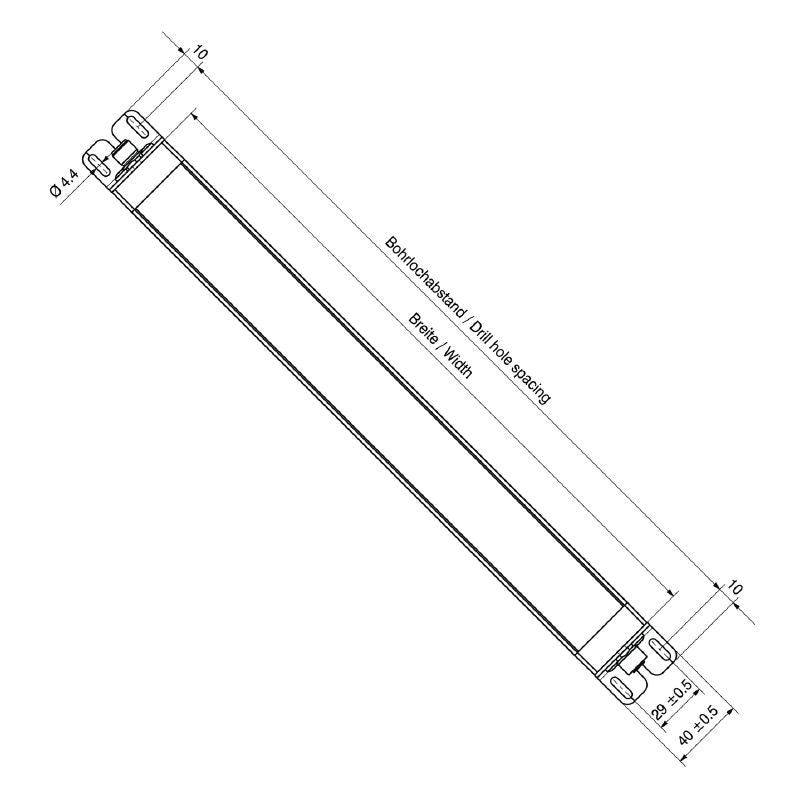

| Depth | 40 mm |
| Height | 42 mm |
| Width | 715 mm |
| Operating temperature | -20 - 45°C |
| Housing main material | hard anodised aluminium |
| Rated voltage | 24 V DC |
| Rated current | 762.5 mA |
| Power | 18.3 W |
| Light colour (CCT) | 5700K |
| Light current | 1,880 lm |
| Emitting angle | 100 ° |
| Illumination level | 679 lux |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |
| Protection degree | IP67 |
