2899780000 - RoHS Compliant Unit, 35mm Depth, 700mm Width
2899780000 - RoHS Compliant Unit, 35mm Depth, 700mm Width
SKU: SKU: 2899780000 Download PDF
- 2899780000 - RoHS Compliant Unit, 35mm Depth, 700mm Width
- 2899780000 - RoHS Compliant Unit, 35mm Depth, 700mm Width
Couldn't load pickup availability
Description:
This product boasts RoHS compliance and carries a UL certification, identified by number E354496 It has dimensions of 35 mm in height and depth (approximately 1378 inches), along with a width of 700 mm (about 27559 inches) Weighing in at 418 grams, this item operates efficiently in temperatures ranging from -20 to 45 degrees Celsius It adheres to environmental standards, specifically RoHS with certain exemptions, and contains substances regulated by REACH.
Features and Benefits:
•Housing made of hard anodised aluminium.
•Connection thread type: M8.
•Dimmable with stepless dimming capability.
•Rated voltage of 12 to 30 V DC.
•Power output of 16.9 W.
•LED light color temperature of 5700K.
•Light current of 2,048 lumens.
•Emitting angle of 120 degrees.
•Operating life of 60,000 hours.
•Protection degree rated IP54.
Specifications:
| Depth | 35 mm |
| Height | 35 mm |

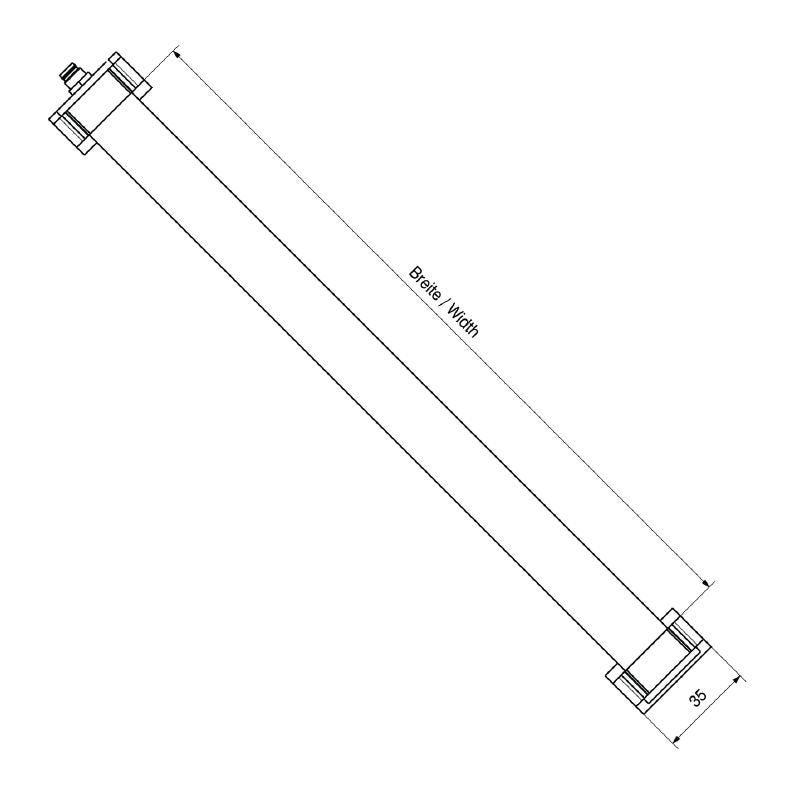

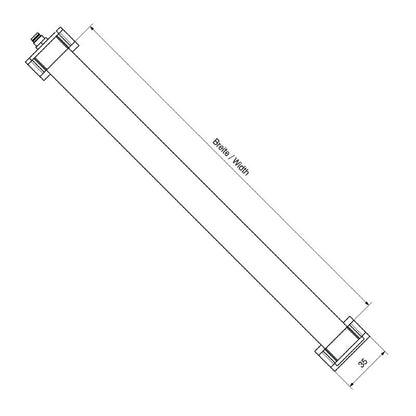

| Width | 700 mm |
| Operating temperature | -20 - 45°C |
| Connection data | {'Version': 'pin, straight', 'Number of poles': '4', 'Coding': 'A-coded', 'Tightening torque': '0.6 Nm', 'Wiring': {'Pin 1': 'control white LED 12-30V DC', 'Pin 2': 'dimmable 1.2-10V DC', 'Pin 3': 'GND(-)', 'Pin 4': 'NC'}} |

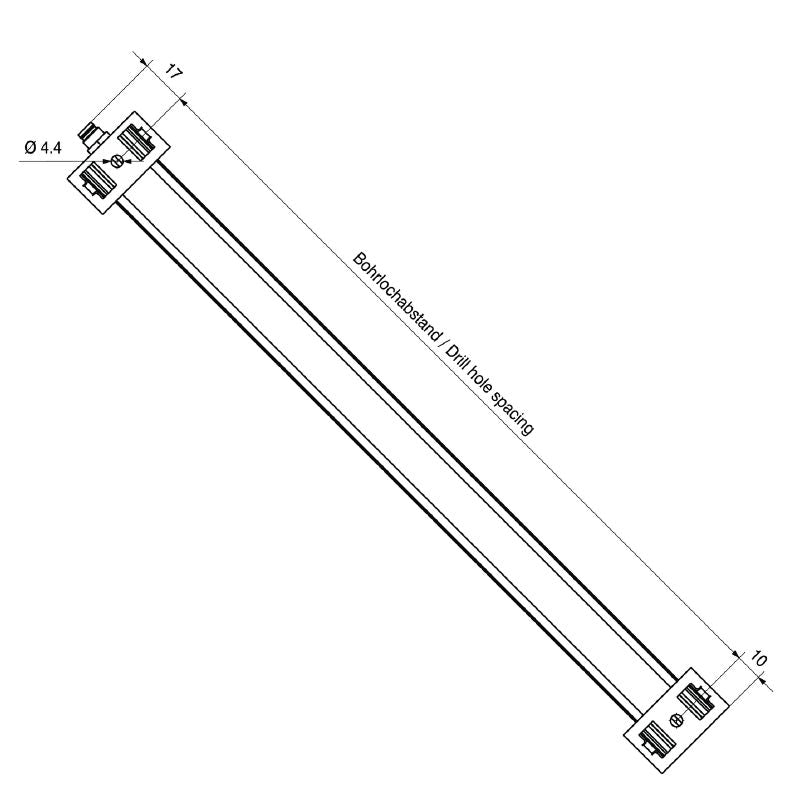

| General technical data | {'Electronic equipment on rolling stock': 'No', 'Shape of the LED module': 'Round', 'Type of connection': 'Pin connector', 'Illumination level': '576 lux', 'Type of mounting': 'Screw mounting', 'Drill hole spacing': '709 mm', 'Material of LED cover': 'PMMA'} |
| Classifications | {'ETIM 6.0': 'EC000996', 'ECLASS 9.1': '27-11-06-35'} |
