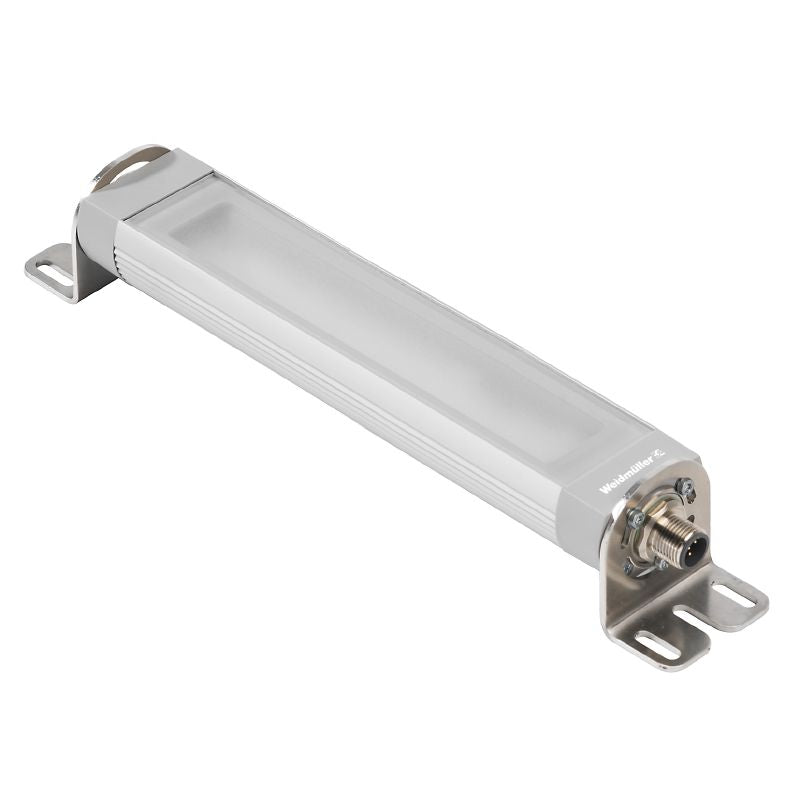

2899220000 - Dimmable 5700K LED Module Housing, 190mm Aluminium Design

Description:

Introducing a versatile product that meets UL certification E354496 and complies with RoHS standards, making it suitable for a range of uses Measuring 190 mm wide, 40 mm deep, and 42 mm high (equivalent to 748 inches, 1575 inches, and 1654 inches respectively), this item has a lightweight build of 234 grams It operates efficiently within a temperature range of -20 to 45 degrees Celsius Crafted from durable hard anodised aluminum, this product can accommodate up to four pin-style straight connection LED modules.

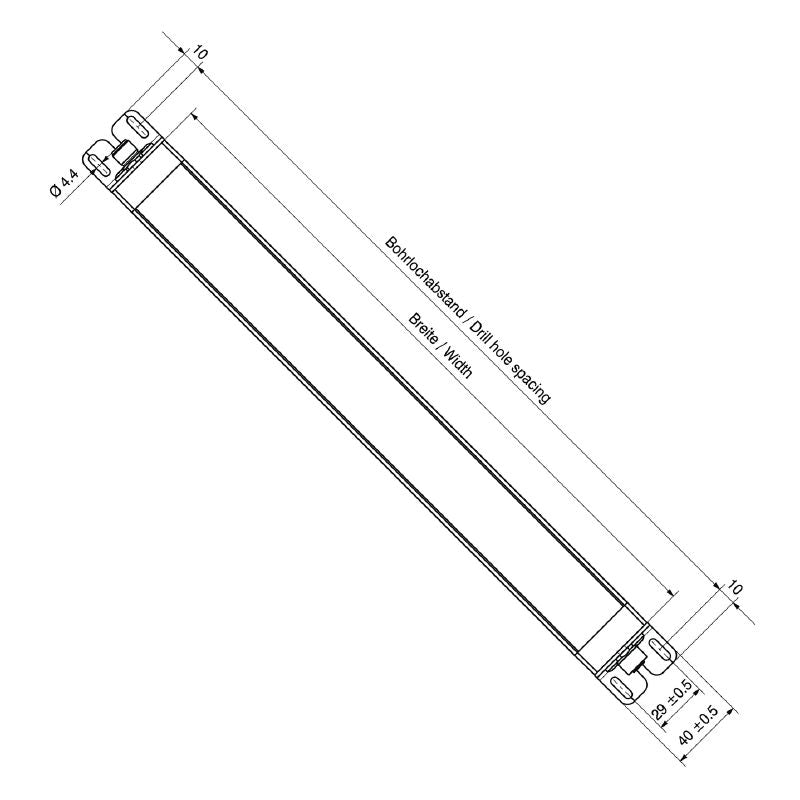

It operates on a rated voltage of 24 V DC, with a maximum current of 1375 mA and a power draw of 33 W Dimmable capabilities enhance its versatility, providing a bright output at a color temperature of 5700K, achieving a luminous efficiency of 341 lumens and an illumination level of 135 lux Installation is straightforward with screw mounting, requiring specific drill hole spacing for optimal setup.

Features and Benefits:

•Compliant with RoHS and certified by UL.

•LED module is attachable with a capacity of four modules.

•Dimmable light feature.

•Long operating life of 60,000 hours.

•Protection degree of IP67 for durability in various environments.

Specifications:
