2899640000 - ROHS Certified 35mm Deep Equipment, 700mm Wide, 418g

2899640000 - ROHS Certified 35mm Deep Equipment, 700mm Wide, 418g

SKU: SKU: 2899640000 Download PDF

Variant:
  • 2899640000 - ROHS Certified 35mm Deep Equipment, 700mm Wide, 418g
Regular price Now $226.62
Regular price BEFORE   $0.00 Sale price Now $226.62
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

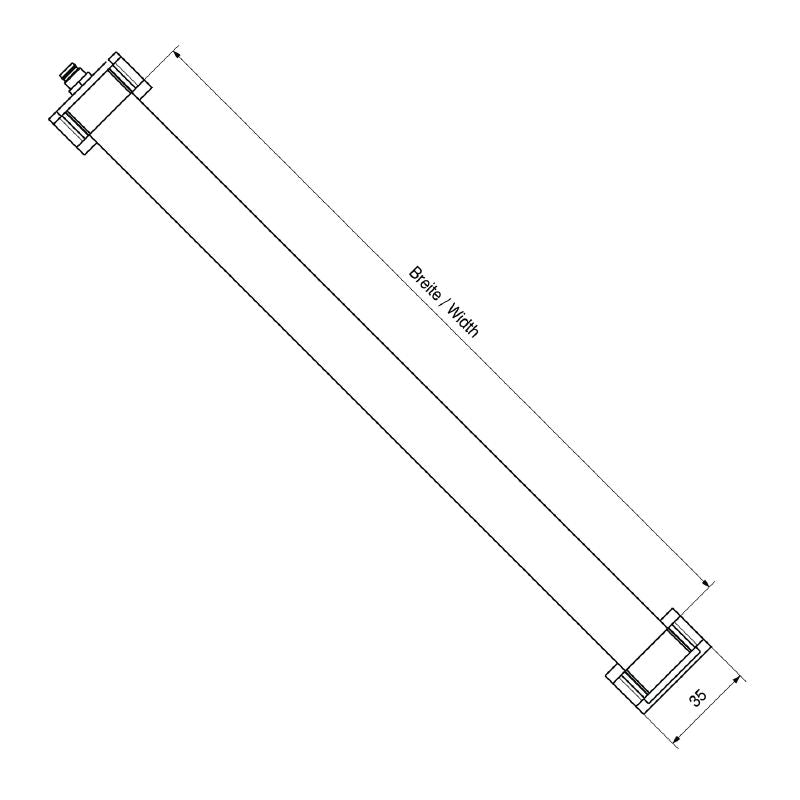

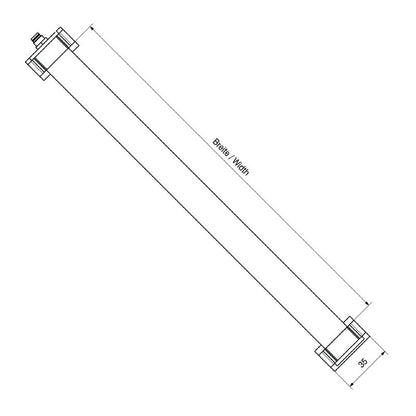

This item complies with RoHS standards and carries the certification number E354496 Available for purchase under the order number 2899640000, it is also identified by the GTIN 4064675906698 The product dimensions are 35 mm in both depth and height, while the width is 700 mm Weighing in at 418 grams, it operates effectively within a temperature range of -20 to 45 degrees Celsius Additionally, this item contains lead as a Substances of Very High Concern (SVHC) and is registered under the SCIP number 3ecd7eed-9477-489c-b868-70515b8da84d.

Features and Benefits:

    •Constructed from hard anodised aluminium.

    •Pin connector with 4 poles.

    •A-coded connection thread with a tightening torque of 0.6 Nm.

    •Dimmable with stepless dimming capability.

    •Maintenance-free with a lifespan of 60,000 hours.

Specifications:

 Operating temperature -20 - 45°C
 Rated voltage 24 V DC
 Rated current 704.2 mA
 Power 16.9 W
 Light colour (CCT) 5700K White
 Light current 1,214 lm
 Emitting angle 120°
 Illumination level 530 lux
 Type of mounting Screw mounting

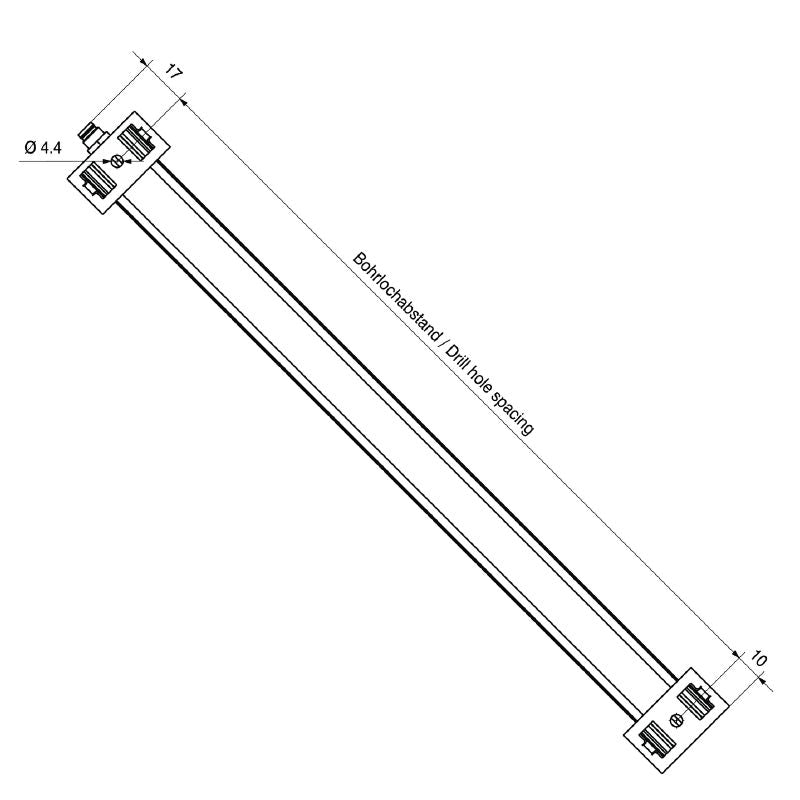

 Drill hole spacing 709 mm
 Protection degree IP54
 Material of LED cover PMMA
 Version pin, straight
 Classifications {'ETIM 6.0': 'EC000996', 'ECLASS 9.1': '27-11-06-35'}
