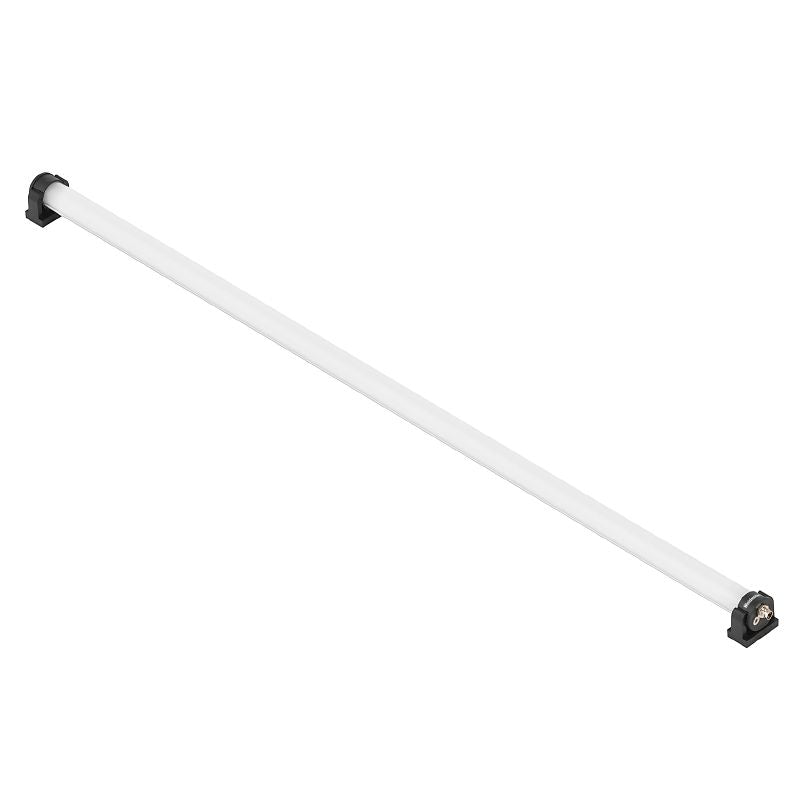

2899650000 - 840mm Anodized Aluminum Connection Device with Dimming, 5700K Light
2899650000 - 840mm Anodized Aluminum Connection Device with Dimming, 5700K Light
SKU: SKU: 2899650000 Download PDF
- 2899650000 - 840mm Anodized Aluminum Connection Device with Dimming, 5700K Light
- 2899650000 - 840mm Anodized Aluminum Connection Device with Dimming, 5700K Light
Couldn't load pickup availability
Description:
Introducing a versatile connection device that meets RoHS compliance and features multiple certifications, including UL approval Constructed with a robust hard anodized aluminum housing, this system is built to last and operate efficiently in temperatures ranging from -20 to 45°C
It offers various connection types and has detailed electrical specifications The compact design measures 35 mm in depth and height, with a width of 840 mm, weighing in at 493 g.
The device utilizes an A-coded, four-pole pin connector and requires a tightening torque of 06 Nm For added functionality, it supports continuous dimming and boasts a light output of 1,457 lumens at a color temperature of 5700K This connection solution is engineered for reliability and performance in various applications.
Features and Benefits:
•Hard anodised aluminum housing.
•Stepless dimming capability.
•Protection degree of IP54.
•Round shape LED module.
•Screw mounting type.
Specifications:
| Depth | 35 mm |
| Height | 35 mm |

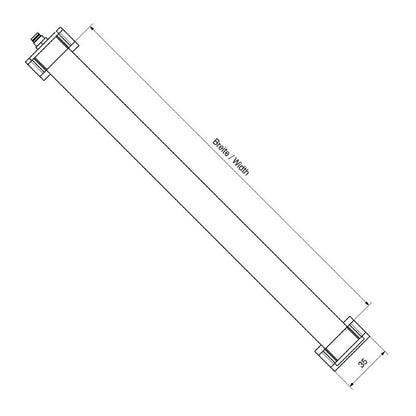

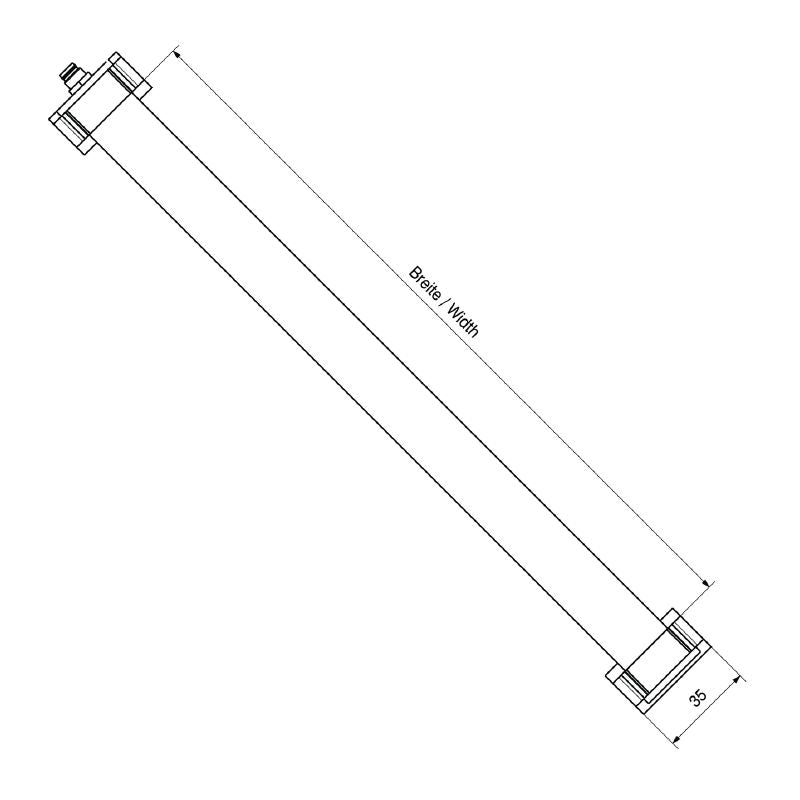

| Width | 840 mm |
| Operating temperature | -20 - 45°C |
| Rated voltage | 24 V DC |
| Rated current | 845.8 mA |
| Power | 20.3 W |
| Dimmable | yes |
| Light colour (CCT) | 5700K White |
| Light current | 1,457 lm |
| Emitting angle | 120 ° |
| Illumination level | 631 lux |
| Operating life | 60,000 h |

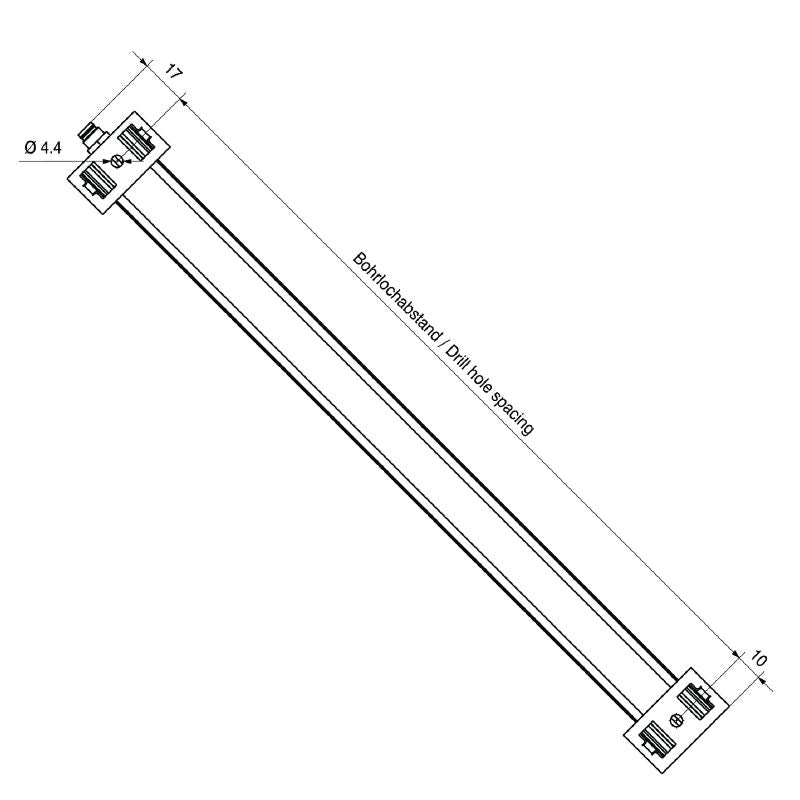

| Drill hole spacing | 849 mm |
| Material of LED cover | PMMA |
| Connection thread | M8 |
| Number of poles | 4 |
| Coding | A-coded |
| Shape of the LED module | Round |
| Type of connection | Pin connector |
| Tightening torque | 0.6 Nm |
