2598350000 - IP65 TPE Cable Housing, 3m Length, Robust Design
2598350000 - IP65 TPE Cable Housing, 3m Length, Robust Design
SKU: SKU: 2598350000 Download PDF
- 2598350000 - IP65 TPE Cable Housing, 3m Length, Robust Design
- 2598350000 - IP65 TPE Cable Housing, 3m Length, Robust Design
Couldn't load pickup availability
Description:

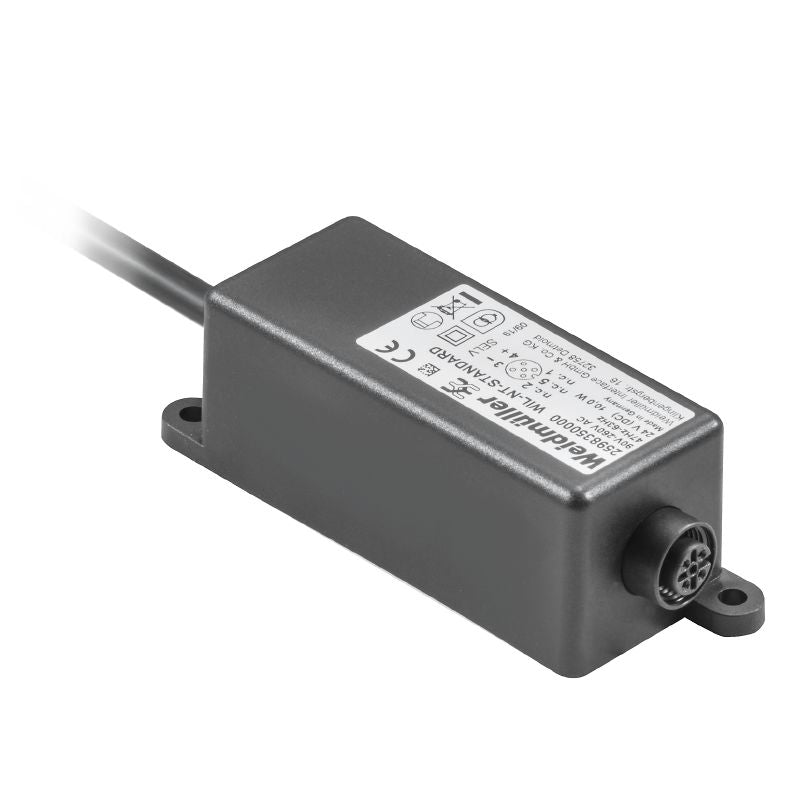

Presenting the WIL-NT-STANDARD, a high-quality product that meets RoHS compliance standards Its robust construction boasts dimensions of 100 mm in width, 32 mm in height, and a sleek depth of 34 mm, weighing in at 292 g This product operates seamlessly in temperatures ranging from -30°C to 50°C, ensuring reliable performance in various environments
Crafted with a durable TPE cable and housed in resilient PBT material, it provides longevity and functionality.
With a generous cable length of 3 meters and a core cross-section of 075 mm², this device offers versatile usage It operates on a rated voltage of 24 V DC with a current of 110 A, while installation is made simple with screw mounting Additionally, it features an IP65 protection rating when securely locked, ensuring it can withstand harsh conditions.
Features and Benefits:
•RoHS compliant without exemptions.
•Cable material is TPE with a black sheath.
•Housing is primarily made of PBT.
•IP65 protection degree when locked.
•Input frequency ranges from 47 to 63 Hz.
•Short-circuit, overload, and over-heating protections are included.
•Safety standard is SELV according to EN 60950 and EN 61347-2-13.
Specifications:

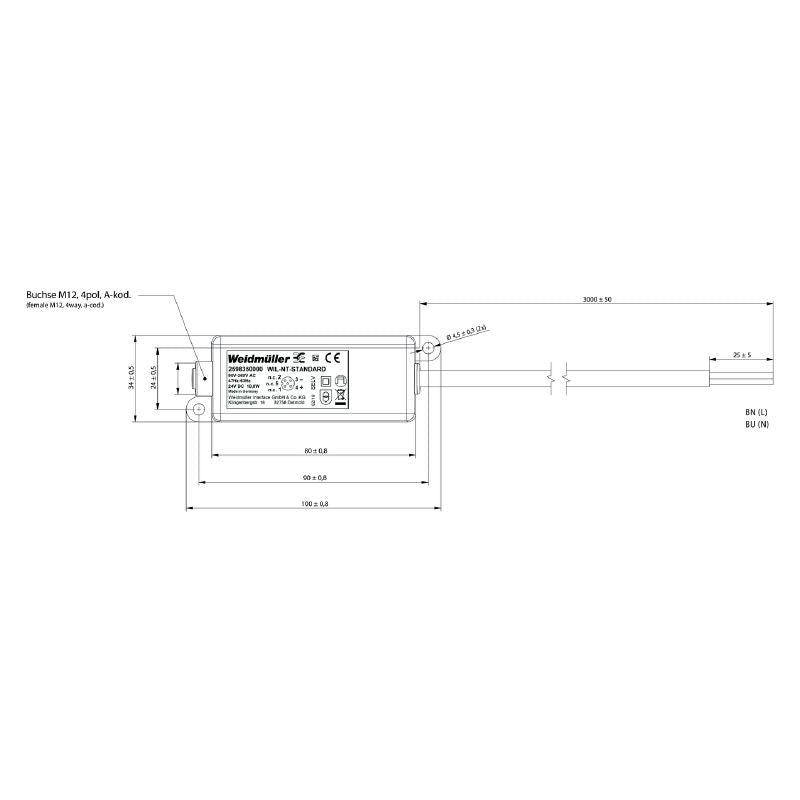

| Depth | 34 mm |
| Height | 32 mm |
| Width | 100 mm |
| Net weight | 292 g |
| Operating temperature | -30 - 50°C |
| Cable length | 3 m |
| Core cross-section | 0.75 mm² |
| Rated voltage | 24 V DC |
| Rated current | 1.10 A |
| Output power | 10 W |
| Rated output voltage | 24 V DC |
| Output current, max. | 0.4 A |
| Type of mounting | Screw mounting |
| Input fuse (internal) | Yes |
| Protection class | II |
| Safety extra-low voltage | Yes |
| Safety standard | SELV according to EN 60950, EN 61347-2-13 |
