Description:

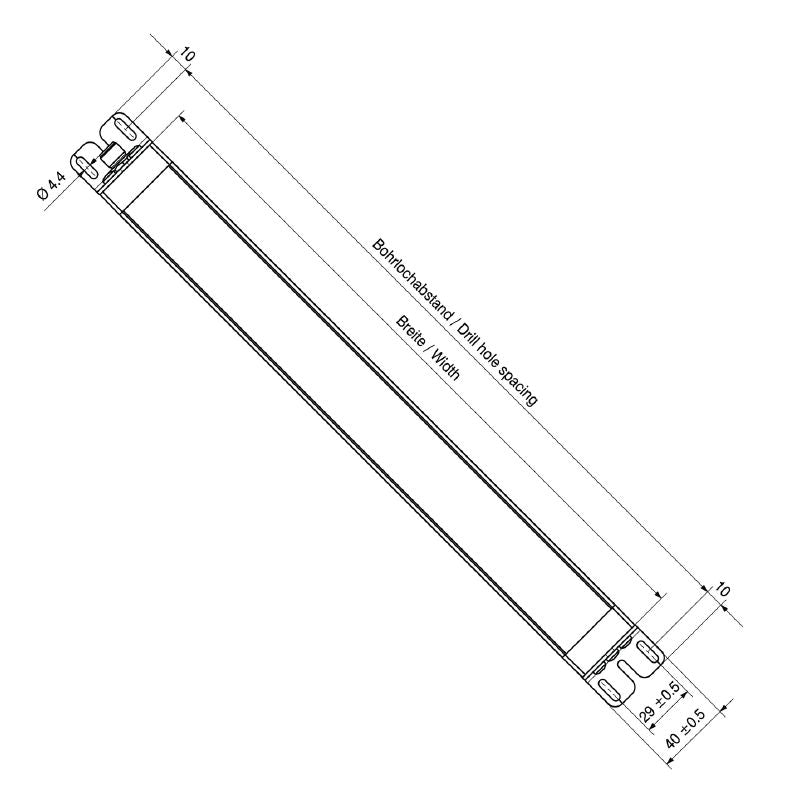

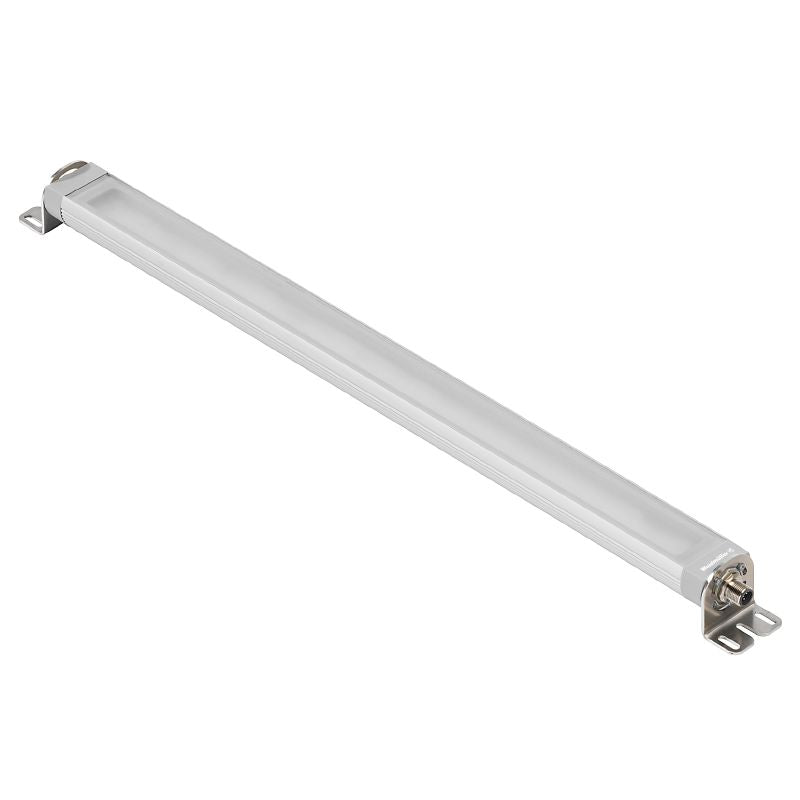

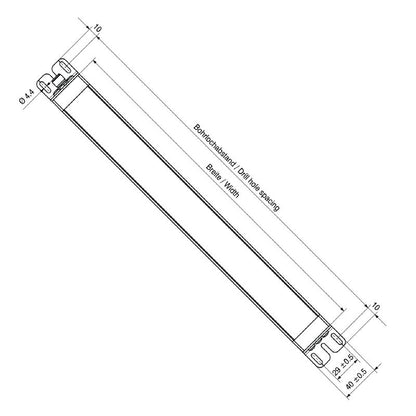

Introducing the M12X connector, crafted from durable hard anodized aluminum This versatile component is rated for a voltage of 24 V DC and supports a current of 5542 mA, delivering a power output of 133 W The connector is optimized for screw mounting, featuring a drill hole spacing of 570 mm Its attached LED is dimmable and promises an impressive lifespan of 60,000 hours Please note, this module does not accommodate an additional LED attachment and meets RoHS compliance standards, ensuring it adheres to environmental regulations.
Features and Benefits:
•The product has a protection degree of IP67.
•Light colour temperature of 5700K.
•Emitting angle of 100 degrees.
•Light current of 1,359 lumens.
•Illumination level of 489 lux.
Specifications:
| Depth | 40 mm |
| Height | 42 mm |
| Width | 540 mm |
| Operating temperature | -20 - 45°C |
| Number of poles | 5 |
| Connection thread | M12 |
| Wiring | Pin 1: control white LED 24V DC, Pin 2: NC, Pin 3: GND(-), Pin 4: NC, Pin 5: NC |
| Dimmable | Yes |
| Type of connection | Pin connector |
| Type of mounting | Screw mounting |
| Material of LED cover | ESG |
| Rated voltage | 24 V DC |
| Rated current | 554.2 mA |
| Power | 13.3 W |
| Operating life | 60.000 h |
| Protection degree | IP67 |
| Light colour (CCT) | 5700K |
| Light current | 1,359 lm |
| Emitting angle | 100 ° |
| Illumination level | 489 lux |
| Housing main material | hard anodised aluminium |
