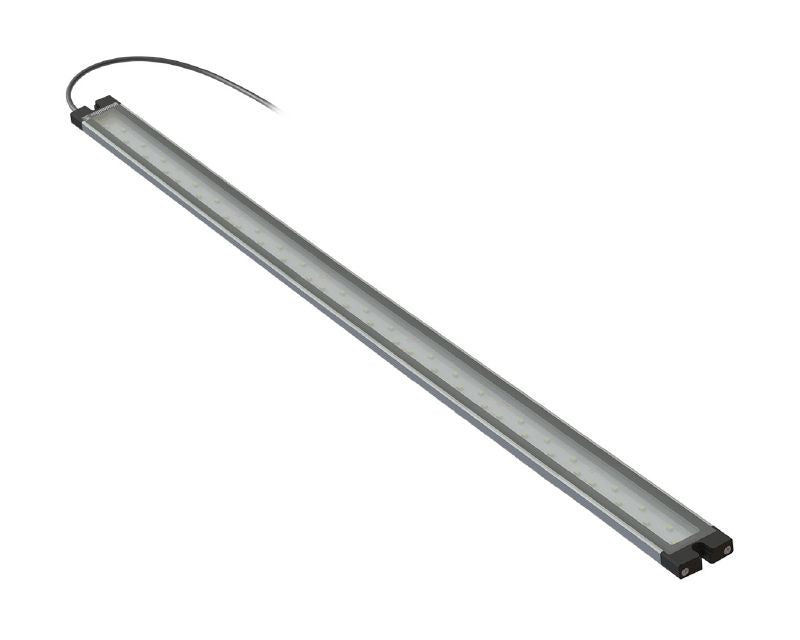

2821250000 - 3m Black PUR Cable, IP67, 4000K, UL Certified

2821250000 - 3m Black PUR Cable, IP67, 4000K, UL Certified

SKU: SKU: 2821250000 Download PDF

Variant:
  • 2821250000 - 3m Black PUR Cable, IP67, 4000K, UL Certified
Regular price Now $284.84
Regular price BEFORE   $0.00 Sale price Now $284.84
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

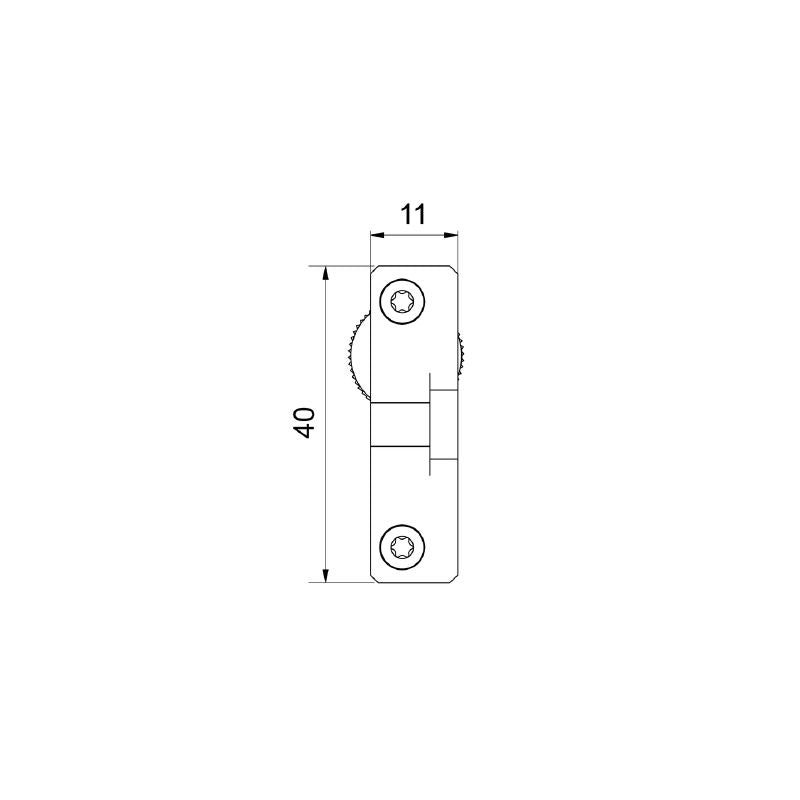

This product is designed with RoHS compliance and carries a UL certification, identified by certificate number E354496 With dimensions of 40 mm in depth, 8 mm in height, and 765 mm in width (approximately 1575 inches deep and 0315 inches high), it incorporates RoHS exemptions and includes Lead (7439-92-1) Crafted from durable PUR material, the cable is presented in a striking black color and features a robust hard anodized aluminum casing.

It measures 3 meters in length and has a core cross-section of 034 mm² Operating at a rated voltage of 24 V DC, it supports a maximum current of 1078 A, yielding a total power output of 259 W The LED module emits a light color temperature of 4000K and delivers an impressive 3,171 lumens through its 49 built-in LEDs Boasting an IP67 rating, this product offers excellent protection against dust and water ingress, ensuring reliable performance.

The LEDs have an anticipated lifespan of 60,000 hours, making this an efficient and long-lasting lighting solution.

Features and Benefits:

    •Dimmable.

    •Screw mounting capability.

    •Rectangular LED module shape.

    •Impact resistance rating of IK05.

    •Environmental compliance under REACH.

    •Protection degree rated IP67.

Specifications:

 Operating temperature -20 - 60°C
 Cable Material PUR
 Sheathing colour black
 Connection data LED Modul is attachable: no; Version: Cable end open; Coding: A-coded; Connection thread: without; Wiring: Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue)
 Rated voltage 24 V DC
 Rated current 1.078 A
 Power 25.9 W
 Number of LEDs 49
 Light colour (CCT) 4000K
 Light current 3,171 lm
 Emitting angle 40°
 Illumination level 941 lux
 Operating life 60,000 h

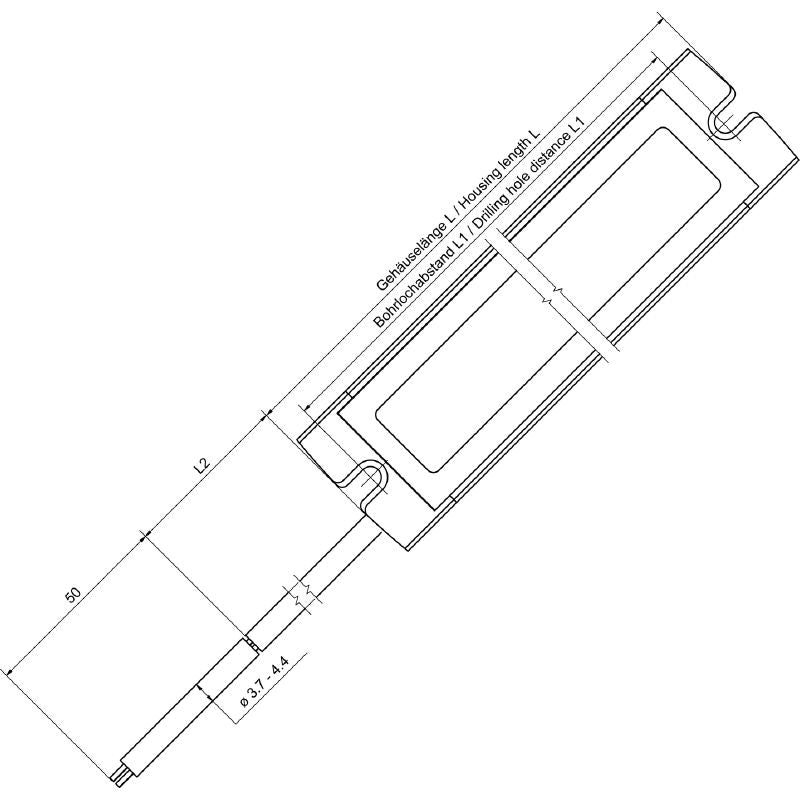

 Drill hole spacing 750 mm
 Efficiency class (according to EU Directive No. 874/2012) F
 Material of LED cover ESG
 Material of end caps PBT
 Recommended class according to UL for use of an power supply NEC Class 2
