2821340000 - RoHS Compliant 765mm Wide Certified Product, 40mm Depth

Description:

This product adheres to RoHS standards and has been awarded UL certification, identified by certificate number E354496 When ordering, please use order number 2821340000, as each order includes a single unit The product measures 765 mm wide, 40 mm deep, and 8 mm high, with a total weight of 226 grams It operates effectively in temperatures ranging from -20°C to 60°C Additionally, it is RoHS compliant, with a specific exemption, and recognizes lead (7439-92-1) as a substance of very high concern (SVHC) under the REACH regulations.

Features and Benefits:

•The cable material is PUR with a black sheathing color..

•The housing is constructed from hard anodised aluminium..

•Cable length measures 0.3 m..

•The core cross-section is 0.34 mm²..

•The connection thread is M12 with a tightening torque of 0.8 Nm..

•Pin 4 controls a white LED, and Pin 3 is wired to blue..

•The rated voltage is 24 V DC and the rated current is 1.1 A, providing a power output of 26.4 W..

•The LED module can emit a warm white light at 2700K with a light current of 2,908 lumens..

•The module has a viewing angle of 40° and an illumination level of 886 lux, with an operating life of 60,000 hours..

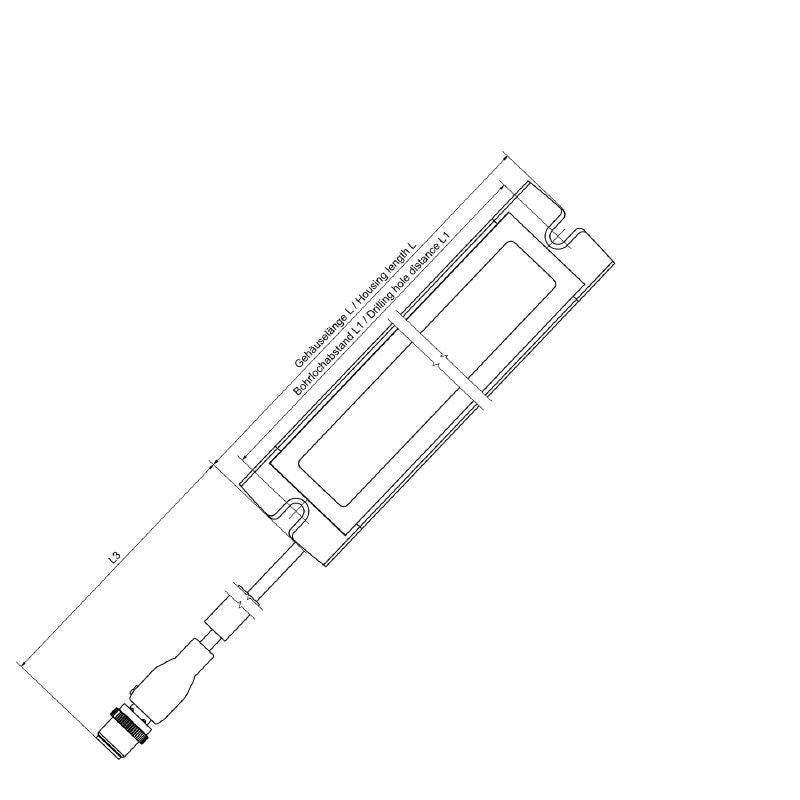

•It is designed for screw mounting and has a drill hole spacing of 750 mm..

•The impact resistance rating is IK05 and it has a protection degree of IP67..

•The LED cover is made of ESG material while the end caps are made of PBT..

Specifications:
