2899690000 - Durable LED Module 24V with Anodised Aluminium Housing
2899690000 - Durable LED Module 24V with Anodised Aluminium Housing
SKU: SKU: 2899690000 Download PDF
- 2899690000 - Durable LED Module 24V with Anodised Aluminium Housing
- 2899690000 - Durable LED Module 24V with Anodised Aluminium Housing
Couldn't load pickup availability
Description:

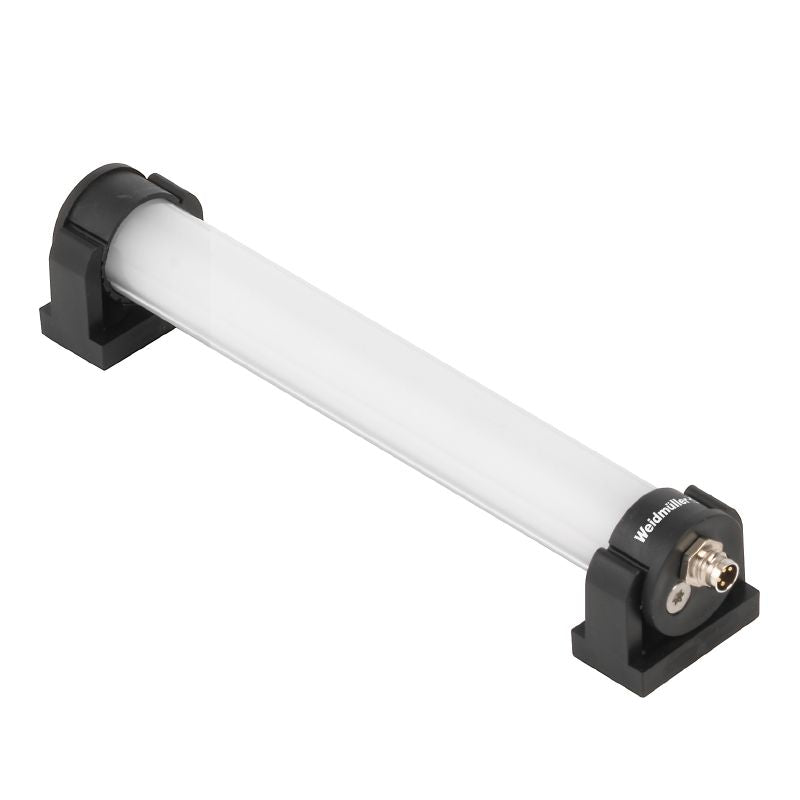

Introducing a versatile LED module crafted from durable hard anodised aluminium This unit meets RoHS compliance standards and includes an M8 direct connection thread for easy installation With a rated voltage of 24 V DC and a current draw of 1417 mA, it efficiently delivers 34 W of power Experience customized lighting with its stepless dimming feature, offering an impressive output of 242 lumens at a color temperature of 5700K.
Designed to function in temperatures ranging from -20 to 45°C, this module boasts an extensive lifespan of 60,000 hours It achieves an illumination level of 113 lux within a wide 120-degree beam angle and can be securely mounted using screws spaced 149 mm apart.
Features and Benefits:
•Dimmable with stepless dimming.
•Light color of 5700K.
•Operating life of 60,000 hours.
•IP54 protection degree.
•Shape of the LED module is round.
•Screw mounting type.
•Housing made from hard anodised aluminium.
Specifications:

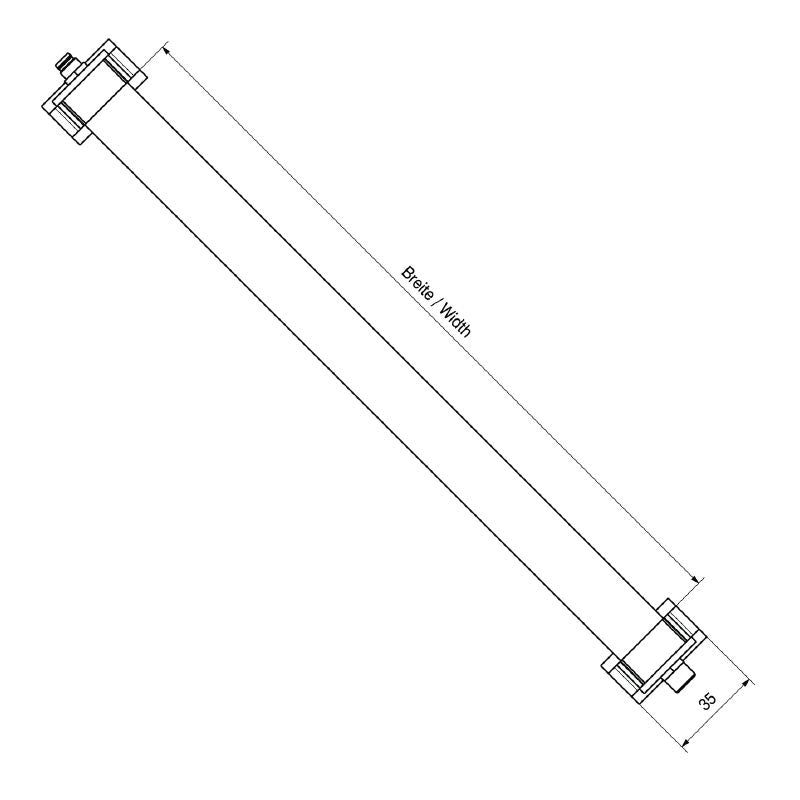

| Dimensions | {'Depth': '35 mm', 'Height': '35 mm', 'Width': '140 mm'} |
| Connection Data | {'LED Module': 'attachable', 'Version': 'pin, straight - socket, straight', 'Number of poles': '4', 'Coding': 'A-coded', 'Tightening torque': '0.6 Nm'} |
| Electric Data | {'Rated voltage': '24 V DC', 'Rated current': '141.7 mA', 'Power': '3.4 W'} |
| Light Data | {'Light current': '242 lm', 'Emitting angle': '120 °', 'Illumination level': '113 lux'} |

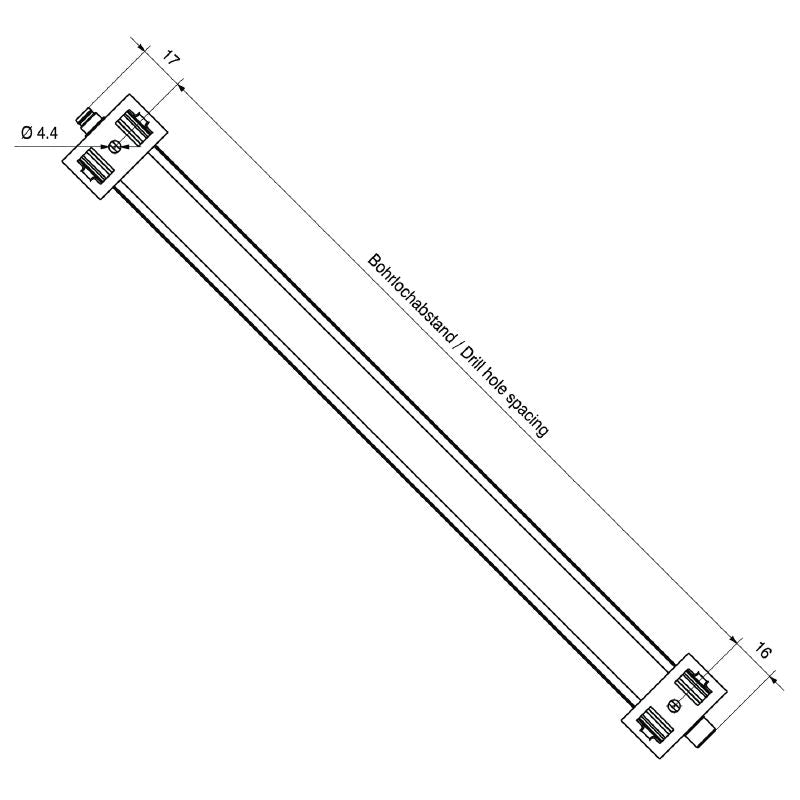

| Mounting | {'Type of mounting': 'Screw mounting', 'Drill hole spacing': '149 mm'} |
| Material Data | {'Material of LED cover': 'PMMA'} |
| Environmental Product Compliance | {'RoHS Compliance Status': 'Compliant with exemption', 'RoHS Exemption': '6c', 'REACH SVHC': 'Lead 7439-92-1'} |
