Description:

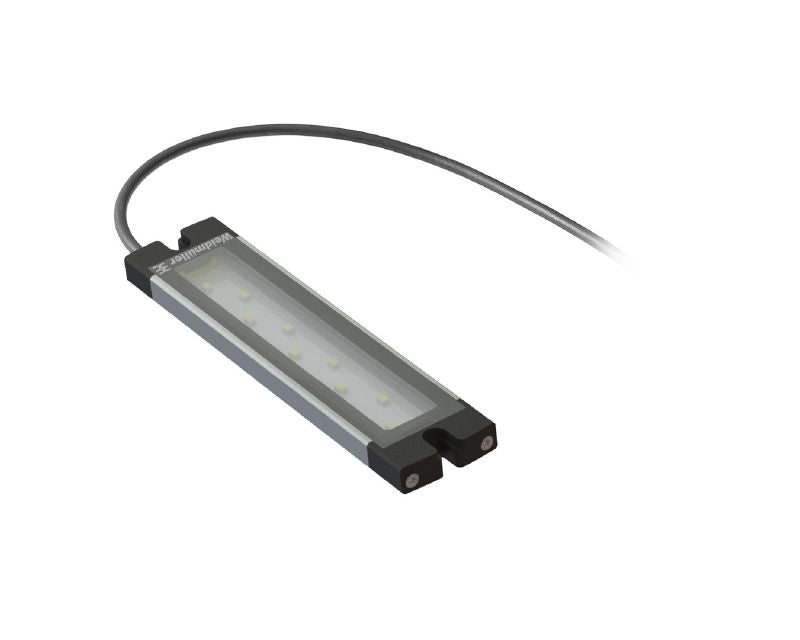

Introducing a versatile cable, part number WIL-LWXXXX-6500D024-145SXX50BXXXXXXXX, perfect for a range of applications This cable complies with RoHS regulations and boasts a robust hard anodized aluminum casing It features a sleek black sheathing and is constructed from durable PUR material Spanning 5 meters in length, it has a core cross-section of 034 mm² and supports a voltage rating of 24 V DC with a current of 0.
162 A, generating a power output of 39 W Additionally, this cable is dimmable and works seamlessly with various LED setups, making it an excellent choice for your needs.
Features and Benefits:
•Operating temperature range from -20 to 60°C.
•Compliant with RoHS without exemption.
•IP67 protection grade.
•IK05 impact resistance.
•Operating life of 60,000 hours.
•Dimmable capability.
•Pre-assembled cable type connection.
•Mounting type is screw mounting.
Specifications:

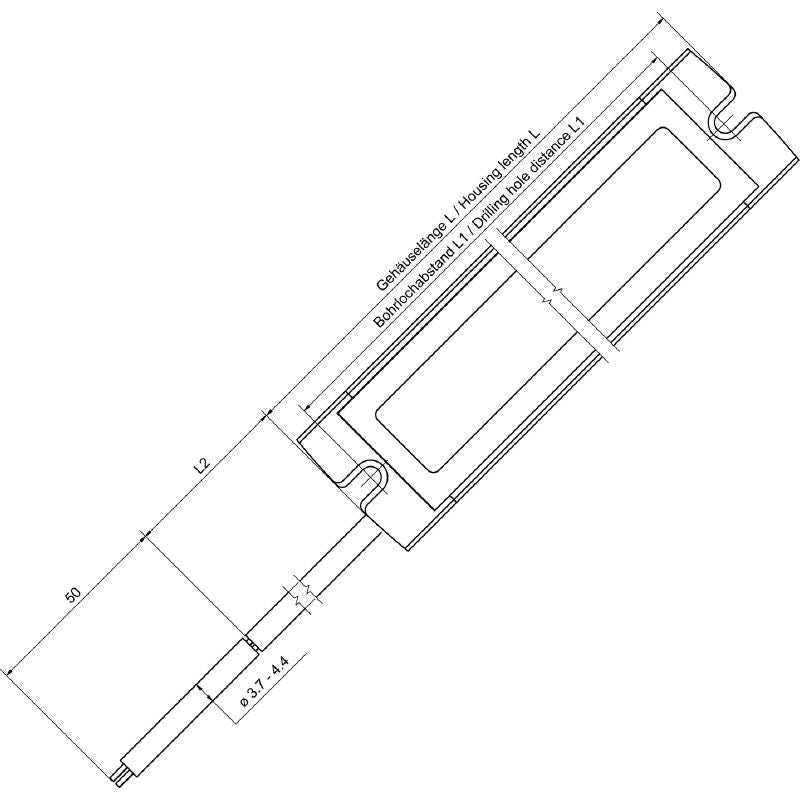

| Depth | 40 mm |
| Height | 8 mm |
| Width | 145 mm |
| Cable Length | 5 m |
| Number of Poles | 2 |
| LED Module Attachability | no |
| Rated Voltage | 24 V DC |
| Rated Current | 0.162 A |
| Power | 3.9 W |
| Number of LEDs | 7 |
| Light Colour (CCT) | 6500K |
| Luminosity | 3470 cd |
| Light Current | 443 lm |
| Emitting Angle | 40 ° |
| Illumination Level | 145 lux |
| Drill Hole Spacing | 130 mm |
| Housing Material | hard anodised aluminium |
| Material of End Caps | PBT |
| Material of LED Cover | ESG |
| Efficiency Class | G |
| Environmental Compliance | No SVHC above 0.1 wt% |
| UL File Number | E354496 |
