2821320000 - Dimmable 24V LED Module, 2700K, 2077 Lumens, IP67 Rated
2821320000 - Dimmable 24V LED Module, 2700K, 2077 Lumens, IP67 Rated
SKU: SKU: 2821320000 Download PDF
- 2821320000 - Dimmable 24V LED Module, 2700K, 2077 Lumens, IP67 Rated
- 2821320000 - Dimmable 24V LED Module, 2700K, 2077 Lumens, IP67 Rated
Couldn't load pickup availability
Description:
Illuminate your space with this versatile LED module, designed to operate on a 24 V DC power supply while drawing a current of 07 A for a robust total output of 188 W Enjoy the warm white glow produced at a cozy color temperature of 2700K, powered by 35 high-efficiency LEDs This dimmable unit generates an impressive light output of 2,077 lumens, offering an illumination level of 661 lux within a 40-degree beam angle.
Built to last, this module boasts an operational lifespan of 60,000 hours, making it a reliable choice for long-term use It’s engineered for secure screw mounting with a drill hole spacing of 540 mm With an impressive IP67 rating, this product is resistant to both dust and water, while also featuring IK05 impact resistance for added durability.
Features and Benefits:
•Dimmable functionality.
•Warm white light at 2700K.
•Compact design with a rectangular shape.
•Long operational life of 60,000 hours.
•IP67 protection for moisture and dust resistance.
•IK05 impact resistance.
Specifications:
| Cable Material | PUR |
| Sheathing colour | black |
| Housing main material | hard anodised aluminium |
| Cable length | 3 m |
| Core cross-section | 0.34 mm² |
| Version | Cable end open |
| Number of poles | 2 |
| Coding | A-coded |
| Rated voltage | 24 V DC |
| Rated current | 0.7 A |
| Power | 18.8 W |
| Number of LEDs | 35 |
| Light colour (CCT) | 2700K |
| Light current | 2,077 lm |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |

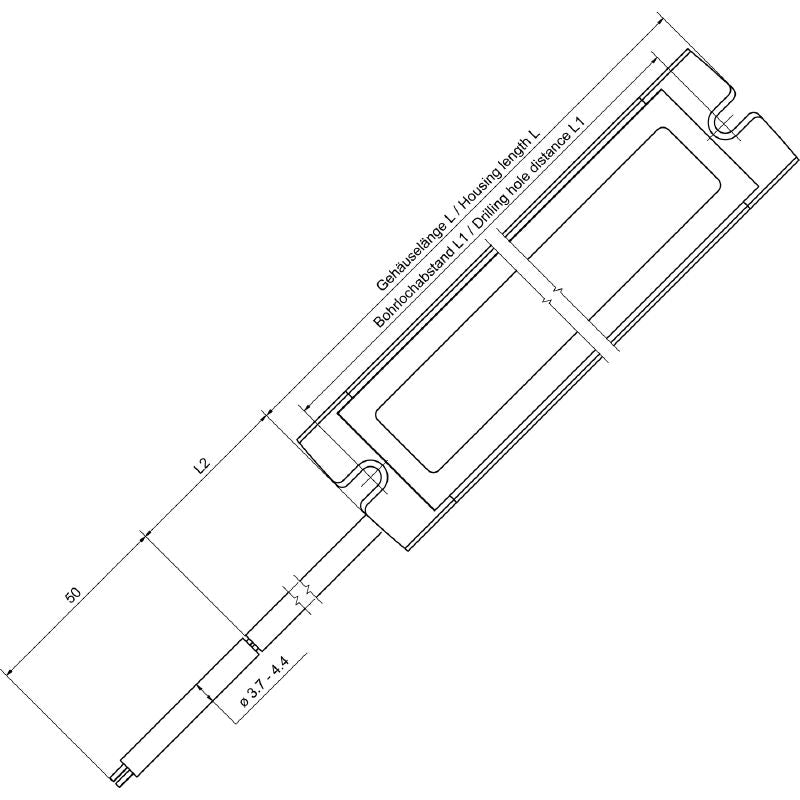

| Drill hole spacing | 540 mm |
| Protection degree | IP67 |
| Efficiency class | F |
