2625240000 - 0.3m PUR Cable with 14 LEDs, 24V DC
2625240000 - 0.3m PUR Cable with 14 LEDs, 24V DC
SKU: SKU: 2625240000 Download PDF
- 2625240000 - 0.3m PUR Cable with 14 LEDs, 24V DC
- 2625240000 - 0.3m PUR Cable with 14 LEDs, 24V DC
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

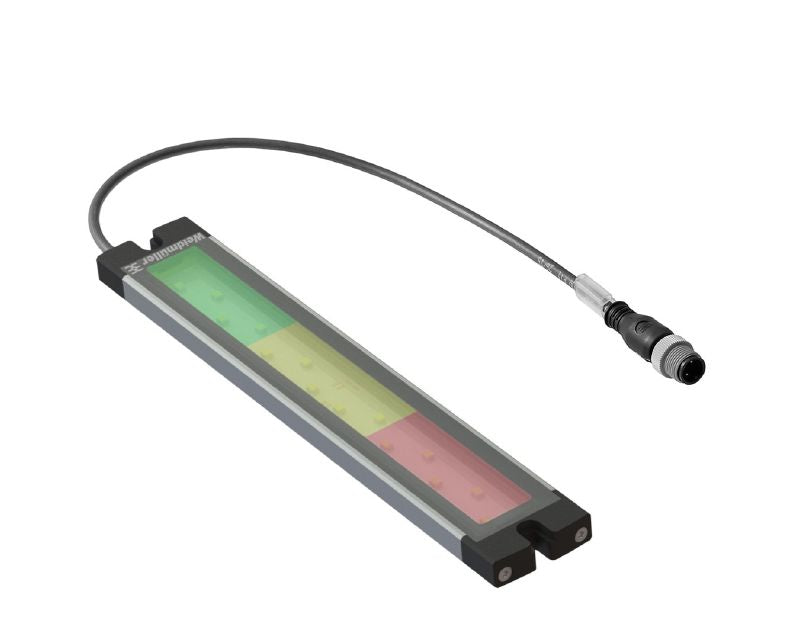

Introducing this pre-assembled 03-meter cable, specifically designed for versatility and reliability With a cross-section area of 034 mm², it is made from durable PUR material, featuring a black outer sheath and a robust hard anodised aluminium casing This cable operates efficiently in temperature ranges between -20°C to 60°C and meets RoHS compliance standards It is equipped with 14 vibrant LEDs in red, yellow, and green, operating at a rated voltage of 24 V DC and a current rating of 0.
36 A, ideal for a variety of electrical applications.
Features and Benefits:
•Compliant with RoHS and REACH standards.
•Rated for 60,000 hours of operational life.
•Dimmable design with a power output of 8.5 W.
•Impact resistance rated IK05 and protection degree IP67.
•Pre-assembled for ease of installation.

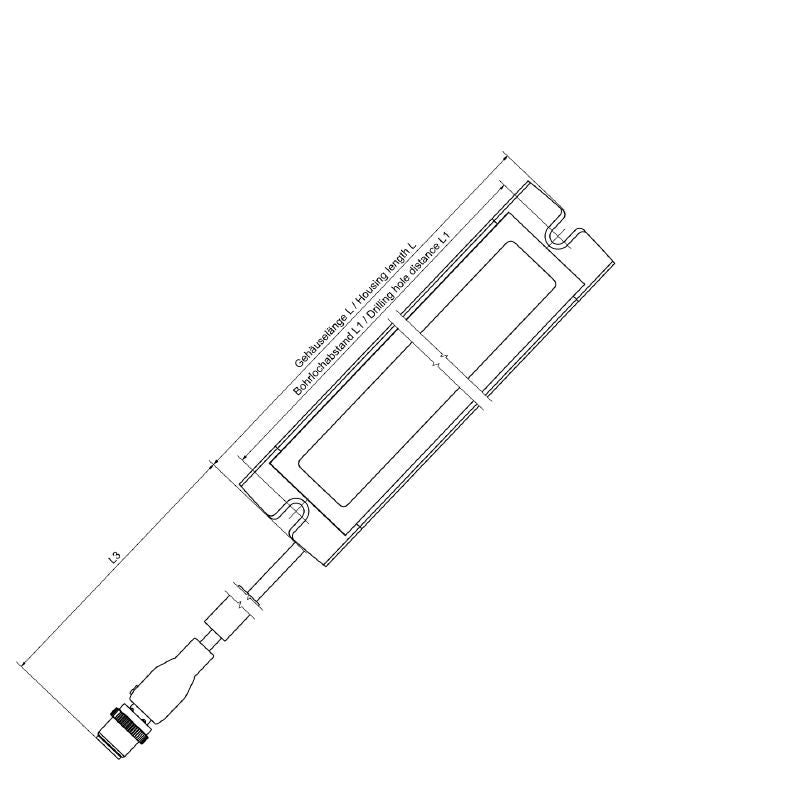

Specifications:
| Depth | 40 mm |
| Height | 8 mm |
| Width | 240 mm |
| Operating temperature | -20 - 60°C |
| Cable length | 0.3 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.36 A |
| Power | 8.5 W |
| Number of poles | 4 |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 14 |
| Light colour (CCT) | Red, Yellow, Green |
| Emitting angle | 40° |
| Type of mounting | Screw mounting |
| Drill hole spacing | 225 mm |
| Tightening torque | 0.8 Nm |
| Material of LED cover | ESG |
| Material of end caps | PBT |
