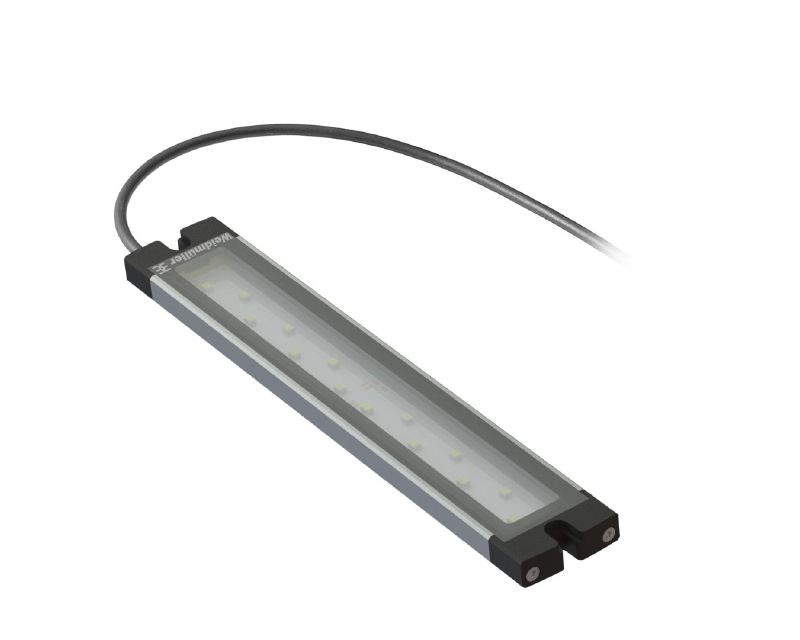

2527890000 - 3m Durable LED Module with Aluminum & PUR Construction
2527890000 - 3m Durable LED Module with Aluminum & PUR Construction
SKU: SKU: 2527890000 Download PDF
- 2527890000 - 3m Durable LED Module with Aluminum & PUR Construction
- 2527890000 - 3m Durable LED Module with Aluminum & PUR Construction
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Illuminate your space with this versatile 3-meter LED module, engineered for seamless connectivity Crafted from robust PUR material, it features an elegant black exterior The housing is made of hard anodised aluminum, providing exceptional durability, while the end caps are made from resilient PBT This LED module operates effectively in temperatures ranging from -20°C to 60°C and boasts an impressive lifespan of up to 60,000 hours, making it a reliable choice for various lighting needs.
Features and Benefits:
•Dimmable functionality.
•Rated voltage of 24 V DC and a current rating of 0.31 A.
•Output power of 7.5 W.
•Emits light at a brightness of 3,470 cd and in 6500K color temperature.
•Includes 14 LEDs with a light current of 886 lm and a 40° emitting angle.
•Illuminates at a level of 291 lux.
•IP67 protection degree ensuring resistance to water and dust.
•Impact resistance rated at IK05.
Specifications:
| Cable Length | 3 m |
| Core Cross-Section | 0.34 mm² |
| Type of Connection | Pre-assembled cable |
| Shape of the LED Module | Rectangular |
| Number of LEDs | 14 |
| Operating Life | 60,000 h |

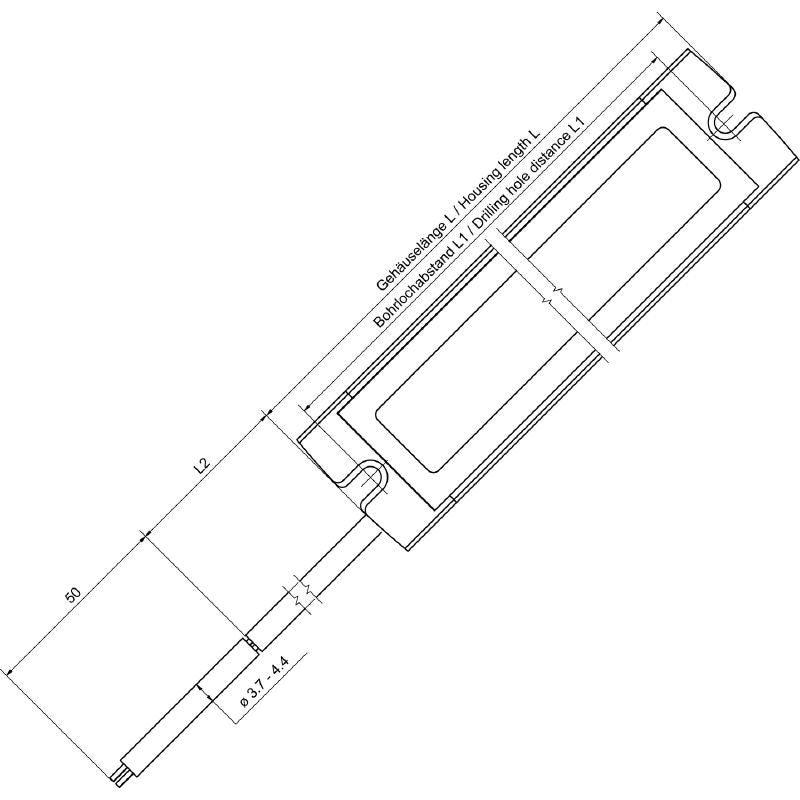

| Drill Hole Spacing | 225 mm |
| Protection Degree | IP67 |
| Efficiency Class | F |
| LED Cover Material | ESG |
| Housing Main Material | hard anodised aluminium |
