Description:

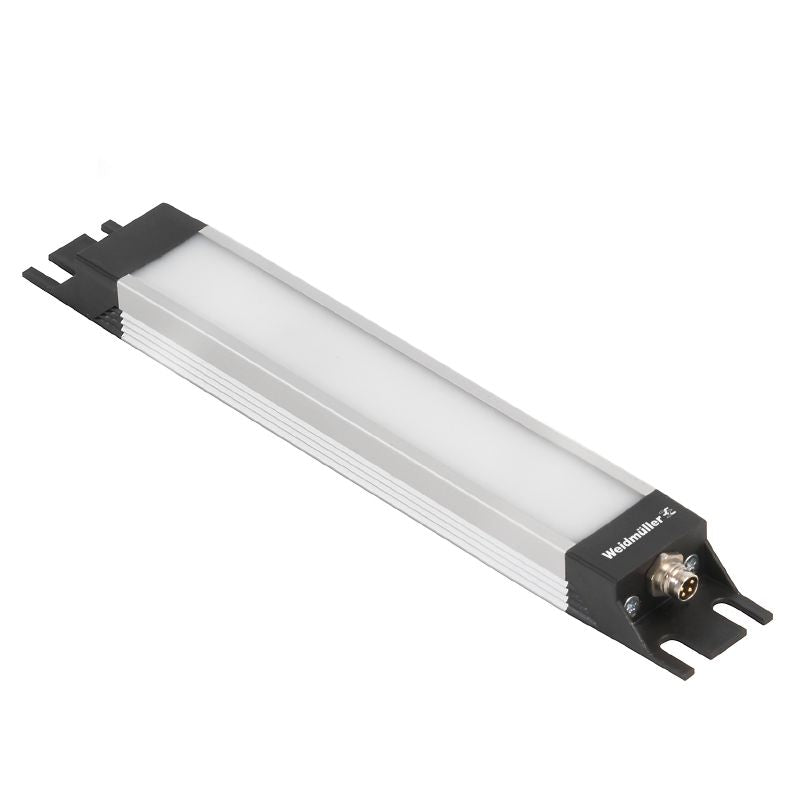

Introducing the WIL-SXXXX-FXSF-5700-X140-M8DX-S, a product that adheres to various environmental regulations, including RoHS compliance This uniquely identified device boasts dimensions of 30 mm in depth, 175 mm in height, and 140 mm in width, which convert to around 1181 inches, 0689 inches, and 5512 inches, respectively Weighing in at 130 grams, it's lightweight yet robust With an operational temperature range spanning from -20°C to 70°C, this versatile unit is designed to function effectively in diverse environments.
Features and Benefits:
•Made from hard anodised aluminium.
•LED module is attachable.
•Dimmable with stepless adjustment.
•Socket connection available.
•Screw mounting type.
Specifications:
| Operating temperature | -20 - 70°C |
| Number of poles | 4 |
| Rated voltage | 24 V DC |
| Rated current | 141.7 mA |
| Power | 3.4 W |
| Light colour (CCT) | 5700K |
| Light current | 422 lm |
| Protection degree | IP40 |
| Type of mounting | Screw mounting |
| Connection thread | M8 / M8 |
| Tightening torque | 0.6 Nm |
| Material of LED cover | PMMA |

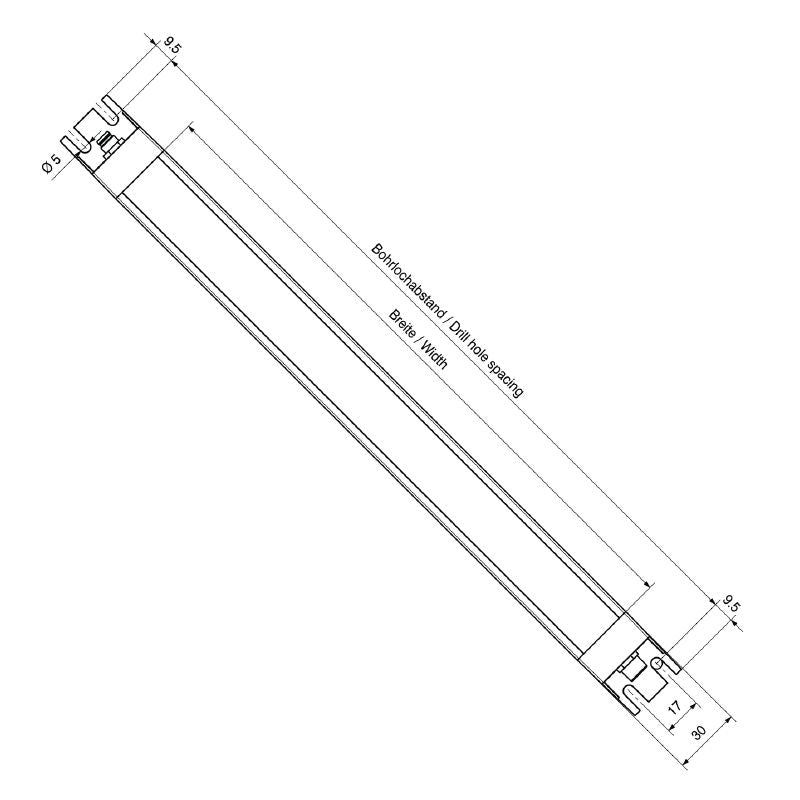

| Drill hole spacing | 196 mm |
| Compatibility | Classified from ETIM 6.0 to 10.0 and ECLASS 9.1 to 15.0 |
