Description:
Introducing a versatile 5-meter LED module, engineered to function effectively in temperatures ranging from -20 to 60 degrees Celsius This module is ideal for a wide array of uses and adheres to RoHS standards, ensuring safety and compliance Encased in a robust black PUR sheathing and crafted from hard anodised aluminium, it guarantees excellent durability and longevity
Equipped with 14 bright LEDs, this module emits a crisp white light at a color temperature of 6500K, delivering impressive luminosity of 220 cd and a total light output of 886 lm.
With an operating life expectancy of up to 60,000 hours, it is designed for long-lasting performance The IP67 rating ensures it is well-protected against dust and water, while the magnetic mounting system allows for easy installation, with drill hole spacing of 225 mm
Furthermore, this dimmable module operates on 12 V DC with a maximum current of 070 A, providing an efficient power consumption of 8.
5 W Enjoy the perfect blend of functionality and durability with this high-performance LED module.
Features and Benefits:
•Dimmable feature.
•Durable hard anodised aluminium housing.
•Black PUR sheathing for protection.
•Compact design with a rectangular shape.
•High luminosity of 220 cd.
•Operating life of 60,000 hours.
•IP67 protection degree.
Specifications:
| Operating temperature | -20 - 60°C |
| Cable length | 5 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 12 V DC |
| Rated current | 0,70 A |
| Power | 8,5 W |
| Number of LEDs | 14 |
| Light colour (CCT) | 6500K |
| Luminosity | 220 cd |
| Light current | 886 lm |
| Emitting angle | 40° |
| Illumination level | 291 lux |
| Type of mounting | Magnet |

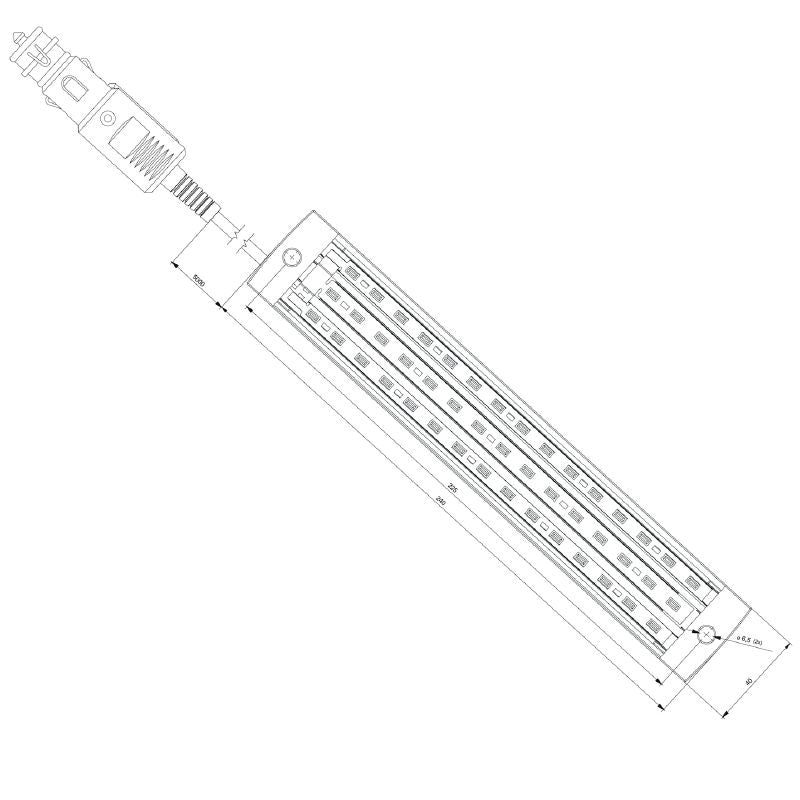

| Drill hole spacing | 225 mm |
| Impact resistance | IK05 |
| Protection degree | IP67 |
