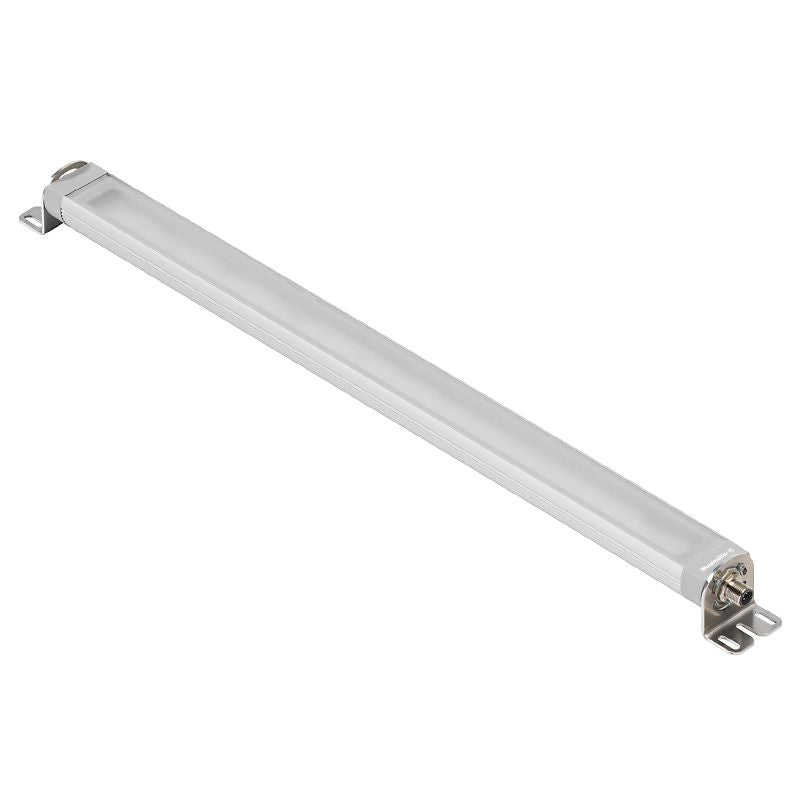

2899260000 - 540mm LED Control Unit, IP67, Anodised Aluminium Housing

Description:

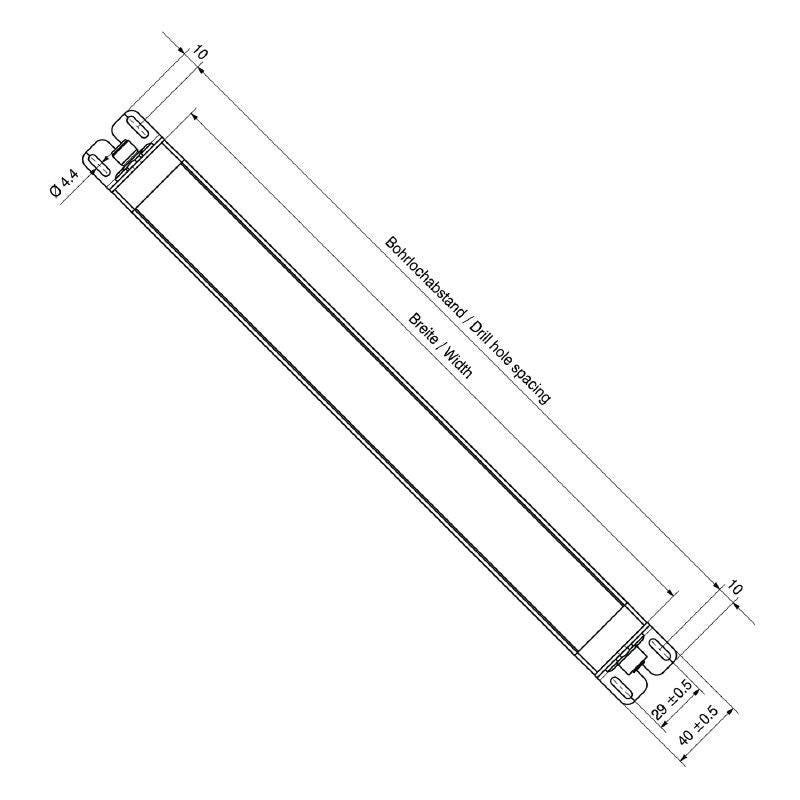

This innovative product is designed with compliance to ROHS standards and carries the UL certification number E354496 Measuring 40 mm in depth (1575 inches), 42 mm in height (1654 inches), and 540 mm in width (2126 inches), it boasts a lightweight construction at just 703 grams Optimized for temperatures ranging from -20°C to 45°C, this unit features a robust housing made from hard anodised aluminium and can accommodate up to four attachable LED modules.

The connection is facilitated through an M12 thread with a tightening torque of 08 Nm Operating on a rated voltage of 24 V DC, it draws a current of 5542 mA with a power consumption of 133 W Additionally, it incorporates an advanced electronic component to control a white LED emitting a stunning 5700K color temperature, producing a light output of 1,367 lumens and achieving an impressive illumination level of 503 lux.

With an anticipated operational lifespan of 60,000 hours and a protective rating of IP67, this product is engineered for reliability and performance.

Features and Benefits:

•ROHS compliant.

•UL approved.

•Dimmable LED module.

•Maximum attachment of 4 LED modules.

•Electronic equipment is not applicable for rolling stock.

•Screw mounting type.

•Suitable for outdoor usage with protection degree IP67.

Specifications:
