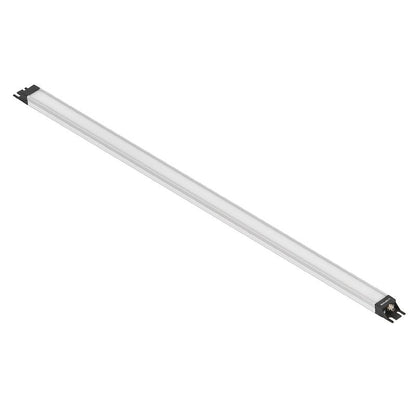

2899980000 - UL Certified 840mm Robust Device, 30mm Depth, RoHS Compliant
2899980000 - UL Certified 840mm Robust Device, 30mm Depth, RoHS Compliant
SKU: SKU: 2899980000 Download PDF
- 2899980000 - UL Certified 840mm Robust Device, 30mm Depth, RoHS Compliant
- 2899980000 - UL Certified 840mm Robust Device, 30mm Depth, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Achieve peace of mind with a product that showcases both quality and safety, featuring compliance with ROHS standards and UL certification (E354496) With dimensions of 840 mm in width, 30 mm in depth, and 175 mm in height, its sturdy construction weighs only 639 g This item functions smoothly across a temperature spectrum of -20 to 70°C In addition to RoHS exemptions, it meets various ETIM and ECLASS classifications, making it a reliable choice for your needs.
Features and Benefits:
•Housing made of hard anodised aluminium.
•LED module is attachable.
•Dimmable with stepless dimming.
•Operating life of 60,000 hours.
•Protection degree IP40.
•Shape of the LED module is round.
Specifications:
| Operating temperature | -20 - 70°C |
| Number of poles | 4 |
| Rated voltage | 24 V DC |
| Rated current | 845.8 mA |
| Power | 20.3 W |
| Light colour (CCT) | 5700K |
| Light current | 2,532 lm |
| Emitting angle | 100° |
| Illumination level | 819 lux |
| Type of mounting | Screw mounting |

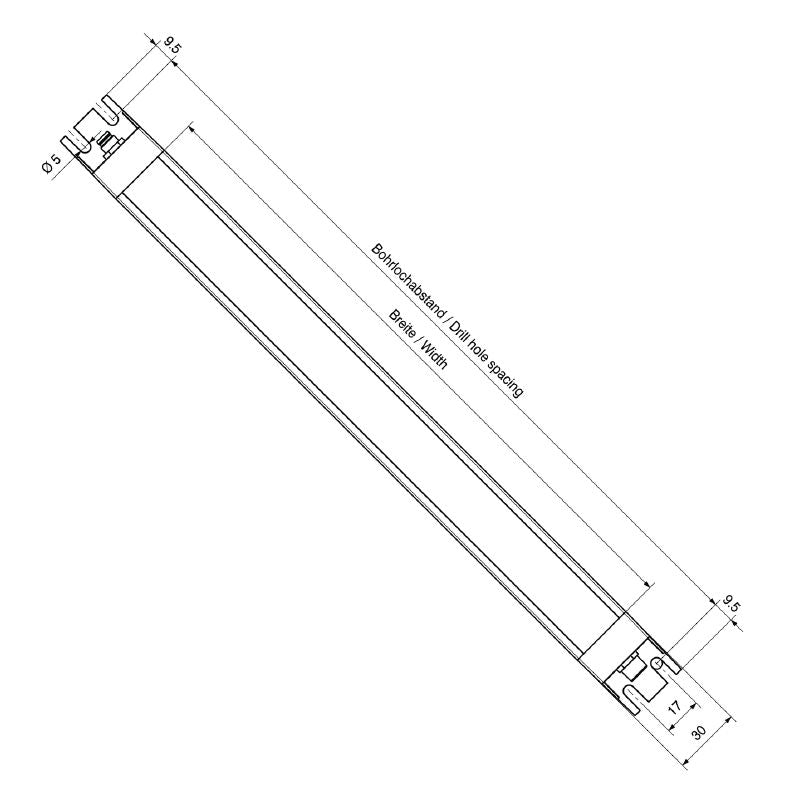

| Drill hole spacing | 896 mm |
| Tightening torque | 0.6 Nm |
| Wiring | Pin 1: control white LED 24V DC, Pin 2: NC, Pin 3: GND(-), Pin 4: NC |
| Material of LED cover | PMMA |
| Environmental Compliance | Compliant with exemption |
| RoHS Exemption | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 37ebc061-1fa2-4387-80af-82299a5c3412 |
