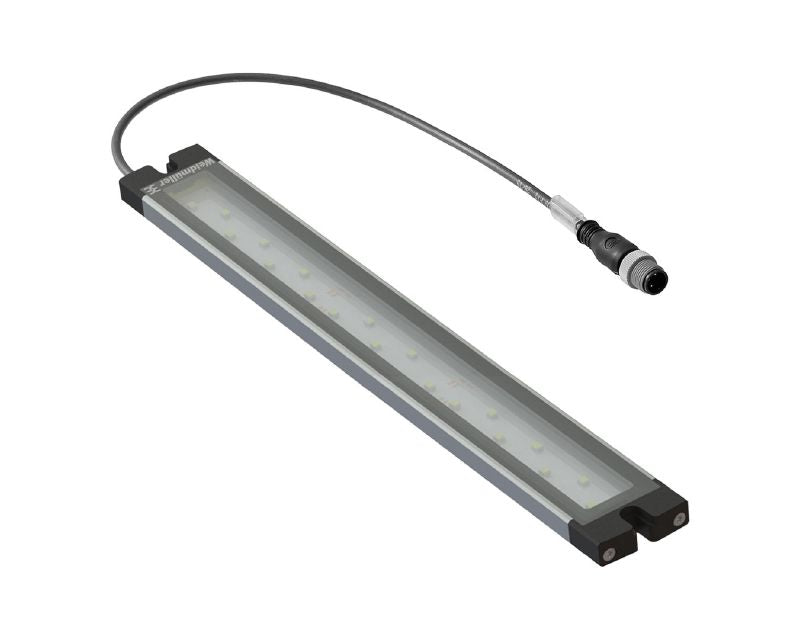

2535810000 - 0.3m Pre-Assembled LED Cable with Durable Aluminium Housing
2535810000 - 0.3m Pre-Assembled LED Cable with Durable Aluminium Housing
SKU: SKU: 2535810000 Download PDF
- 2535810000 - 0.3m Pre-Assembled LED Cable with Durable Aluminium Housing
- 2535810000 - 0.3m Pre-Assembled LED Cable with Durable Aluminium Housing
Couldn't load pickup availability
Description:
Introducing a high-performance pre-assembled cable tailored for LED modules Measuring a compact 03 meters, this cable boasts a robust housing crafted from hard anodised aluminium, paired with a versatile black PUR cable It features a core cross-section of 034 mm² and is rated for 24 V DC, handling current up to 0477 A Specifically designed with an A coding for M12 thread connections, it requires a tightening torque of 0.
8 Nm to ensure secure installation Perfectly engineered for reliable LED module connectivity.
Features and Benefits:
•Dimmable.
•Operating temperature ranges from -20°C to 60°C.
•Light output of 1,329 lumens with a luminosity of 3,470 cd.
•IK05 impact resistance and IP67 protection degree.
•Long operating life of 60,000 hours.
•Rectangular shape of the LED module with a light color temperature of 6500K.
Specifications:
| Cable Length | 0.3 m |
| Depth | 40 mm |
| Height | 8 mm |
| Width | 350 mm |
| Rated Current | 0.477 A |
| Power | 11.5 W |
| Number of LEDs | 21 |
| Emitting Angle | 40° |

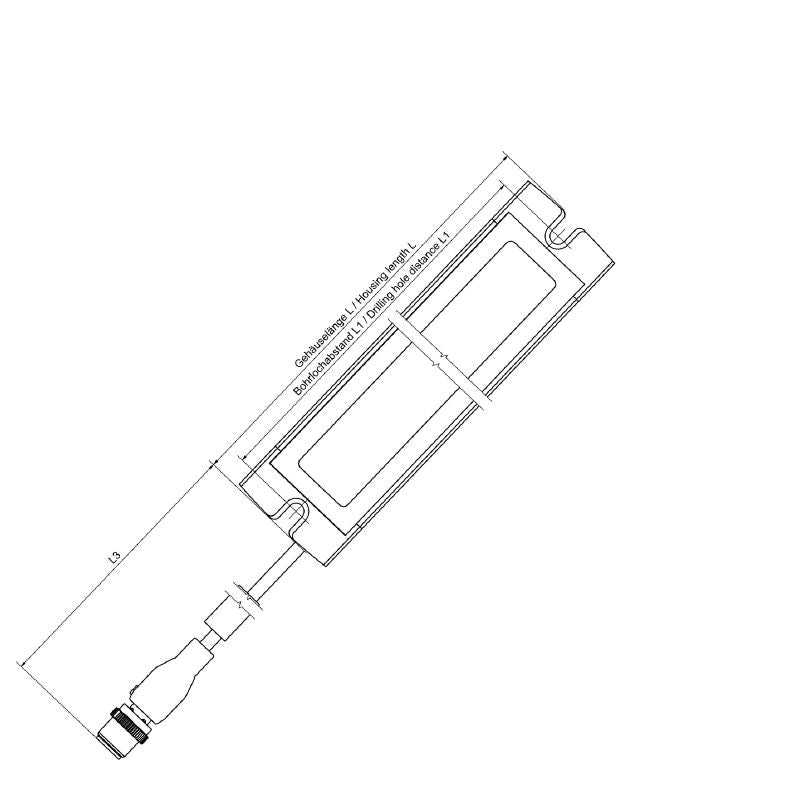

| Drill Hole Spacing | 335 mm |
| Efficiency Class | G |
| Material of LED Cover | ESG |
| Protection Degree | IP67 |
| Type of Connection | Pre-assembled cable |
| Housing Main Material | hard anodised aluminium |
| RoHS Compliance Status | Compliant with exemption |
