2821360000 - 3m LED Module Cable, 24V DC, 0.34 mm², IP67, Warm White
2821360000 - 3m LED Module Cable, 24V DC, 0.34 mm², IP67, Warm White
SKU: SKU: 2821360000 Download PDF
- 2821360000 - 3m LED Module Cable, 24V DC, 0.34 mm², IP67, Warm White
- 2821360000 - 3m LED Module Cable, 24V DC, 0.34 mm², IP67, Warm White
Couldn't load pickup availability
Description:

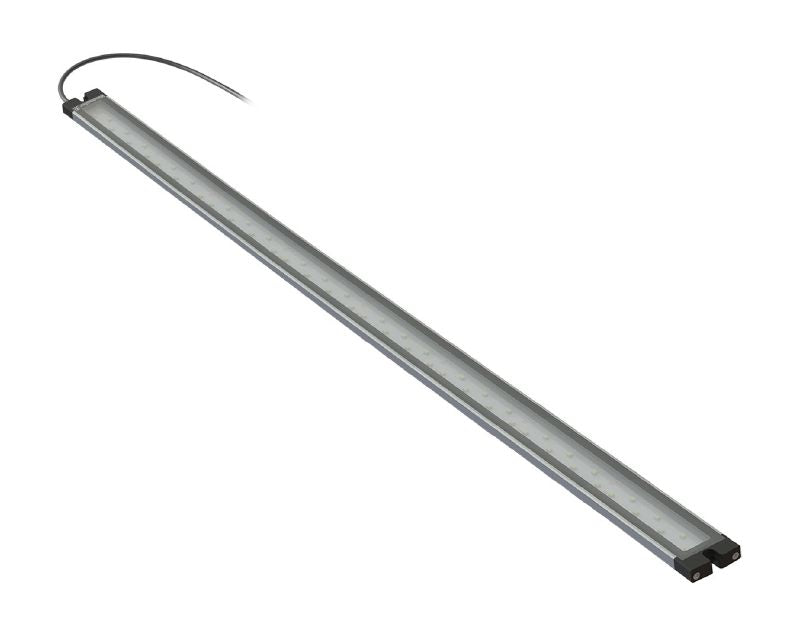

Experience reliable performance with the LED module cable model WIL-LWXXXX-2700D024-860SXX30BXXXXXXXX Measuring 3 meters in length, this cable features a core cross-section of 034 mm², making it both efficient and long-lasting It operates seamlessly within a temperature range of -20 to 60°C, with a power consumption of 291 W and a rated voltage of 24 V DC Designed with an open end, it includes a rectangular LED module intended for screw mounting.
This product adheres to RoHS standards, ensuring safety and eco-friendliness With an IK05 impact resistance and an IP67 protection rating, it's suitable for various environments The warm white light emitted has a 2700K color temperature, delivering a powerful light output of 3,323 lumens and an impressive illumination level of 1,007 lux Enjoy a remarkable lifespan of 60,000 hours, making this module an excellent choice for diverse lighting needs.
Features and Benefits:
•Dimmable.
•Light color at 2700K, warm white.
•Emitting angle of 40°.
•Number of LEDs: 56.
•Electronic equipment not intended for rolling stock.
•Recommended for NEC Class 2 power supply usage.
•Hard anodised aluminium housing and end caps made of PBT.
•Screw mounting design for easy installation.
Specifications:
| Operating temperature | -20 - 60°C |
| Cable Material | PUR |
| Cable length | 3 m |
| Version | Cable end open |
| Rated voltage | 24 V DC |
| Rated current | 1.21 A |
| Power | 29.1 W |
| Number of poles | 2 |
| Shape of the LED module | Rectangular |
| Light current | 3,323 lm |
| Illumination level | 1,007 lux |
| Operating life | 60,000 h |

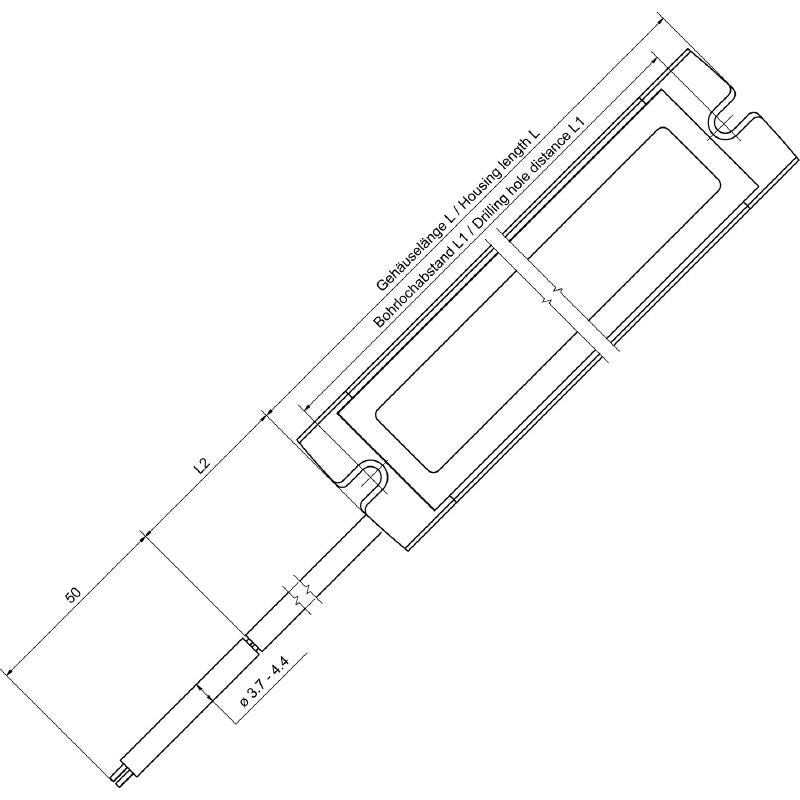

| Drill hole spacing | 845 mm |
| Impact resistance | IK05 |
| Protection degree | IP67 |
