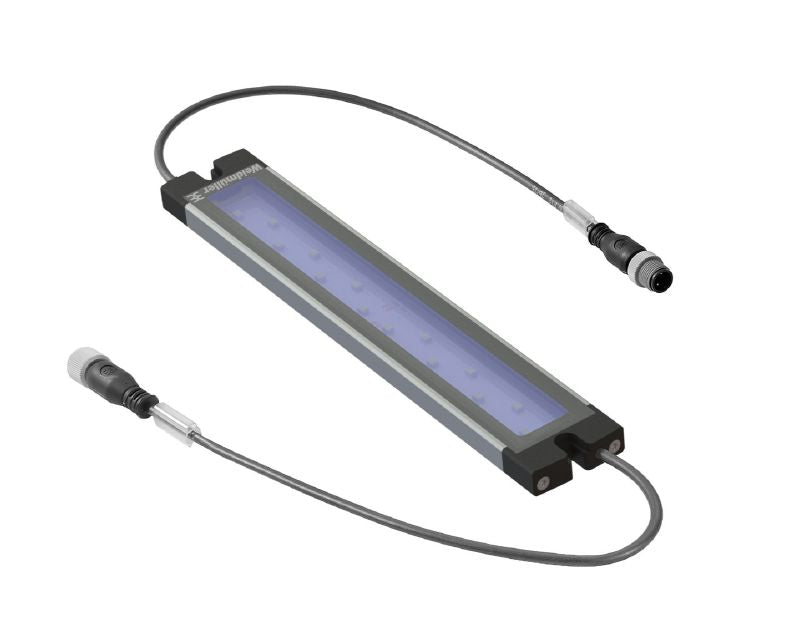

2576970000 - 0.3m PUR Cable, Black, Dimmable, 14 LEDs, IK05, IP67

Description:

Introducing the WIL-LBXXXX-W450D024-240SXX03BM12GM12G, a high-performance product that meets ROHS regulations, certified under number E354496 by UL This 03-meter cable features a core cross-section of 034 mm², crafted from durable PUR with an elegant black sheathing Engineered for a broad temperature range of -20 to 60°C, it includes a pre-assembled connection configured from male straight to female straight, housing four poles.

It operates at a rated voltage of 24 V DC with a current of 0317 A and is capable of providing 76 W of dimmable power Equipped with 14 blue LEDs, this product delivers an impressive luminous output of 98 lumens at an emitting angle of 40° Its operational lifetime reaches up to 60,000 hours, with a robust impact resistance rating of IK05 and an IP67 protection degree, ensuring resilience in challenging environments.

Furthermore, the product aligns with various ETIM and ECLASS classifications, making it an ideal choice for those seeking reliability and performance.

Features and Benefits:

•RoHS compliant with exemption.

•Dimmable function.

•Rectangular LED module shape.

•Screw mounting type.

•Pre-assembled cable connection.

•Impact resistance rated IK05.

•Protection rating IP67.

Specifications:
