Description:
Experience reliable performance with this cable, which is compliant with RoHS standards and ready for UL certification (E354496) Spanning a length of 3 meters, it features a core cross-section of 034 mm² and functions efficiently within temperatures ranging from -20 to 60 degrees Celsius Crafted with a durable PUR outer material and finished in a sophisticated black, the wire's housing is made of hard anodized aluminum for added strength.

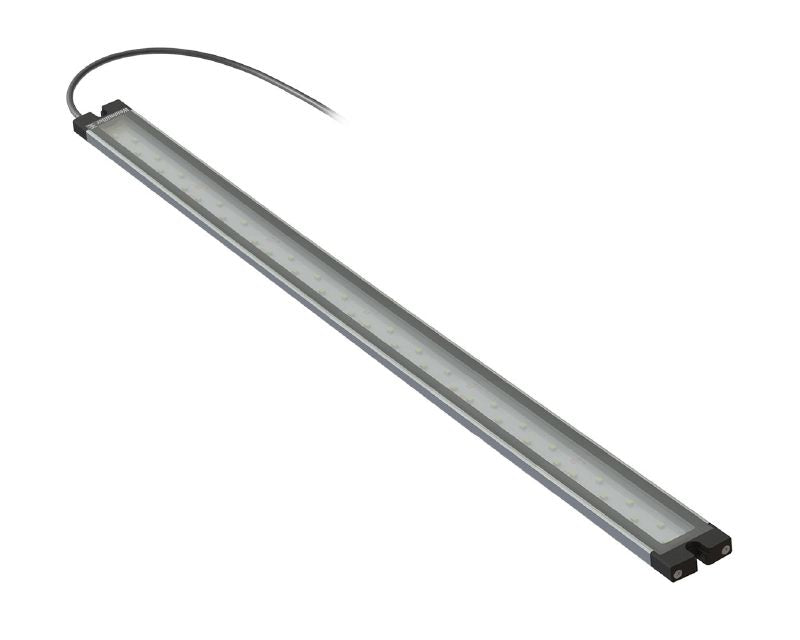

This product comes pre-assembled with a rectangular LED module and is designed for easy screw mounting, boasting an impressive lifespan of 60,000 hours.
Features and Benefits:
•Compliant with RoHS exemption 6c.
•Rated voltage of 24 V DC and rated current of 0.924 A.
•Power capacity of 22.2 W and is dimmable.
•Emits neutral white light at 4000K with a light current of 2,718 lm.
•Has an emitting angle of 40° with an illumination level of 830 lux.
•Built to achieve an impact resistance rating of IK05 and a protection degree of IP67.
•General use in electronic equipment on rolling stock.
•Pre-assembled connection for LED applications.
Specifications:

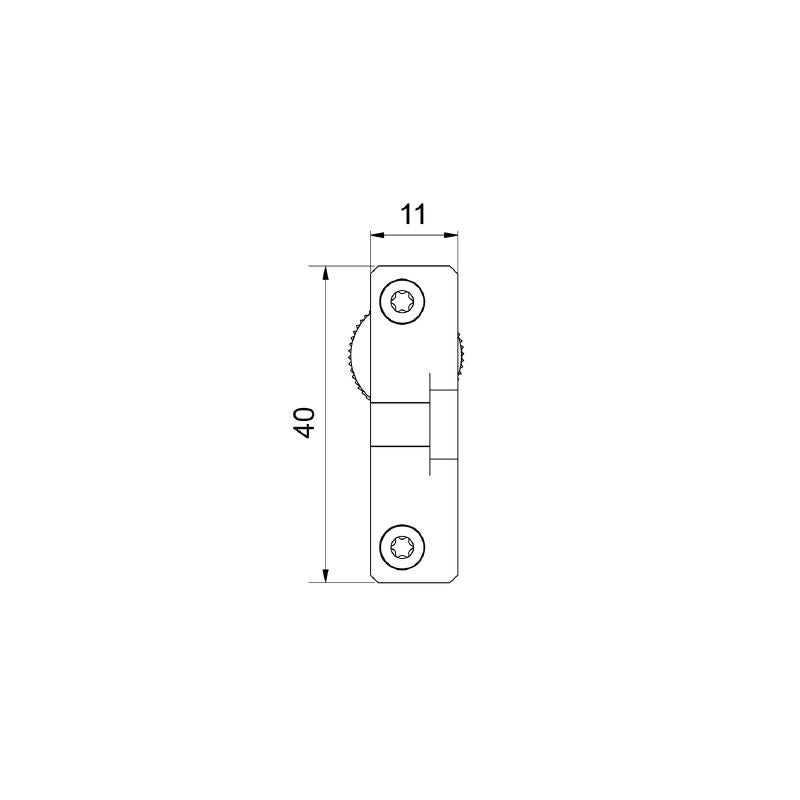

| Depth | 40 mm |
| Height | 8 mm |
| Width | 655 mm |

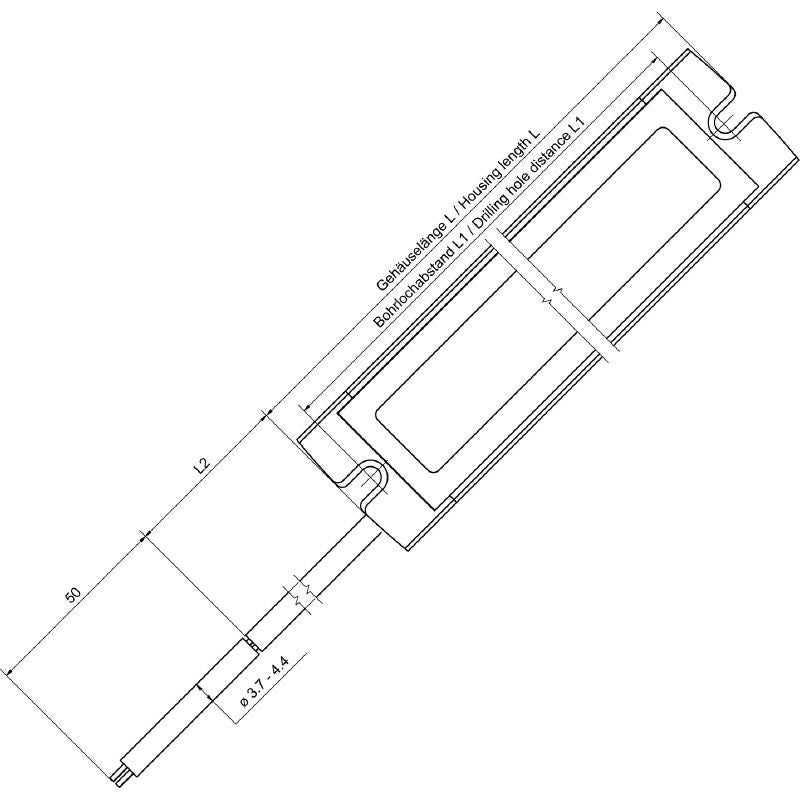

| Drill hole spacing | 640 mm |
| Number of LEDs | 42 |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| LED Modul is attachable | no |
| Connection data | Pin 4 (Strand: black) controls white LED, Pin 3 (Strand: blue) |
| Operating temperature | -20 - 60°C |
| Electric data | Rated voltage 24 V DC, Rated current 0.924 A, Power 22.2 W |
| Impact resistance | IK05 |
| Protection degree | IP67 |
| Operating life | 60.000 h |
