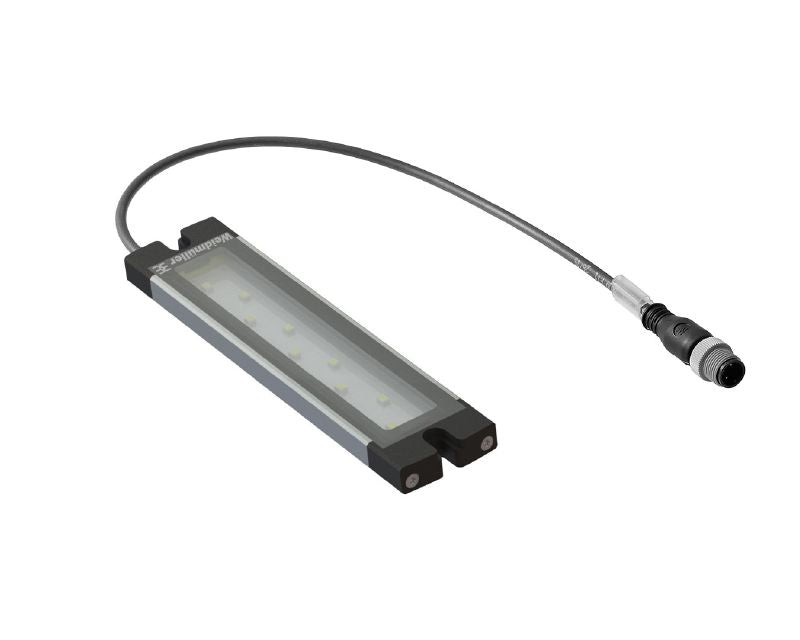

2762040000 - 0.3m Rectangular LED Module, 4000K, 453 Lumens
2762040000 - 0.3m Rectangular LED Module, 4000K, 453 Lumens
SKU: SKU: 2762040000 Download PDF
- 2762040000 - 0.3m Rectangular LED Module, 4000K, 453 Lumens
- 2762040000 - 0.3m Rectangular LED Module, 4000K, 453 Lumens
Couldn't load pickup availability
Description:
Illuminate your space with this pre-assembled LED module, perfectly designed for a variety of uses thanks to its rectangular shape Operating at a 24 V DC voltage and drawing a rated current of 0158 A, it delivers an efficient 38 W power output This module houses 7 LEDs that create a pleasant neutral white light with a temperature of 4000K With an impressive light output of 453 lumens and a 40-degree emission angle, it achieves a brightness level of 148 lux.
You can expect a lifespan of approximately 60,000 hours from this reliable product Additionally, it meets NEC Class 2 standards, making it suitable for use in electronic equipment on rolling stock.
Features and Benefits:
•Dimmable functionality.
•Screw mounting type.
•Impact resistance rated at IK05.
•Protection degree IP67 for dust and water resistance.
•Housing made of hard anodised aluminium.
Specifications:
| Operating temperature | -20 - 60°C |
| Cable Material | PUR |
| Cable length | 0.3 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.158 A |
| Number of LEDs | 7 |
| Luminosity | 130 cd |
| Light current | 453 lm |
| Emitting angle | 40 ° |
| Illumination level | 148 lux |
| Operating life | 60,000 h |

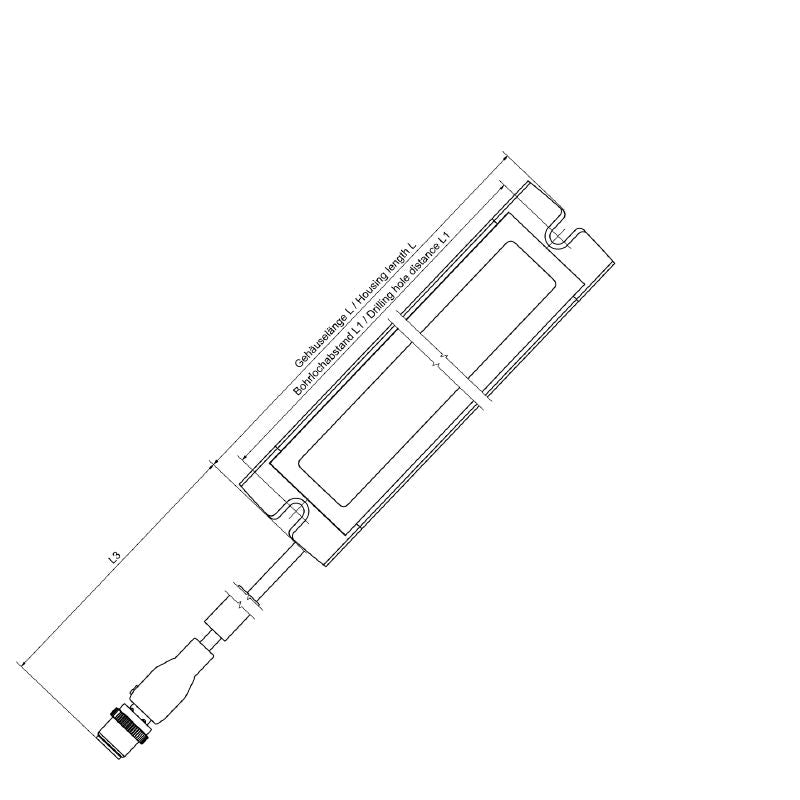

| Drill hole spacing | 130 mm |
| Tightening torque | 0.8 Nm |
| Connection thread | M12 |
| Number of poles | 2 |
| LED Modul is attachable | no |
| Version | pin, straight |
| Coding | A-coded |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Material of LED cover | ESG |
| Material of end caps | PBT |
| Threaded ring material | PA |
| Environmental Product Compliance | Compliant with exemption; RoHS Exemption 6c |
| REACH SVHC | Lead 7439-92-1 |
