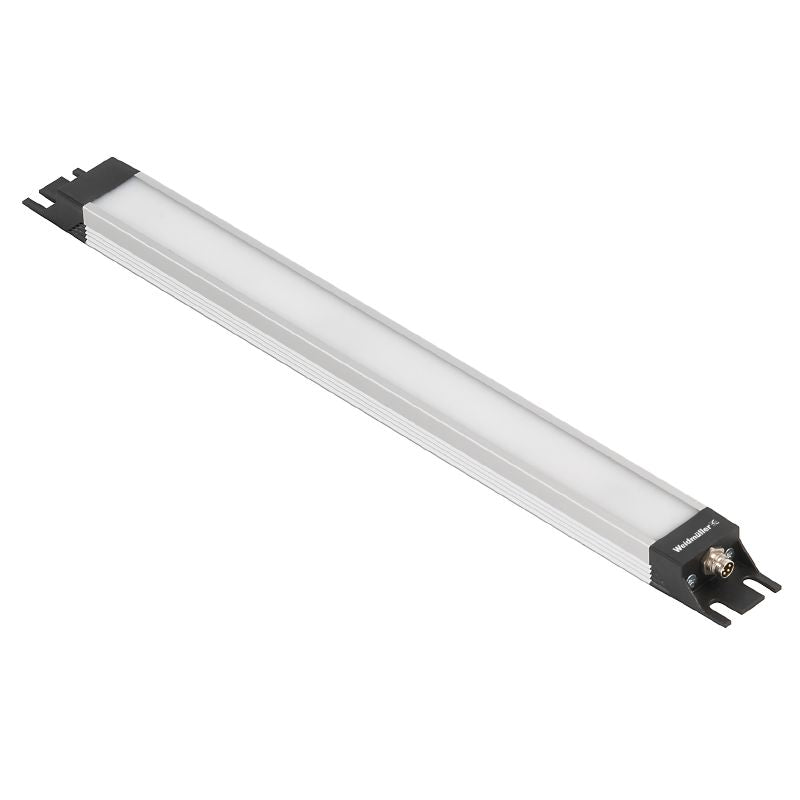

2900110000 - Dimmable Anodised Aluminium LED Module for 12-30V DC
2900110000 - Dimmable Anodised Aluminium LED Module for 12-30V DC
SKU: SKU: 2900110000 Download PDF
- 2900110000 - Dimmable Anodised Aluminium LED Module for 12-30V DC
- 2900110000 - Dimmable Anodised Aluminium LED Module for 12-30V DC
Couldn't load pickup availability
Description:
Introducing a durable product crafted with hard anodised aluminium housing, ensuring a sturdy and reliable structure This device operates seamlessly within a temperature spectrum of -20 to 70°C, making it versatile for various environments It complies with RoHS regulations and meets environmental standards, with a noted exemption
One of its standout features is the dimmable capability, paired with a power output of 6.
8 W The product utilizes a pin connection system consisting of four poles, identified by code A Among these connections, you’ll find a white LED control suitable for 12-30V DC, along with a designated GND connection.
Features and Benefits:
•Operates at rated voltage of 12…30 V DC.
•Dimmable with stepless dimming capability.
•Illuminates at 571 lumens with a light colour temperature of 6500K.
•Long operating life of 60,000 hours.
•Protection rated at IP69K.
Specifications:

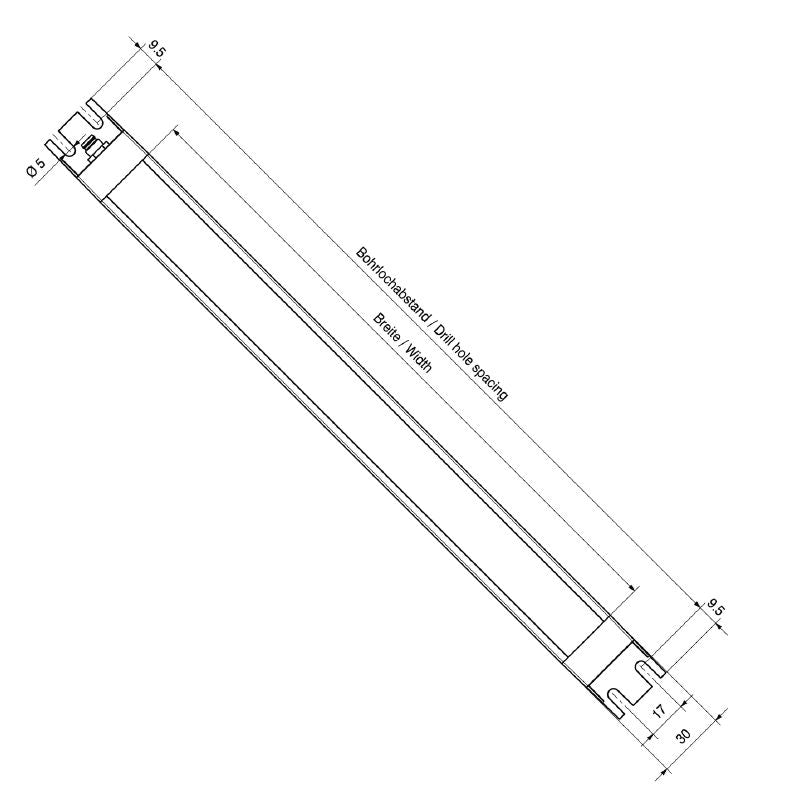

| Depth | 30 mm |
| Height | 17.5 mm |
| Width | 280 mm |
| Net weight | 293 g |
| Operating temperature | -20 - 70°C |

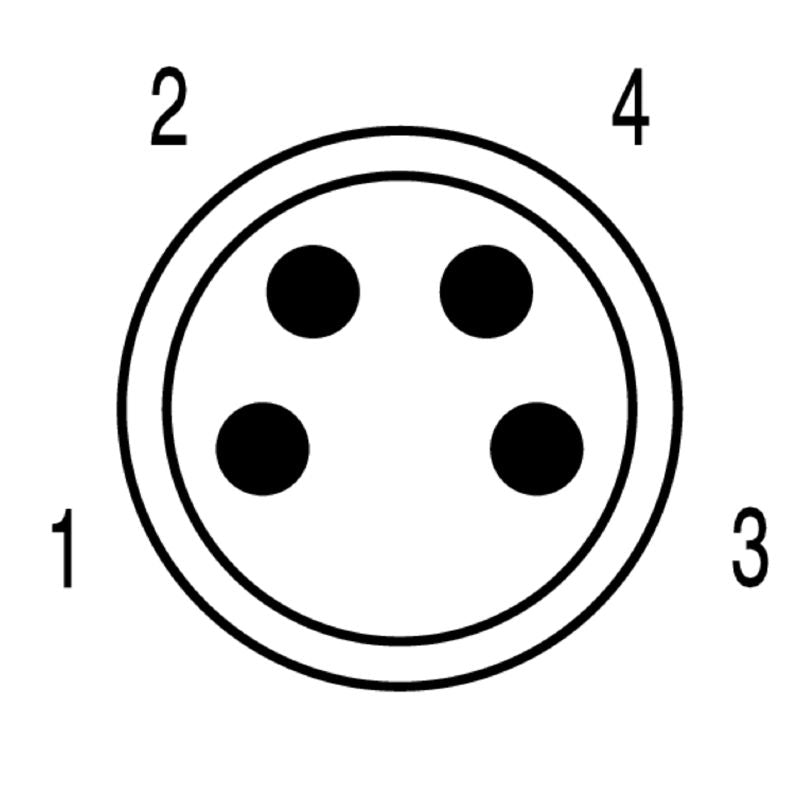

| Connection data | {'Version': 'pin, straight', 'Number of poles': '4', 'Coding': 'A-coded', 'Connection thread': 'M8', 'Tightening torque': '0.6 Nm', 'Wiring': 'Pin 1: control white LED 12-30V DC; Pin 2: dimmable 1.2-10V DC; Pin 3: GND(-); Pin 4: NC'} |
| Rated voltage | 12…30 V DC |
| Power | 6.8 W |
| Electronic equipment on rolling stock | No |
| Shape of the LED module | Round |
| Type of connection | Pin connector |
| Light current | 571 lm |
| Emitting angle | 120 ° |
| Illumination level | 172 lux |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |
| Drill hole spacing | 336 mm |
| Encapsulation compound | PUR V0 |
