2899210000 - Compact 190mm RoHS Compliant Device, 5700K Light Output
2899210000 - Compact 190mm RoHS Compliant Device, 5700K Light Output
SKU: SKU: 2899210000 Download PDF
- 2899210000 - Compact 190mm RoHS Compliant Device, 5700K Light Output
- 2899210000 - Compact 190mm RoHS Compliant Device, 5700K Light Output
Couldn't load pickup availability
Description:

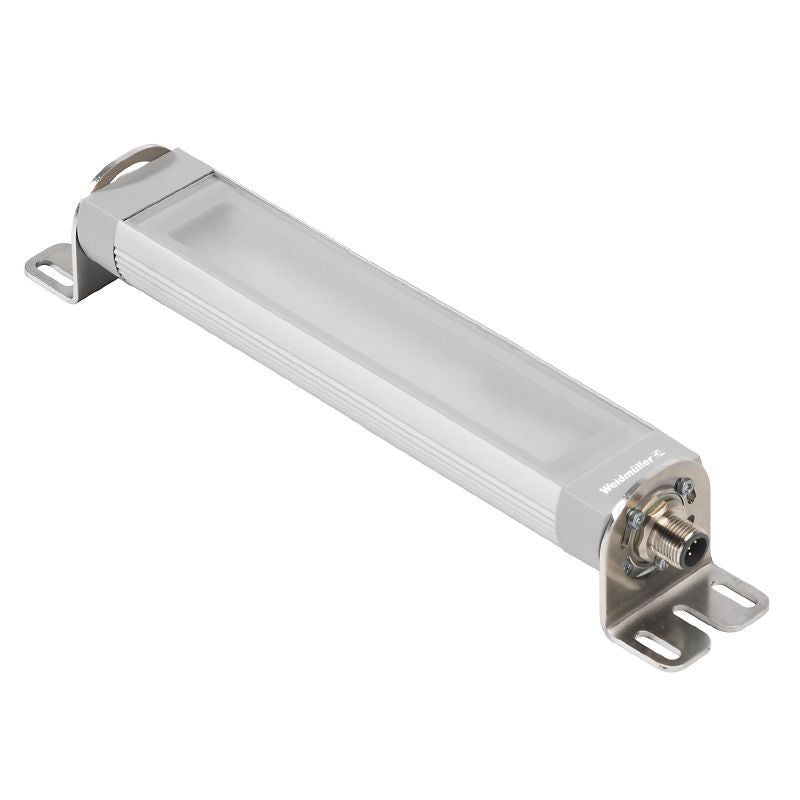

Discover the versatility of the WIL-LXXXX-RXSS-5700-X190-M12X-X0, a compact device compliant with RoHS standards and designed for a multitude of applications Measuring 190 mm in width, 42 mm in height, and 40 mm in depth, this device weighs just 221 g, making it easy to integrate into various environments It operates efficiently in temperatures ranging from -20°C to 45°C, ensuring reliable performance across diverse conditions.
Featuring a 5-pole straight pin connector, it provides seamless connectivity The light output boasts a color temperature of 5700K, delivering a luminous flux of 341 lumens, and casts an illumination angle of 100 degrees, making it an excellent choice for a range of lighting needs.
Features and Benefits:
•Operating life of 60,000 hours.
•Dimmable functionality.
•Protection degree of IP67.
•Hard anodised aluminium housing.
•LED cover made of PMMA.
•Screw mounting type.
Specifications:
| Depth | 40 mm |
| Height | 42 mm |
| Width | 190 mm |
| Rated voltage | 24 V DC |
| Rated current | 137.5 mA |
| Power | 3.3 W |
| Light current | 341 lm |
| Emitting angle | 100 ° |
| Illumination level | 135 lux |
| Type of connection | Pin connector |
| Light colour (CCT) | 5700K |
| Operating temperature | -20 - 45°C |
| Tightening torque | 0.8 Nm |

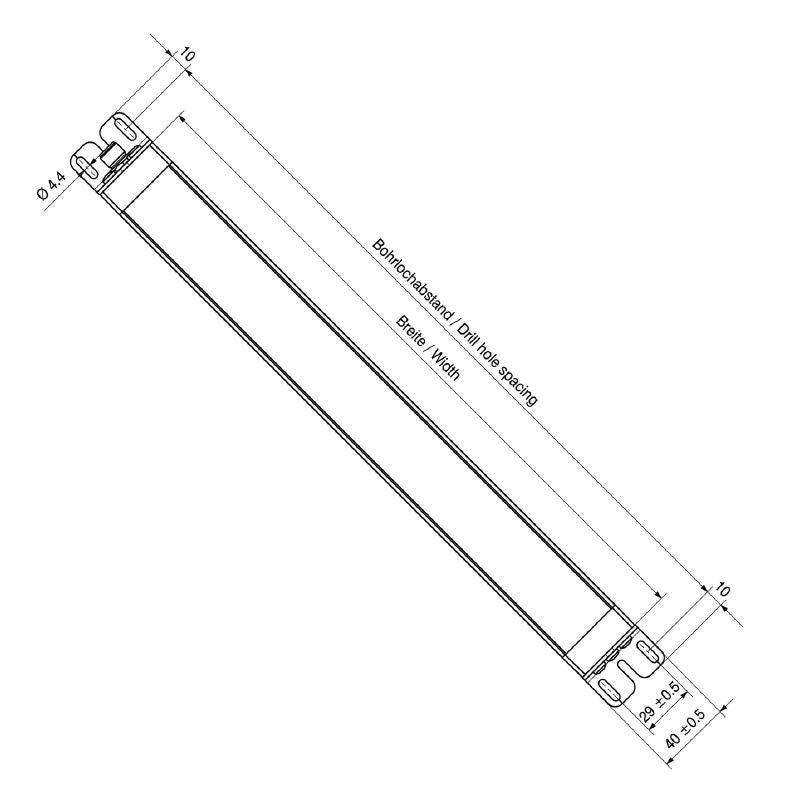

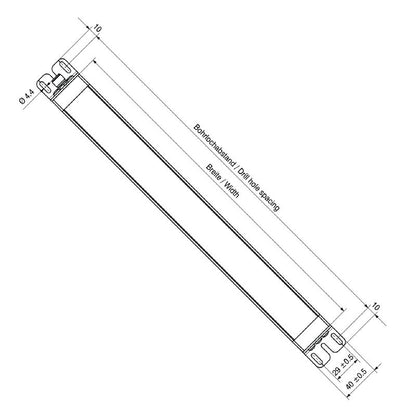

| Drill hole spacing | 220 mm |
| Wiring | Pin 1: control white LED 24V DC, Pin 2: NC, Pin 3: GND(-), Pin 4: NC, Pin 5: NC |
