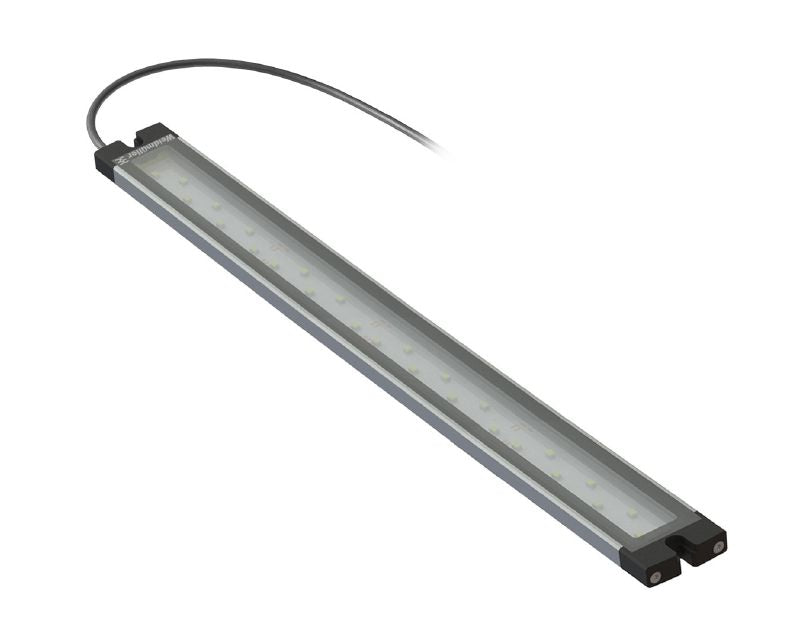

2821210000 - 24V LED Module 3m, 4000K, 1812 Lumens, IP67
2821210000 - 24V LED Module 3m, 4000K, 1812 Lumens, IP67
SKU: SKU: 2821210000 Download PDF
- 2821210000 - 24V LED Module 3m, 4000K, 1812 Lumens, IP67
- 2821210000 - 24V LED Module 3m, 4000K, 1812 Lumens, IP67
Couldn't load pickup availability
Description:
Illuminate your space efficiently with this advanced 24V DC LED module Operating at a current of 0616 A and delivering a power output of 148 W, it features 28 LEDs that produce a neutral white light at a color temperature of 4000K With a luminous flux of 1,812 lumens and a 40-degree beam angle, expect an impressive illumination level of 573 lux Built to last, this module boasts an impressive lifespan of 60,000 hours.

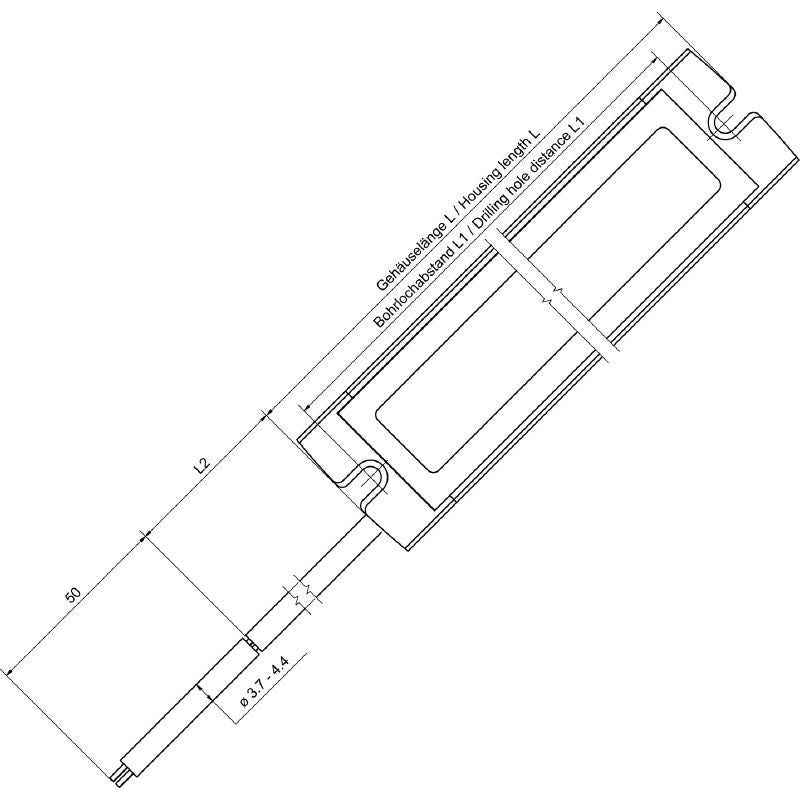

It is designed for easy screw mounting, requiring drill hole spacing of 435 mm With an impact resistance rating of IK05 and an IP67 protection degree, this product offers excellent resistance against dust and water, making it a reliable choice for various applications.
Features and Benefits:
•Dimmable option available.
•Cable length of 3 meters.
•Constructed with PUR material for the cable.
•Housing made of hard anodised aluminium.
•Operating temperature range from -20 to 60°C.
•Classified under NEC Class 2 for power supply usage.
•Electrical equipment unsuitable for rolling stock applications.
•Light module designed for screw mounting.
Specifications:
| Cable Material | PUR |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.616 A |
| Power | 14.8 W |
| Operating life | 60,000 h |
| Shape of the LED module | Rectangular |
| Number of LEDs | 28 |
| Light colour (CCT) | 4000K Neutral white |
| Light current | 1,812 lm |
| Emitting angle | 40 ° |
| Illumination level | 573 lux |
| Type of mounting | Screw mounting |
| Impact resistance | IK05 |
| Protection degree | IP67 |
| Cable end | open |
| Coding | A-coded |
| Connection thread | without |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
