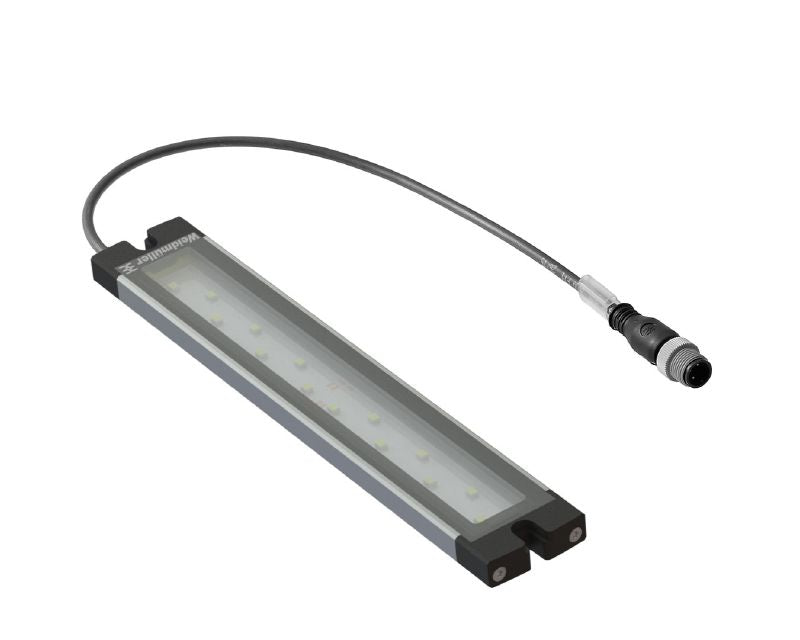

2633830000 - 0.3m LED Module, 831 Lumens, 24V DC, IP67 Waterproof
2633830000 - 0.3m LED Module, 831 Lumens, 24V DC, IP67 Waterproof
SKU: SKU: 2633830000
- 2633830000 - 0.3m LED Module, 831 Lumens, 24V DC, IP67 Waterproof
- 2633830000 - 0.3m LED Module, 831 Lumens, 24V DC, IP67 Waterproof
Couldn't load pickup availability
Description:

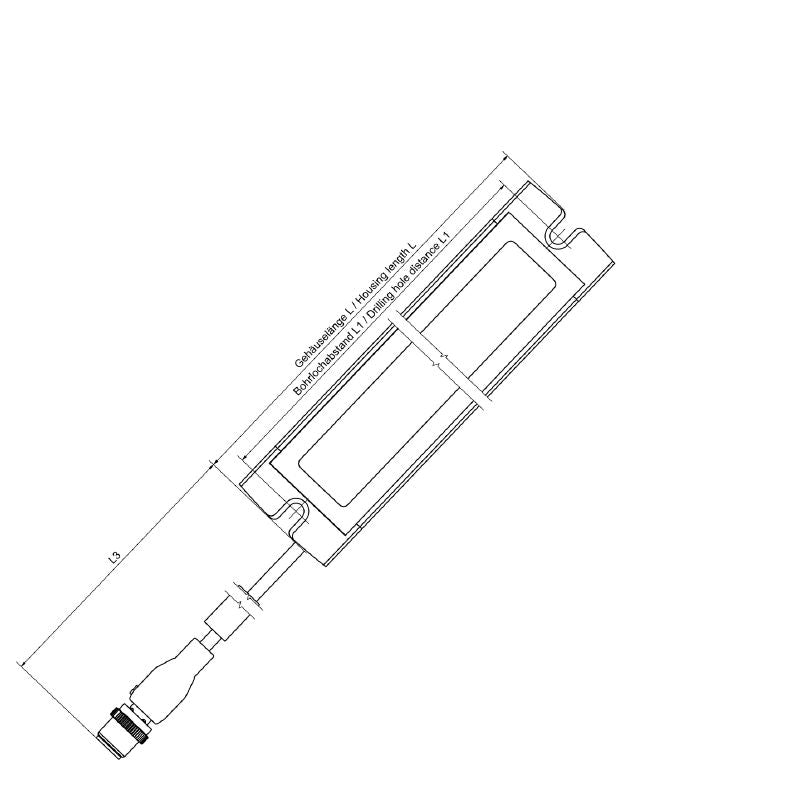

Illuminate your space efficiently with this advanced LED module, operating at a voltage of 24V DC and a current of 031A, yielding a power output of 75W It casts a warm white glow with a color temperature of 2700K and an impressive brightness of 831 lumens Built with 14 durable LEDs, this module utilizes a 40-degree emission angle for optimal lighting Installation is straightforward, thanks to the screw-mounting design, which features a drill hole spacing of 225mm.
Engineered for longevity, it boasts an operational lifespan of 60,000 hours, is impact-resistant with an IK05 rating, and is fully sealed against dust and water with an IP67 rating Complying with RoHS standards, the module comes equipped with a robust hard anodised aluminium housing and a black PUR cable for enhanced durability.
Features and Benefits:
•Warm white light color at 2700K.
•IP67 protection degree for dust and water resistance.
•Long operating life of 60,000 hours.
•Dimmable functionality.
•Impact resistance classified as IK05.
•Easy installation with screw mounting.
•Pre-assembled cable type for convenience.
Specifications:
| Operating temperature | -20 - 60°C |
| Cable length | 0.3 m |
| Core cross-section | 0.34 mm² |
| Number of poles | 2 |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Light current | 831 lm |
| Emitting angle | 40 ° |
| Illumination level | 272 lux |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Housing main material | hard anodised aluminium |
| Material of LED cover | ESG |
| Threaded ring material | PA |
| Material of end caps | PBT |
| Recommended class according to UL for use of an power supply | NEC Class 2 |
