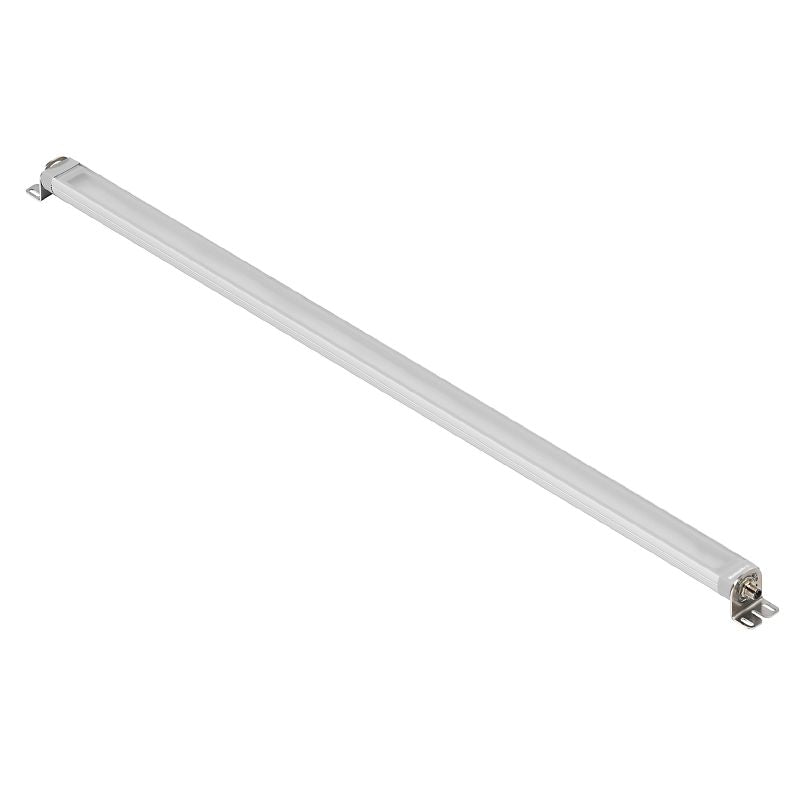

2899300000 - 1040mm LED Connector, RoHS & UL Certified, IP67 Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

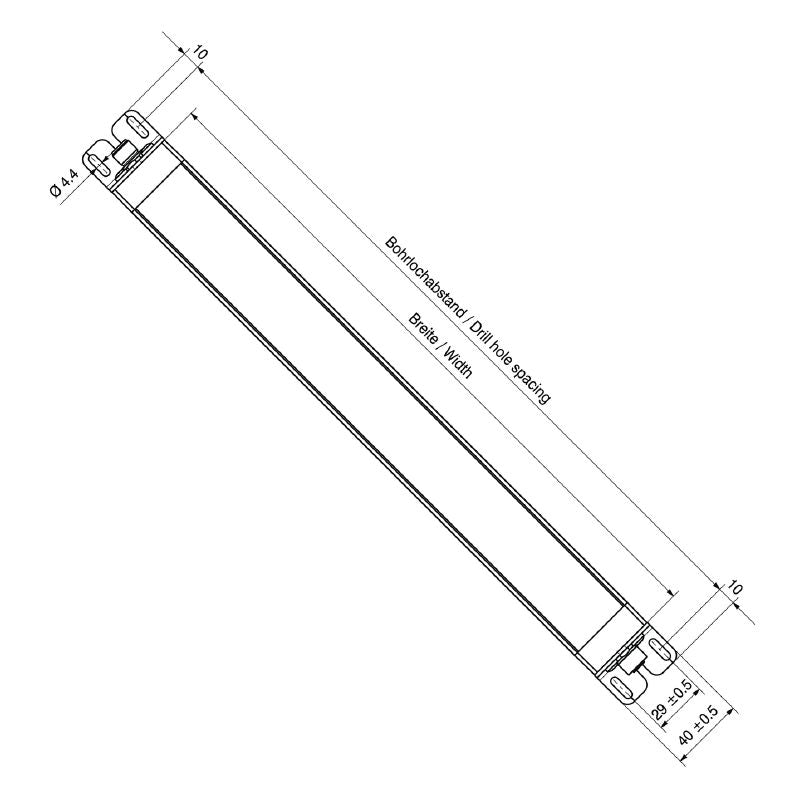

Introducing a robust connector crafted from hard anodized aluminum, designed to meet your connectivity needs with reliability This product is compliant with RoHS standards and carries UL certification for added assurance Measuring 1,040 mm in width, 42 mm in height, and 40 mm in depth, it operates efficiently in temperatures ranging from -20 to 45 degrees Celsius The connector supports the integration of up to four LED modules, functioning at a voltage of 24 V DC while accommodating a rated current of 1108.

3 mA and delivering a power output of 266 W With a color temperature of 5700K, it emits a luminous output of 2,735 lumens, achieving an illumination level of 969 lux The installation is made easy with a screw mounting type, and it boasts an IP67 protection rating, ensuring durability in various environments This connector is a perfect choice for your lighting solutions.

Features and Benefits:

•Connects up to 4 attachable LED modules.

•Dimmable with a rated voltage of 24 V DC.

•Long operating life of 60,000 hours.

•Light emitting angle of 100 degrees.

•Made from hard anodized aluminum.

Specifications:
