2732910000 - 5m LED Module Cable, RoHS Compliant, Pre-Assembled
2732910000 - 5m LED Module Cable, RoHS Compliant, Pre-Assembled
SKU: SKU: 2732910000 Download PDF
- 2732910000 - 5m LED Module Cable, RoHS Compliant, Pre-Assembled
- 2732910000 - 5m LED Module Cable, RoHS Compliant, Pre-Assembled
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile LED module cable measuring 5 meters in length, perfect for various applications This cable is engineered to function effectively in temperatures ranging from -20 to 60 degrees Celsius, making it suitable for diverse environments that meet RoHS standards and their exemptions It comes as a pre-assembled connection, without an attachable LED module, allowing for easy and straightforward use.
Features and Benefits:
•Dimmable functionality.
•Screw mounting type.
•IP67 protection degree for water and dust resistance.
•Operating life of 60,000 hours.
•Impact resistance rated IK05.
•Light color at 4000K, neutral white.
•High luminosity of 260 cd and light current of 906 lm.
Specifications:
| Operating temperature | -20 - 60°C |
| Cable Material | PUR |
| Sheathing color | black |
| Housing main material | hard anodised aluminium |
| Cable length | 5 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.308 A |
| Power | 7.4 W |
| Number of poles | 2 |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 14 |
| Luminosity | 260 cd |
| Light current | 906 lm |
| Emitting angle | 40° |
| Illumination level | 297 lux |

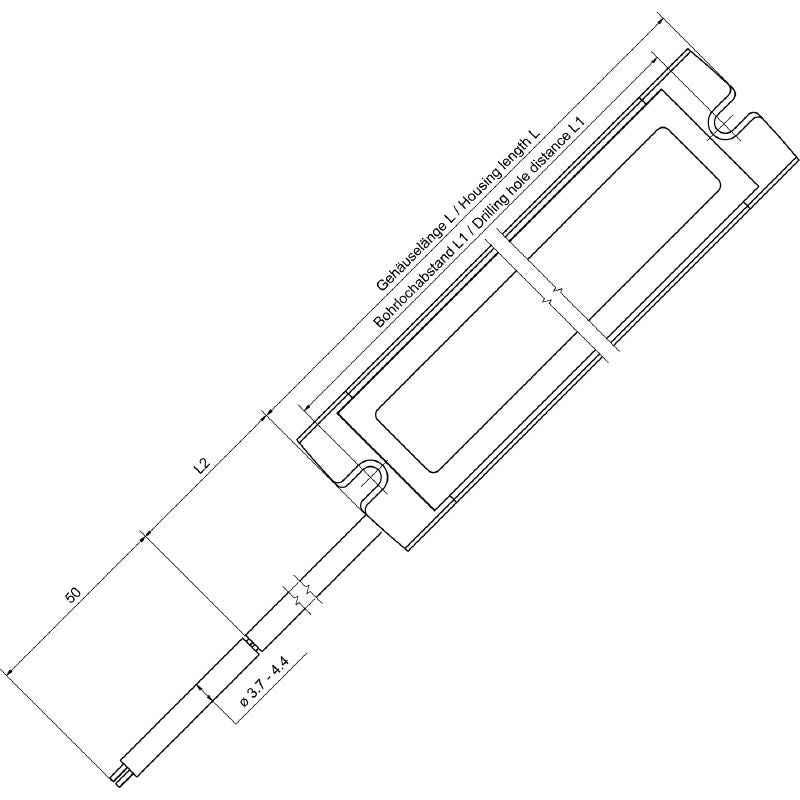

| Drill hole spacing | 225 mm |
| Efficiency class | F |
| Material of LED cover | ESG |
| Material of end caps | PBT |
