2732940000 - 5m PUR Black Cable, 24V DC, Dimmable, 60000H Lifespan

2732940000 - 5m PUR Black Cable, 24V DC, Dimmable, 60000H Lifespan

SKU: SKU: 2732940000   Download PDF

Select a Variant:
  • 2732940000 - 5m PUR Black Cable, 24V DC, Dimmable, 60000H Lifespan
Qty:
Regular price Now $222.60   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $222.60 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

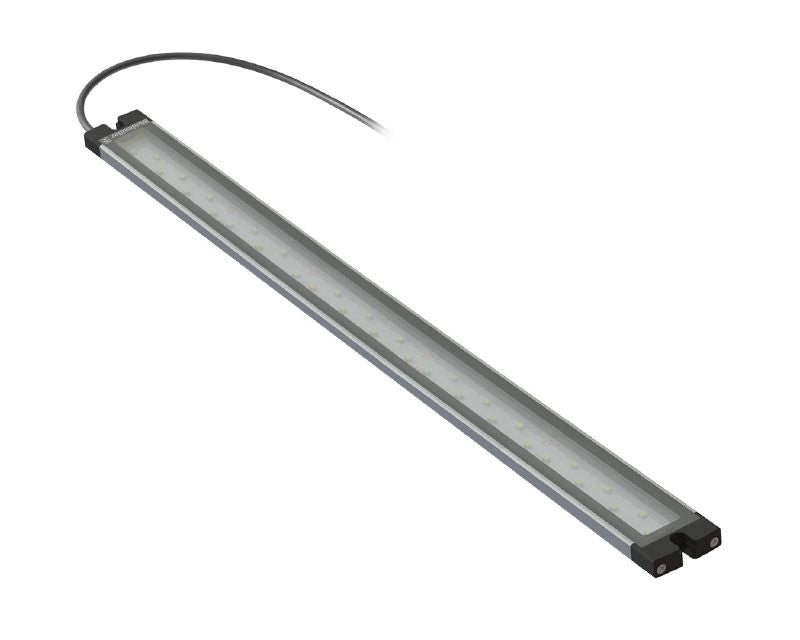

Introducing a versatile 5-meter cable tailored for various applications, featuring a sleek black design This cable performs seamlessly within a temperature range of -20°C to 60°C and complies fully with RoHS regulations Crafted from high-quality PUR material and encased in durable hard anodized aluminum, it includes two poles suitable for a rated voltage of 24V DC and a current of 077A, delivering an overall power output of 18.

5W The cable emits a neutral white light at 4000K, boasting a luminosity of 650 cd, and offers dimmable functionality, with an impressive lifespan of up to 60,000 hours.

Features and Benefits:

    •Includes a socket without connection threads.

    •Pre-assembled for ease of use.

    •Resistant to water with protection degree IP67.

    •Helps achieve energy efficiency as classified per EU Directive No. 874/2012.

    •Easy to mount with screw mounting mechanism.

Specifications:

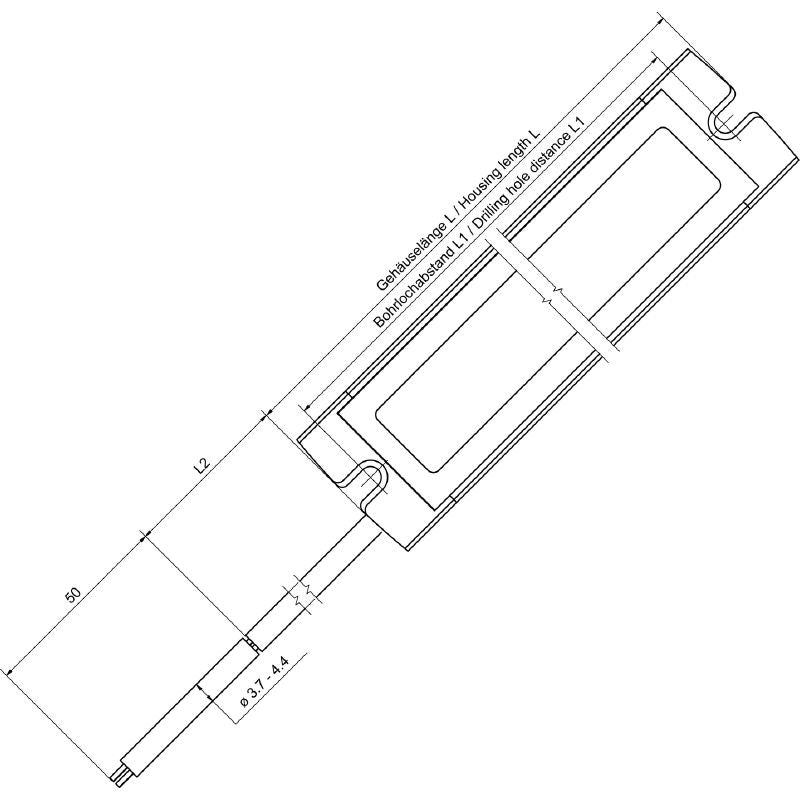

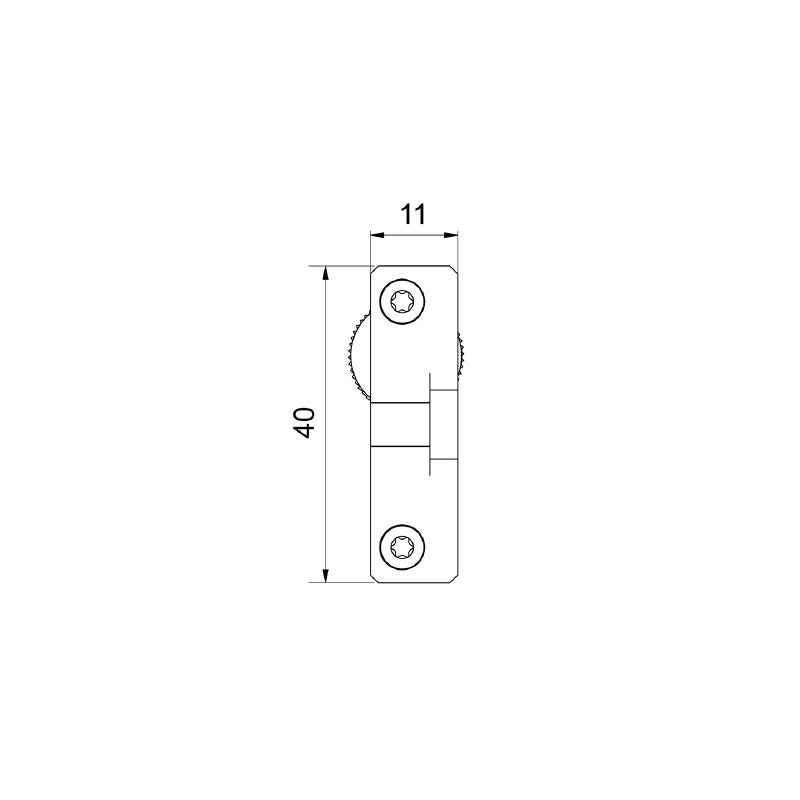

 Depth 40 mm
 Height 8 mm
 Width 555 mm
 Operating temperature -20 - 60°C
 Cable Material PUR
 Sheathing colour black
 Housing main material hard anodised aluminium
 Cable length 5 m
 Core cross-section 0.34 mm²
 Rated voltage 24 V DC
 Rated current 0.77 A
 Power 18.5 W
 Dimmable Yes
 Shape of the LED module Rectangular
 Type of connection Pre-assembled cable
 Number of LEDs 35
 Light colour (CCT) 4000K Neutral white
 Luminosity 650 cd
 Light current 2,265 lm
 Emitting angle 40°
 Illumination level 705 lux
 Operating life 60,000 h
 Type of mounting Screw mounting
 Drill hole spacing 540 mm
 Impact resistance IK05
 Efficiency class F
 Material of LED cover ESG
 Material of end caps PBT
 UL File Number E354496
 ETIM 6.0 EC000996
 ECLASS 9.1 27-11-06-35
