2617810000 - 0.3m LED Module Cable, IK05 Impact Resistant, 4000K Light
2617810000 - 0.3m LED Module Cable, IK05 Impact Resistant, 4000K Light
SKU: SKU: 2617810000 Download PDF
- 2617810000 - 0.3m LED Module Cable, IK05 Impact Resistant, 4000K Light
- 2617810000 - 0.3m LED Module Cable, IK05 Impact Resistant, 4000K Light
Couldn't load pickup availability
Description:

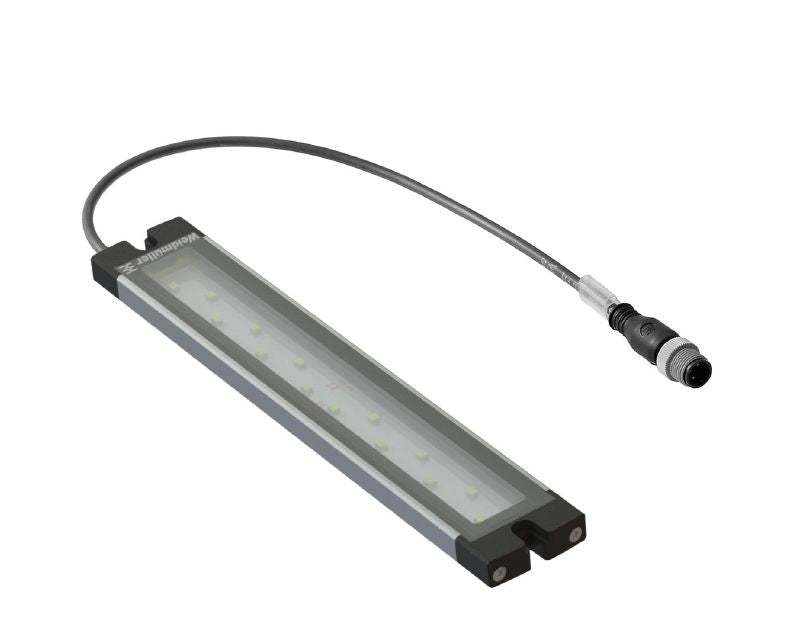

Optimize your LED setup with this pre-assembled cable designed specifically for LED modules Capable of functioning in temperatures ranging from -30°C to 60°C, this cable comes in a sleek black color and is crafted from durable PUR material Its robust rectangular housing is fashioned from hard anodized aluminum, ensuring a long-lasting use This setup supports 14 LEDs that emit a bright light at 4000K, boasting an impressive luminosity of 260 cd and a light output of 906 lm.

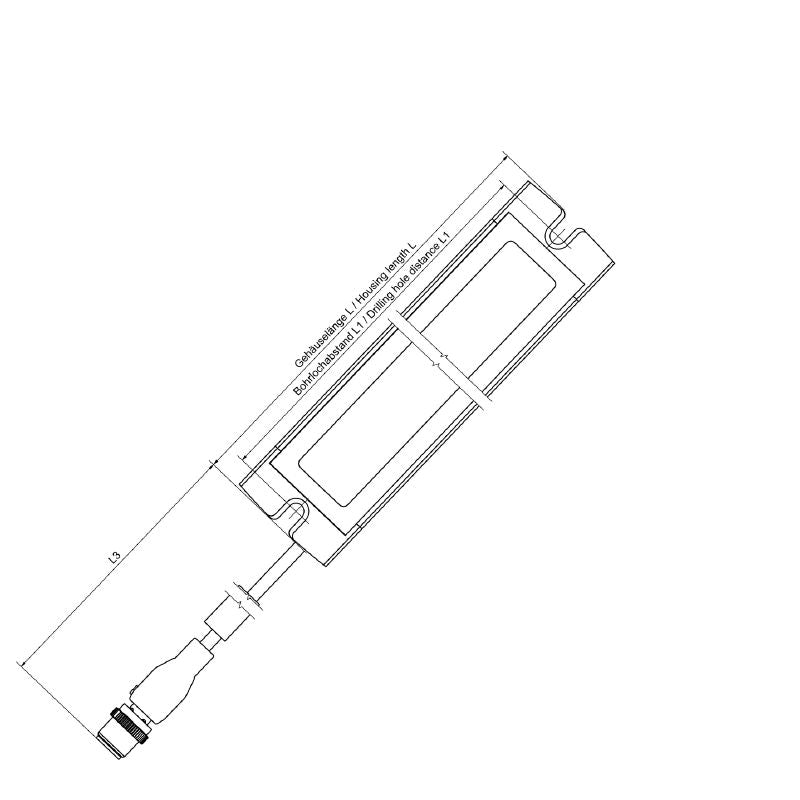

Easy installation is achieved through screw mounting, with a drill hole spacing of 225 mm and an impact resistance rating of IK05 to withstand various environments.
Features and Benefits:
•Dimmable functionality.
•IP67 protection degree.
•Recommended for NEC Class 2 power supply use.
•Operating life of 60,000 hours.
•Light emission angle of 40°.
•Illumination level of 297 lux.
Specifications:
| Cable Length | 0.3 m |
| Core Cross-section | 0.34 mm² |
| Rated Voltage | 24 V DC |
| Rated Current | 0.308 A |
| Power | 7.4 W |
| Connection thread | M12 |
| Tightening torque | 0.8 Nm |
| Number of poles | 2 |
| Shape of the LED module | Rectangular |
| Number of LEDs | 14 |
| Light Colour (CCT) | 4000K |
| Material of LED cover | ESG |
| Threaded ring material | PA |
| Material of end caps | PBT |
